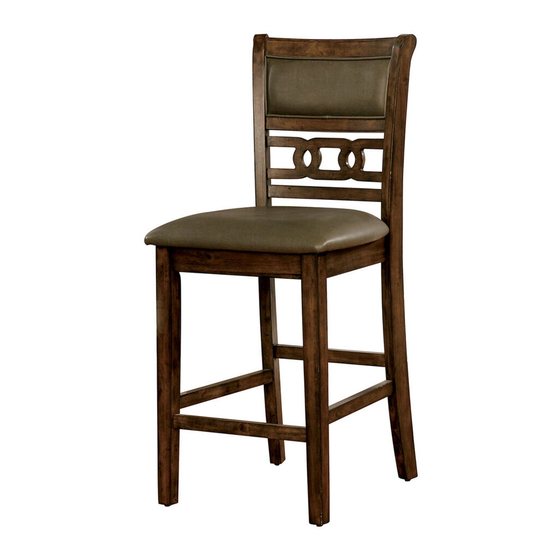

Furniture of America CM3023PC-2PK Assembly Instructions

Download this manual

For more information contact our team: service.ec@foagroup.com

ASSEMBLY RATING

The Assembly Rating is a 5-point system that

shows the degree of effort needed in

assembling a specific product (with 1 being

easy and 5 being difficult). For some

products, two persons are recommended.

EASY

Assembly Instructions

CM3023PC-2PK

DIFFICULT

Tools Required For Assembly:

Allen Wrench

Phillips Screwdriver

Page 1 of 5

(Included)

(Not Included)

Rev: 18-05-17

Need help?

Do you have a question about the CM3023PC-2PK and is the answer not in the manual?

Page 1 Assembly Instructions For more information contact our team: service.ec@foagroup.com CM3023PC-2PK ASSEMBLY RATING Tools Required For Assembly: The Assembly Rating is a 5-point system that shows the degree of effort needed in Allen Wrench assembling a specific product (with 1 being (Included) easy and 5 being difficult).
Page 2 LOOSEN OVER TIME AND MAY CAUSE THE FURNITURE TO BE WOBBLY AND UNABLE TO SUPPORT ITS INTENDED WEIGHT CAPACITY. THIS MAY LEAD TO COLLAPSE AND MAY CAUSE SERIOUS INJURY. FAILURE TO FOLLOW THE GUIDELINES ABOVE MAY RESULT IN INJURY AND/OR PROPERTY DAMAGE. FURNITURE OF AMERICA.ALL RIGHTS RESERVED. Page 2 of 5...
Page 3 Before you begin, please read Page 2 of "Assembly and Care Advice". And remember, do not tighten until each step is completed or instructed. #A x 2pcs x 2 #1 x 1pc x 2 Bolt Ø1/4" x 1-5/8" Chair Back #B x 4pcs x 2 #2 x 1pc x 2 Bolt Ø1/4"...
Page 4 Align seat (#2) to the holes of the chairback (#1), then secure the middle holes by using bolts (#A) with washers (#D,E). #A x 2pcs #D x 2pcs #E x 2pcs DO NOT FULLY TIGHTEN ALL BOLTS AND SCREWS UNTIL ASSEMBLY IS COMPLETED.
Page 5 1) Align front legs (#3R/L) to the seat (#2), then secure by using bolts (#B) with washers (#D,E). Make sure bolts (#B) is very loose. #B x 4pcs #D x 4pcs #E x 4pcs 2) Align side stretchers (#4R/L) and front stretcher (#5) to the gaps of the front legs (#3R/L).
