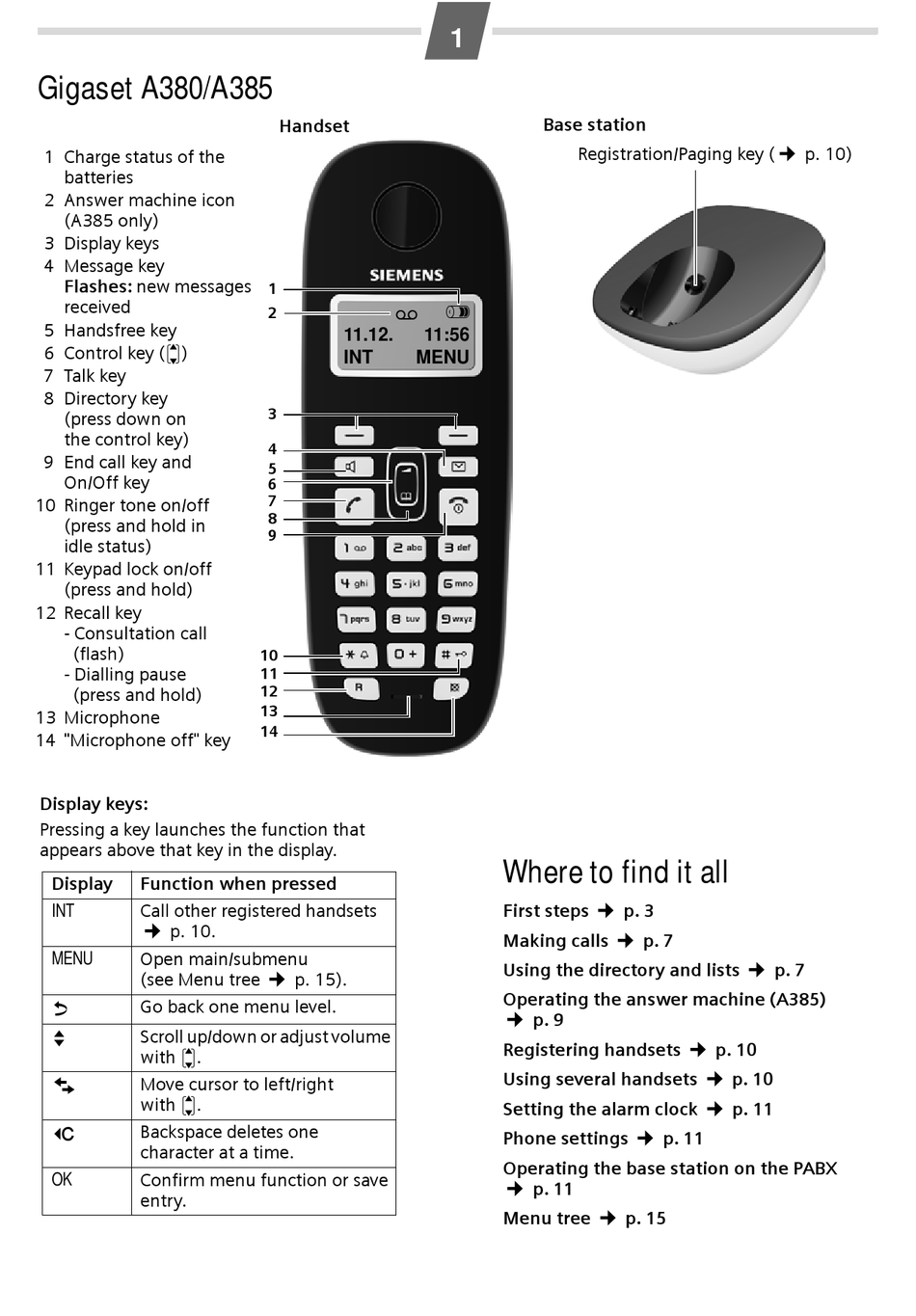

Gigaset A380/A385
1 Charge status of the
batteries
2 Answer machine icon
(A385 only)
3 Display keys
4 Message key
Flashes: new messages
received
5 Handsfree key
6 Control key (u)
7 Talk key
8 Directory key
(press down on
the control key)
9 End call key and
On/Off key
10 Ringer tone on/off
(press and hold in
idle status)
11 Keypad lock on/off
(press and hold)
12 Recall key
- Consultation call
(flash)
- Dialling pause
(press and hold)
13 Microphone
14 "Microphone off" key
Display keys:
Pressing a key launches the function that
appears above that key in the display.
Display
Function when pressed
Call other registered handsets
INT
¢
p. 10.
Open main/submenu
MENU
(see Menu tree
"
Go back one menu level.
U
Scroll up/down or adjust volume
with u.
T
Move cursor to left/right
with u.
˜
Backspace deletes one
character at a time.
Confirm menu function or save
OK
entry.
Handset
1
±
2
11.12.
11:56
INT
MENU
3
4
5
6
7
8
9
10
11
12
13
14
¢
p. 15).
1
Base station
Registration/Paging key (
V
Where to find it all
¢
First steps
¢
Making calls
Using the directory and lists
Operating the answer machine (A385)
¢
p. 9
Registering handsets
Using several handsets
Setting the alarm clock
Phone settings
Operating the base station on the PABX
¢
p. 11
¢
Menu tree
¢
p. 3
p. 7
¢
p. 7
¢
p. 10
¢
p. 10
¢
p. 11
¢
p. 11
p. 15
p. 10)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the A380 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Gigaset A380

Summary of Contents for Gigaset A380

  • Page 1 Gigaset A380/A385 Base station Handset ¢ Registration/Paging key ( p. 10) 1 Charge status of the batteries 2 Answer machine icon (A385 only) 3 Display keys 4 Message key Flashes: new messages ± received 5 Handsfree key 11.12. 11:56 6 Control key (u)

  • Page 2: Safety Precautions

    You are helping to protect the environment with potential explosion hazard, e.g. paint shops. your Gigaset A380/A385. Reduced energy consumption If you give your Gigaset to someone else, make ƒ sure you also give them the user guide. Your telephone has an energy-saving adapter plug and uses less energy.

  • Page 3: First Steps

    ◆ Never expose the telephone to the influence of heat sources, direct sunlight or other electrical devices. ◆ Protect your Gigaset from moisture, dust, corrosive liquids and vapours. Connecting the base station ¤ First connect the mains adapter 1. ¤...

  • Page 4: Connecting The Charging Cradle (If Included)

    For example, the batteries could explode. The phone could also malfunction or be dam- aged as a result of using batteries that are not of the recommended type. * Gigaset Communications GmbH is a trademark licensee of Siemens AG.
  • Page 5 ¤ Insert the batteries the right way round. The polarity is indicated in/on the battery compartment. ¤ First insert the battery cover at the top a. ¤ Then press the cover until it clicks into place. If you need to open the battery cover, for instance to replace the batteries, place your fingertip in the cavity on the casing and pull the battery cover...
  • Page 6 Please note ◆ Each key press interrupts the automatic registration. ◆ If automatic registration does not work, the handset will have to be registered ¢ manually ( p. 10). ◆ Only place the handset in the base station or charging cradle that is intended for Initial charging and discharging of the batteries The correct charge level can only be displayed if the batteries are first fully charged and discharged.

  • Page 7: Making Calls

    Making calls Handsfree Making external calls and ending calls Activating while dialling: Enter the number and press the handsfree External calls are calls using the public telephone network. ¢ Switching between earpiece and handsfree (Enter the phone number) mode: The phone number is dialled. (Or you can first During a call and when listening to the answer press and hold [dial tone] and then enter the...

  • Page 8: Last Number Redial List

    Calls list/answer machine (network The following functions can be selected with mailbox) list Save new phone number. New Entry Display the phone number. Show Number An advisory tone sounds and the message key flashes as soon as a new entry appears in the calls Edit or add to the number.

  • Page 9: Setting Up The Answer Machine

    Answer machine list (A385 only) there is a break in speaking of more than 2 seconds. You can use the answer machine list to listen to the messages that are on the answer machine. Playing back or deleting announcements ¢ The answer machine list is displayed as follows: See Menu tree p.

  • Page 10: Locating A Handset ("Paging")

    Remote operation when on the move For automatic registration of handsets to ¢ Gigaset A380/A385, see p. 5. You can check and activate your answer machine Manual registration of handsets to Gigaset A380/ from any other telephone (hotel, pay phone etc.). A385 ¢ ¢ Preconditions: 1.

  • Page 11: Setting The Alarm Clock

    Listening in to an external call Resetting the handset You are conducting an external call. An internal You can reset individual settings and changes that participant can listen in on this call and take part in you have made. Entries in the directory, the calls the conversation (conference).

  • Page 12: Entering Letters/Characters

    If you have any queries about the use of your tele- phone, visit our website at Entering letters/characters www.gigaset.com/customercare for 24-hour support. The table below contains a list Press the relevant key the number of times indi- of common problems and possible solutions.
  • Page 13 Country-specific requirements have been reached any time from anywhere. taken into consideration. www.gigaset.com/customercare We, Gigaset Communications GmbH, declare It provides you with 24/7 support for all our that this device meets the essential products. It also provides a list of FAQs and...

  • Page 14: Guarantee Certificate United Kingdom

    Guarantee. manufacturing and/or material faults Insofar as no Guarantee default exists, ◆ within 24 months of purchase, Gigaset Gigaset Communications reserves the Communications shall, at its own option right to charge the customer for replace- and free of charge, either replace the ment or repair.
  • Page 15 Menu tree Your phone has an extensive range of features. As an alternative to selecting functions using the These are offered in the form of menus. buttons, you can also enter the digit combination that is in front of the function in the To select a function while the phone is in idle sta- menu tree.
  • Page 16 © Gigaset Communications GmbH 2009 Gigaset Communications GmbH All rights reserved. Subject to availability. Schlavenhorst 66 Rights of modification reserved. D-46395 Bocholt www.gigaset.com Gigaset Communications GmbH is a trademark This user guide is made from 100% recycled paper. licensee of Siemens AG...
