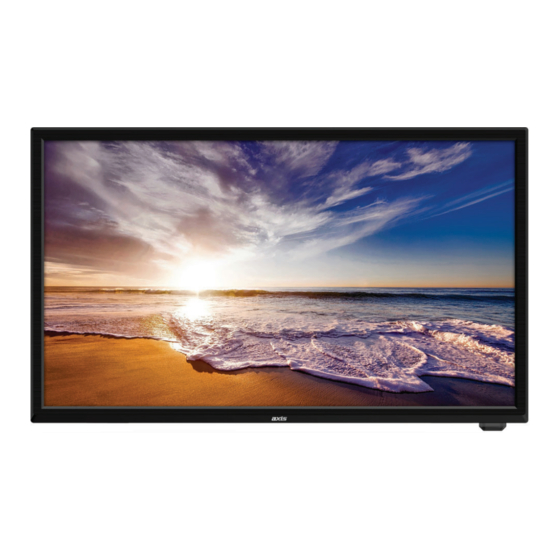

AX1919/AX1922/AX1924/AX1932
PANEL
- Display Size: 19" (48cm) - AX1919
22" (56cm) - AX1922
24" (60cm) - AX1924
32" (81cm) - AX1932
- High Definition LED TV - AX1919/32
- Full High Definition LED TV - AX1922/24
- Aspect Ratio: 16:9
- Resolution: 1366 x 768 - AX1919/32
1920 x 1080 - AX1922/24
- Brightness: 200cd/m2 - AX1919
220cd/m2 - AX1922/24
250cd/m2 - AX1932
- Contrast: 1000:1 - AX1919
3000:1 - AX1922/24
1200:1 - AX1932
- Viewing Angle: 176(H) x 160(V) - AX1919
178(H) x 178(V) - AX1922/32
176(H) x 176(V) - AX1924
POWER
- Input: 9-36V DC / 4A @12V
- Optional AC Adapter: 240V 50Hz/60Hz
- Stand-by Power Consumption: 0.5W
SYSTEM
- MPEG-4 Video System
- OSD: Multi-languages
- Number of Channels: 99
- Comb Filter: 3D
- Teletext: ATV/1000 Pages
- Speakers: 2 x 3W Stereo - AX1919/22/24
2 x 8W Stereo - AX1932
INSTRUCTION MANUAL
12/24V LED DVD/TV
CABINET
- Conformal Coated Circuit Board
- Size: 440 x 50 x 263 mm - AX1919
506 x 49 x 301 mm - AX1922
552 x 54 x 325 mm - AX1924
735 x 82 x 442 mm - AX1932
- 100 x 100 VESA Mounting - AX1919/22/24
- 100 x 200 VESA Mounting - AX1932
- Net weight: 3.4 kg - AX1919
3.8 kg - AX1922
4.5 kg - AX1924
5.1 kg - AX1932
TUNER
- DVB-T Digital HD Tuner
- Analogue Tuner
- DTV Video System: MPEG-1MP@ML, H.264,
MPEG-4 (Video Codes)
- DTV Sound System: MPEG-1 Layer 1/2
- ATV Video System: PAL
- ATV Sound System: BG, DK, I
DVD/CD PLAYER
- Built-In DVD Player
- Supports DVD/VCD/CD/MP3/DIVX/JPEG
- Supports DVD±R/DVD±RW/CD-R/RW
OPTIONAL
- Desk Mount Stands (Feet)
- 240V AC Adaptor
- Range of AXIS TV Mounting Brackets
1
1
INPUTS
- RF/Antenna: 1
- HDMI: 2
- USB: 1
- Mini YPbPr: 1
- Mini AV: 1
- VGA: 1
- PC Audio: 1
OUTPUTS
- Headphone: 1 (3.5mm)
- Digital Coax: 1
- Line Out: 1
MULTIMEDIA & FEATURES
- TIMESHIFT: Pause, Rewind & Fast-Forward
Live TV (using PVR)
- USB Reader
- PVR (Personal Video Recorder)
- EPG (Electronic Program Guide)
INCLUDED
- Remote Control
- Cig. Power Adaptor Lead
- Wall Mounted Screws
- Mini YPbPr Lead
- Mini AV Adaptor
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Axis AX1919
Summary of Contents for Axis AX1919
- Page 1 - Display Size: 19” (48cm) - AX1919 - Conformal Coated Circuit Board - RF/Antenna: 1 22” (56cm) - AX1922 - Size: 440 x 50 x 263 mm - AX1919 - HDMI: 2 24” (60cm) - AX1924 506 x 49 x 301 mm - AX1922 - USB: 1 32”...
-
Page 2: Table Of Contents
CONTENTS TV Operation Select Input Source ....................3 Initial Installation ....................3 Main Menu Operation ..................4 Channel Menu ......................4 Picture Menu ......................6 Sound Menu .......................7 Time Menu ......................8 Option Menu ......................9 Lock Menu ......................11 PVR ........................12 Media Operation Media Operation ....................13 Photo Menu ......................14 Music Menu ......................15 Movie Menu ......................16 Text Menu ......................17... -
Page 3: Tv Operation
TV Operation Select Input Source Press Source on the remote, then use the arrow keys to select your desired source. Press ENTER on the remote to select the source. Initial Installation Firstly connect an RF Antenna cable from the TV’s RF output to the TV Antenna socket. presented with a number of dialogue When you Reset the TV from the Setup menu, you will be boxes that will... -
Page 4: Main Menu Operation
Main Menu Operation Press the Menu button on the remote to select the Main Menu. From there, you can use the buttons to select between the following sub-menus: - Channel - Picture - Sound - Time - Option - Lock Once you select a sub-menu, use the buttons to select an option in the sub-menu. - Page 5 ENTER Use the coloured buttons on the remote to edit the channels. First press the buttons on the remote to highlight the channel you want to select, then: Press the button to delete the channel from the program list. Press the Yellow button to move the channel in the list.
-
Page 6: Picture Menu
Picture Menu Picture Mode Pres uttons to select Picture mode, and go into next interfac y pressing the ENTER utton. Contrast, Brightness, Colour, Tint, Sharpness Note ou can only adjust the Contrast, Brightness, Colour, Tint & Sharpness settings when the User Picture Mode is selected. Press the ▼... -
Page 7: Sound Menu
Sound Menu Sound Mode Press th uttons to select Sound Mode. Then press the ENTER utton to select from a list of sound modes. The sound mode ca e switche etween standard/music/movie/sports/ user using th uttons. Custom Equaliser The frequencies adjust the following ranges: 120Hz - Bass, 500Hz - Mid ass, 1.5KHz -Midrange, 5KHz - Upper Midrange, 10KHz - Tre le These settings can only adjusted when the Sound Mode selection (a ove) is set to User. -
Page 8: Time Menu
TIME MENU Time Menu Clock The clock and date is automatically programmed from information received from DTV Channels. You should not need to use this sub-menu once you have received a DTV signal, however this can be manually changed if required. Off Time This setting allows you to set a specific time to turn the TV off. -
Page 9: Option Menu
Option Menu OSD Language Select OSD Language with the buttons then press ENTER to adjust the on-screen anguage. TT Language This setting is not used in Australia & New Zealand Audio Languages Press Audio Language and select language with buttons. Press the ENTER button to confirm then the menu button to return to the previous menu. - Page 10 HDMI CEC HDMI CEC allows devices connected to the TV via HDMI to communicate back and forth with the TV. Please see below for specific CEC settings uttons to turn CEC Control on of off. The default CEC Control: Press the setting is On Press th uttons to turn Audio Receiver communication...
-
Page 11: Lock Menu
Lock Menu Lock System Select Lock System with the buttons and press ENTER Then enter the password (default is “0000") to access the Block Program, Parental Rating Key Lock & Hotel Mode menus. SET Password Select Set Password with the / buttons. -
Page 12: Pvr
RECORD Live TV Ensure you have a correctly formatted USB drive inserted in the TV before recording. If the USB drive is not formatted properly, the TV will display a message advising that the USB drive needs to be formatted. To do this, go to the Option Menu select PVR File System and follow the steps in the PVR File System sub-menu to format the USB Drive. -
Page 13: Media Operation
Media OPERATION Note: Before operating Media menu, Plug in USB device, then press SOURCE button. Press button to select Media in the Source menu, then press Enter button to enter. the type of media you wish to view in the Media menu, then press Enter button to enter. -
Page 14: Photo Menu
Photo Menu Enter Press Exit Enter... -
Page 15: Music Menu
Music Menu Enter Press Exit Enter... -
Page 16: Movie Menu
Movie Menu Enter button to enter. Press Exit Enter button to enter. Press Enter Press Display Enter button to enter. Press Exit... -
Page 17: Text Menu
Text Menu TEXT Enter Press Exit Enter Press Display Enter... -
Page 18: Dvd
is accessed by pressing the D.Setup button. Press to navigate the OSD Menu. Press Enter to confirm the change. Press D.Setup to leave the OSD Menu. Pan & Scan (4:3) The sides of the screen will be black. Normal viewing mode. When you stop the disc, the player will automatically remember the point it finished playing. - Page 19 You can also select alternative subtitle languages by pressing the S.Title button on remote. , based on the rating of the disc. This function is pasword protected. settings...
- Page 20 AX1919/22/24/32...
