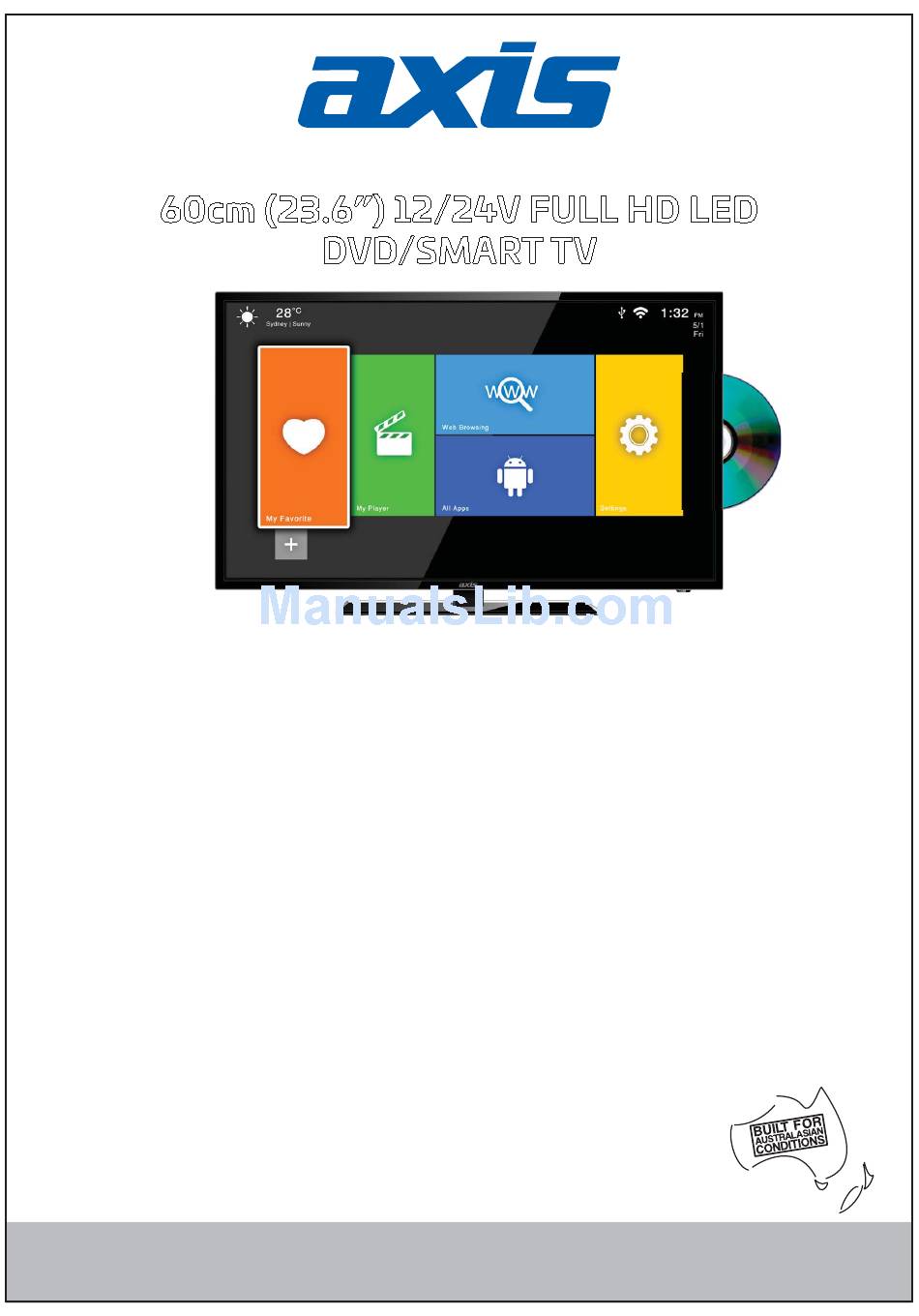

60cm (23.6") 12/24V FULL HD LED
PANEL
- Display Size: 60cm (23.6")
- Full High Definition LED TV
- Aspect Ratio: 16:9
- Resolution: 1920 x 1080
- Brightness: 250cd/m2
- Contrast: 1000:1
- Viewing Angle: 176(H) x 176(V)
POWER
- Input: 9-36V DC / 4A Max
- AC Adapter: 240V 50Hz/60Hz
- Stand-by Power Consumption: 0.5W
CABINET
- Conformal Coated Circuit Board
- Size (without base): 551 x 48 x 328mm
- Size (with base): 551 x 176 x 357mm
- Enhanced Strength VESA Mounting
- Net weight: 3.9 kg (without stand & packaging)
MULTIMEDIA & FEATURES
- TIMESHIFT: Pause, Rewind & Fast-Forward
Live TV (using PVR)
- USB Reader
- PVR (Personal Video Recorder)
- EPG (Electronic Program Guide)
OPTIONAL: Select from Axis Range of
VESA 100 TV Mounting Brackets
INSTRUCTION MANUAL
AX1824S
DVD/SMART TV
SMART TV
- Operating System: Android
- Built-In WiFi
- Downloadable Apps via Google Play Store
- Included Apps: Google Chrome/Play Store,
Browser, Netflix, Stan, YouTube, Movie Player,
Freeview FV, ABC iview, Plus7, 9Now, Tenplay,
SBS On Demand
TUNER
- DVB-T Digital HD Tuner
- Analogue Tuner
- DTV Video System: MPEG-2MP@ML, H.264,
MPEG-4 (Video Codes)
- DTV Sound System: MPEG-1 Layer 1/2,
- ATV Video System: PAL / SECAM
- ATV Sound System: BG, DK, I, L/L' / NICAM / A2
SYSTEM
- MPEG-4 Video System
- OSD: Multi-languages
- Number of Channels: 99
- Comb Filter: 3D
- Teletext: ATV/1000 Pages
- Speakers: 2 x 3W Stereo
INCLUDED
- Remote Control
- Removable Desktop Stand
- 240V AC Adaptor
- Cig Lead Car Power Adaptor
- RCA Adaptor
- YPbPr Adaptor
1
DVD/CD PLAYER
- Built-In DVD Player
- Supports DVD/VCD/CD/MP3/DIVX/JPEG
- Supports DVD±R/DVD±RW/CD-R/RW
INPUTS
- RF / Antenna Input: 1
- AV: 1
- YPbPr: 1
- HDMI: 2
- VGA: 1
- USB: 3 (2 Smart)
- PC Audio: 1
- DVD Combo (normal DVD)
- Ethernet: 1
OUTPUTS
- Headphone: 1
- Coaxial: 1
(Digital Output to AV Receiver)
- RCA Audio: 1
2
YEAR
WARRANTY
Advertisement
Table of Contents
Related Manuals for Axis AX1824S
Summary of Contents for Axis AX1824S
- Page 1 - Speakers: 2 x 3W Stereo - PVR (Personal Video Recorder) - EPG (Electronic Program Guide) INCLUDED - Remote Control OPTIONAL: Select from Axis Range of - Removable Desktop Stand VESA 100 TV Mounting Brackets - 240V AC Adaptor - Cig Lead Car Power Adaptor...
-
Page 2: Table Of Contents
CONTENTS TV Operation Select Input Source ....................3 Initial Installation ....................4 Main Menu Operation ..................6 Picture Menu ......................13 Sound Menu .......................15 Time Menu ......................16 Lock Menu ......................18 Hotel Mode ......................20 Setup Menu ......................21 Screen Menu ......................25 Media Operation Media Operation ....................26 Photo Menu ......................27 Music Menu ......................28 Movie Menu ......................29... -
Page 3: Select Input Source
SELECT INPUT SOURCE Press INPUT button to display the input source list, Pres button to select the desired input source you want to, Press ENTER button to enter the input source, Press EXIT button to quit. -
Page 4: Initial Installation
Initial Installation Connect a RF cable to the TV’s input called “RF-In”. Select Language Pres utton to select the language to be used for menus and message. Select Country ress button to highlight country menu. Pres utton to select. Press ENTER to continue. Select Tune Type Press Press ENTER to continue. - Page 5 Auto Tuning ATV: Press MENU and then left arrow button to skip ATV tuning. DTV: Press MENU and then left arrow button to skip DTV tuning.
-
Page 6: Main Menu Operation
Main Menu Operation Channel Menu Press MENU button to display the main menu. Pres utton to select CHANNEL. In DVT Source: 1. Press button to select the option to adjust in the CHANNEL menu. 2. Press ENTER button to adjust. 3. - Page 7 ATV Manual Tuning Current CH Set the channel number. Color System Select the color system (Available System: AUTO,PAL , SECAM ) Sound System elect the Sound system (Available System: DK, L, BG, I Fine-Tune Adjust the frequency of the channel. Search Start searching channel.
- Page 8 DVT Manual Tuning Pres utton to select Manual Tuning, then press ENTER utton to enter su -menu. Pres utton to select channel, then press ENTER utton to search program. Program Edit Pres utton to select Program Edit, then press ENTER utton to enter su -menu. The three colored key is the shortcut for programming the channel.
- Page 9 Schedule List Pres utton to select Schedule List, then press ENTER utton to enter su -menu. NOTE: If a program conflicts with a scheduled program, Press the YELLOW utton to enter the it will produce a warning message. interfac elow. Press Press to make and adjustment.
- Page 10 The CHANNEL List in Satellite Source Auto Tuning Press button to select Auto Tuning, then press ENTER / utton to enter. Press MENU button to open the main menu. Highlight “Channel” using navigation buttons and press OK to enter. Then highlight “Auto Tuning” and press OK to enter. Country: Select your country.
- Page 11 DISH SETUP (not available in some countries) Press button to select Dish Setup.then press ENT ER / utton to enter. Press MENU button to open the main menu. Highlight “Channel” using navigation buttons and press OK to enter. Then highlight “Dish Setup” and press OK to enter. Press LEFT/RIGHT navigation button to highlight Left, Middle or Right column.
- Page 12 C. When the “Ku_ASTRA...” (Right) column is highlighted” LNB (Low Noise Block) Type Press LEFT/RIGHT navigation button to enter submenu. Then use UP/DOWN navigation button to select desired option. LNB Power Press LEFT/RIGHT navigation button to select desired option. 22 kHz Press LEFT/RIGHT navigation button to select desired option.
-
Page 13: Picture Menu
Press MENU button to display the main menu. Press button to select PICTURE in the main menu. 1. Press button to select PICTURE menu. 2. Press OK button to adjust. 3. After finishing your adjustment, Press MENU button to save and return back to the previous menu. Picture Mode Press button to select Picture Mode, then press OK button to enter sub-menu. - Page 14 Colour Temp Change the overall color cast of the picture. Press button to select Colour Temperature, then press OK button to enter Sub-Menu. Press button to select. Press OK button to confirm. Cold Increase the blue tone. Normal No change in tone. Warm Increase the red tone.
-
Page 15: Sound Menu
es MENU utt s la elec SOUND adjust t e SOUND ess Enter utt t adjust A te adjust e t ess Enter utt t sa e a d etu t t e Sound Mode elec es Enter utt elect Select Back Adjust... -
Page 16: Time Menu
Press MENU button to display the main menu. Pres utton to select TIME in the main menu. 1. Press button to adjust in the TIME menu. 2. Press ENTER button to adjust. 3. After finishing adjustment, Press ENTER button to save and return to the previous menu. Time Zone Press button to select Time Zone, then press ENTER button to enter sub-menu. - Page 17 Auto Standby Pres utton to select Auto Stand y, then press Enter utton to enter su -menu. Pres utton to select. Tips: Using the remote control resets the timer. OSD Timer Pres utton to select OSD Menu Time-Out, then press Enter utton to enter su -menu. Pres utton to select.
-
Page 18: Lock Menu
Press MENU button to display the main menu. Pres utton to select Lock in the main menu. 1. Press button to adjust the LOCK menu. 2. Press E E n n t t e e r r button to adjust. 3. - Page 19 Channel Lock Press button to select Channel Lock, then press Enter button to enter sub-menu to select. Press Green button to lock or unlock the channel. Parental Guidance Press button to select Parental Guidance, hen press Enter button to enter sub-menu to select the appropriate rating.
-
Page 20: Hotel Mode
Hotel Mode 1. Press button on the remote control to select hotel mode in the Lock menu. 2. Press Enter button on the remote control to enter the sub-menu. 3. After finishing your adjustment, Press MENU button to save and return back to the previous menu. Hotel Mode Press button to select Hotel Mode, then pres... -
Page 21: Setup Menu
Press MENU button to display the main menu. Pres utton to select SETUP in the main menu. 1. Press button to adjust the SETUP menu. 2. Press Enter button to adjust. 3. After finishing adjustment, p ress Enter button to save and return to the previous menu. Language Select an OSD menu language to be displayed. - Page 22 Audio Languages Press button to select Audio Languages, then press Enter button to enter sub-menu. Pres utton to select the primary or secondary audio language. Press utton to select the Audio Languages. Subtitle Language Press button to select Subtitle Language, then press Enter button to enter sub-menu. Pres utton to select the primary or secondary subtitle language.
- Page 23 Aspect Ratio Press utton to select Aspect Ratio, then press Enter button to enter sub-menu. Press utton to select aspect ratio. (Available options are: Auto, 4:3,16:9, Zoom1, Zoom2). Blue Screen Press button to select Blue Screen, then press Enter button to select On or Off. First Time Installation Press button to select Initial Installation, t hen press Enter button to enter.
- Page 24 Press EPG button on remote control to enter EPG menu page. Press UP/DOWN navigation button to select preferred program. Press LEFT/RIGHT navigation button to switch between left column and right column. When a program is highlighted (cursor moved to right column): Press button to record program.
-
Page 25: Screen Menu
Press MENU button to display the main menu. Pres utton to select SCREEN in the main menu. 1. Press button to adjust the SCREEN menu. 2. Press Enter button to adjust. 3. After finishing your adjustment, Press Enter button to save and return to the previous menu. Auto Adjust Press Enter button to start adjusting automatic... -
Page 26: Media Operation
Media OPERATION Note: Before operating Media menu, Plug in USB device, then press SOURCE button. Press button to select Media in the Source menu, then press Enter button to enter. the type of media you wish to view in the Media menu, then press Enter button to enter. -
Page 27: Photo Menu
Photo Menu Enter Press Exit Enter... -
Page 28: Music Menu
Music Menu Enter Press Exit Enter... -
Page 29: Movie Menu
Movie Menu Enter button to enter. Press Exit Enter button to enter. Press Enter Press Display Enter button to enter. Press Exit... -
Page 30: Text Menu
Text Menu TEXT Enter Press Exit Enter Press Display Enter... -
Page 31: Install Wizard
Install Wizard WELCOME PAGE When the AX1824S is first powered up, the Welcome Page will be shown. Press buttons to select. Press Enter button to confirm. Press Enter to continue. +Reminder To skip this wizard, press “HOME” key. Once this guide is used, it Select Language: will not auto-open again. - Page 32 Install Wizard Select Wireless Network (Wi-Fi) +Reminder If you choose ‘Wi-FI’, select a Wi-Fi Access Point Select Ethernet network(LAN) If you choose ‘Ethernet’, the screen will Set up the correct Time Zone show Ethernet connection status. Select Ethernet network (LAN) Configure Ethernet manually +Reminder If network is not connected, setup the...
- Page 33 Install Wizard Setup page S etup manually Date/Time Configuration Adjust screen size, using the arrow buttons on remote control. When you are finished, press Exit button.
-
Page 34: Main Launcher
Main Launcher Main Launcher Press the arrow buttons to select the icon and press “enter” to enter the sub-screen. FUNCTION DESCRIPTION Time information (You can set time information in the settings); USB/Ethernet/WiFi Function status (White for working, grey for standby). Display list of all installed apps The Browser tab contrains bookmarks and a search bar. -
Page 35: Network Settings
Main Launcher FUNCTION DESCRIPTION Add your favorite APPS to this directory. Add your media players to their directory. The Settings screen contains most of the customizing and configuration options, such as language, aspect ratio and network settings. Create APP shortcuts on the main launcher. - Page 36 Main Launcher SETTINGS Network Settings Generation introduction Turn on/off Wi-Fi Wi-Fi settings If on, a list of Wi-Fi access points will be displayed. Turn on/off Ethernet Ethernet If on, the IP address is automatically obtained by DHCP.
-
Page 37: Display Settings
Main Launcher Display Settings Generation introduction Automatically selects the best resolution of the HDMI output. Set the screen display range. Set the screen saver time. -
Page 38: Advanced Settings
Main Launcher Advanced Settings Generation introduction Set country Set state Set city Select the digital audio output automatically according to the HDMI output device. Manually select digital audio output: PCM/HDMI pass through. -
Page 39: Other Settings
Main Launcher SETTINGS Other Settings Generation introduction Restore factory default (Apps will be last). Update system via update.zip from USB flash drive. Enter advanced settings menu. Version Info Model number Android Version Kernel Version Build number... -
Page 40: Install New Apps
Main Launcher How to install new APPs Install from USB Flash Drive Open the "File Browser". Choose your USB flash drive or any other mass storage’s folder. Find your application, and press Enter. Select Install. You can find the application in “ALL Apps” after installation. Download &... -
Page 41: Delete Apps
Main Launcher HOW TO DELETE AN APP Remove Applications 1. Enter " " s 2. Enter " " s 3. Find the application you want to remove under the “All” tab 4. Press Enter, then select Uninstall 5. Select “OK” to confirm uninstall... -
Page 42: Browser
Main Launcher Browser Select the search bar, input the URL or search content and press Enter • Or select a website from the list • Using a mouse (not incl). Left click • Click to confirm entering or choosing Right click •... -
Page 43: Dvd
is accessed by pressing the D.Setup button. Press to navigate the OSD Menu. Press Enter to confirm the change. Press D.Setup to leave the OSD Menu. Pan & Scan (4:3) The sides of the screen will be black. Normal viewing mode. When you stop the disc, the player will automatically remember the point it finished playing. - Page 44 You can also select alternative subtitle languages by pressing the S.Title button on remote. , based on the rating of the disc. This function is pasword protected. settings...
-
Page 45: Notes
Notes... - Page 46 Notes...
- Page 47 Notes...
