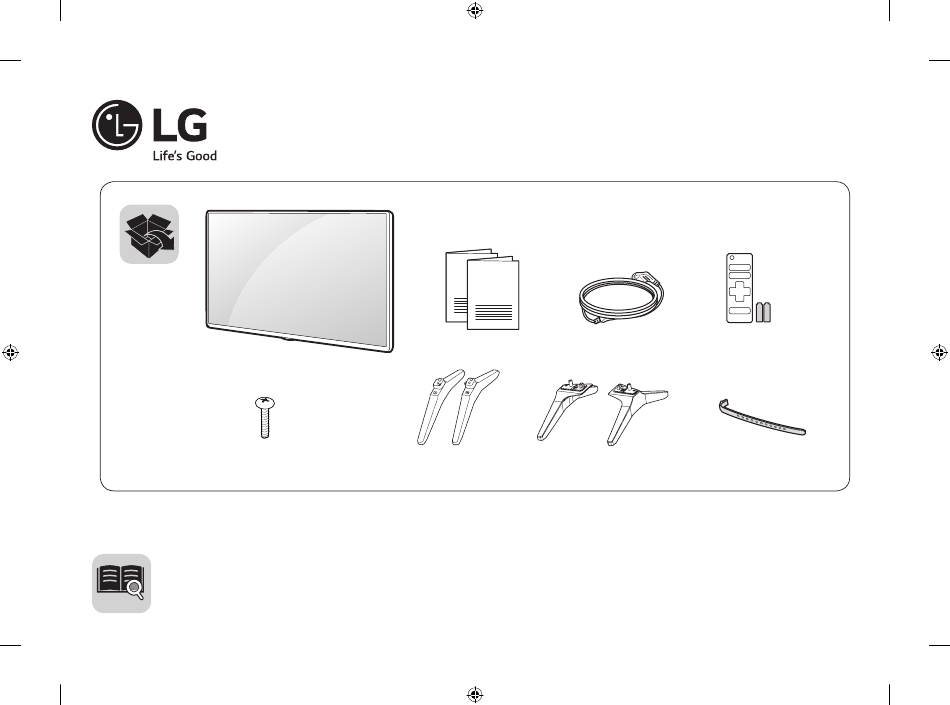

- Page 1 LED TV LJ55** LJ59** (M4 X L16) 43LJ55/59** (M4 X L16) 49LJ55/59** 43LJ55/59** 49LJ55/59** www.lg.com P/No: MFL69649112 (1702-REV00) Printed in Korea...
- Page 4 43LJ55/59**...
- Page 5 49LJ55/59**...
- Page 6 ANTENNA/ CABLE IN HDMI IN HDMI IN/ARC USB IN AUDIO OUT/ H/P OUT...
- Page 7 H/P OUT Satellite IN OPTICAL DIGITAL AUDIO OUT COMPONENT IN AV IN VIDEO/Y P L/MONO AUDIO R VIDEO/Y P L/MONO AUDIO R...
- Page 8 COMPONENT IN AV IN VIDEO/Y L/MONO AUDIO R VIDEO/Y L/MONO AUDIO R VIDEO AUDIO VIDEO L/MONO AUDIO R...
- Page 10 43LJ550V-ZA 80.8 43LJ594V-ZA 49LJ550V-ZA 1110 81.1 11.4 11.3 49LJ594V-ZA...
- Page 13 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com *MFL69649202* P/NO : MFL69649202(1701-REV01) Printed in Korea...
- Page 14 Warning! Safety instructions • Make sure to connect Mains cable to compliant AC mains socket with Grounded earth pin. (Except for devices which are not grounded on earth.) Otherwise possibility you may be electrocuted or injured. • Insert power cable plug completely into wall socket otherwise if CAUTION not secured completely into socket, fire ignition may break out.
- Page 15 • Only use an authorized AC adapter and power cord approved by product. LG Electronics. Otherwise, this may result in fire, electric shock, malfunction or product deformation. • Do not turn the product On/Off by plugging-in or unplugging the power plug to the wall outlet.
- Page 16 Preparing • Take care not to touch the ventilation openings when watching the TV for long periods as the ventilation openings may become hot. This does not affect the operation or performance of the product. • If the TV is turned on for the first time after it was shipped from •...
-
Page 17: Lifting And Moving The Tv
Lifting and moving the TV • Do not use any unapproved items to ensure the safety and product life span. • Any damage or injuries caused by using unapproved Please note the following advice to prevent the TV from being scratched items are not covered by the warranty. -
Page 18: Using The Button
Using the button Mounting on a table You can simply operate the TV functions, using the button. 1 Lift and tilt the TV into its upright position on a table. • Leave a 10 cm (minimum) space from the wall for proper ventilation. -
Page 19: Mounting On A Wall
LG recommends that wall mounting be performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. -
Page 20: Connections (Notifications)
Connections (notifications) Adapter connection (Depending on model) Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s connection, refer to the manual provided with each device. • Please be sure to connect the TV to the AC-DC power Available external devices are: HD receivers, DVD players, VCRs, audio adapter before connecting the TV’s power plug to a wall systems, USB storage devices, PC, gaming devices, and other external... -
Page 21: Remote Control
Remote control (POWER) Turns the TV on or off. Selects Radio, TV and DTV programme. (INPUT) Changes the input source. (Some buttons and services may not be provided depending on models (Q. Settings) Accesses the Quick Settings. or regions.) By zooming in on the selected area, you can view it in full screen. -
Page 22: Magic Remote Functions
Magic remote functions (POWER) Turns the TV on or off. You can turn your set-top box on or off by adding the set- top box to the universal remote control for your TV. (Some buttons and services may not be provided depending on models Number buttons Enters numbers. -
Page 23: Open Source Software Notice Information
Registering magic remote LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media, shipping, and handling) upon email request to How to register the magic remote opensource@lge.com. -
Page 24: Troubleshooting
Troubleshooting Abnormal Display • If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with Cannot control the TV with the remote control. product. •... -
Page 25: Specifications
Model : LCAP45 Manufacturer : APD Model : DA-48G19 AC/DC Manufacturer : Chicony Adapter Model : A16-048N2A Manufacturer : LG Innotek Model : PSAC-L655 In : AC 100 - 240 V ~ 50/60 Hz Out : DC 19 V 2.53 A... - Page 26 CI Module (W x H x D) 100.0 mm x 55.0 mm x 5.0 mm Operating Temperature 0 °C to 40 °C Operating Humidity Less than 80 % Environment condition Storage Temperature -20 °C to 60 °C Storage Humidity Less than 85 % (Depending on country) Digital TV Analogue TV...
- Page 28 Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL...
-
Page 29: External Control Device Setup
OWNER’S MANUAL EXTERNAL CONTROL DEVICE SETUP Please read this manual carefully before operating the set and retain it for future reference. www.lg.com... -
Page 30: Key Codes
KEY CODES KEY CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) CH +, PR + R/C Button List R/C Button CH -, PR - R/C Button Exit R/C Button Volume + R/C Button PIP(AD) R/C Button... - Page 31 (TV) (PC) • LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter RS-232C IN which is not made nor provided by LG. (CONTROL & SERVICE) (TV) (PC) • It can be purchased from computer stores that carry accessories for IT support professionals.
- Page 32 EXTERNAL CONTROL DEVICE SETUP (TV) (PC) (TV) (PC) Phone jack Type RS-232C IN • You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and (CONTROL & SERVICE) (PC) (TV) the TV, which is specified in the manual. RS-232C IN (CONTROL &...
- Page 33 EXTERNAL CONTROL DEVICE SETUP Communication Parameters • Baud rate : 9600 bps (UART) • Stop bit : 1 bit • Data length : 8 bits • Communication code : ASCII code • Parity : None • Use a crossed (reverse) cable. Command reference list (Depending on model) DATA...
- Page 34 EXTERNAL CONTROL DEVICE SETUP Transmission / Receiving Protocol Transmission [Command1][Command2][ ][Set ID][ ][Data][Cr] [Command 1] : First command to control the TV. (j, k, m or x) [Command 2] : Second command to control the TV. [Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu. Adjustment range in TV is 1 to 99.
- Page 35 EXTERNAL CONTROL DEVICE SETUP * Commands may work differently depending on model and signal. 01. Power (Command: k a) Ack [d][ ][Set ID][ ][OK/NG][Data][x] ► To control Power *On or Off of the set. * In case of video mute on only, TV will display On Transmission[k][a][ ][Set ID][ ][Data][Cr] Screen Display(OSD).
- Page 36 EXTERNAL CONTROL DEVICE SETUP Data Min : 00 to Max : 64 * (Depending on model) Ack [i][ ][Set ID][ ][OK/NG][Data][x] 14. Bass (Command: k s) 09. Tint (Command: k j) ► To adjust Bass. ► To adjust the screen tint. You can also adjust in the AUDIO menu.
- Page 37 EXTERNAL CONTROL DEVICE SETUP Set ID = All = 00 5th Band 20(decimal) Data 00 & 01 = Channel Data is 10 = 00 0a Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x] Data 02 = Analog Antenna TV = 00 Result = ma 00 00 0a 00 * It depends on model, and can adjust when sound mode is EQ adjustable value.
- Page 38 EXTERNAL CONTROL DEVICE SETUP Number Data 05 = Digital Antenna TV = 02 - 22 : Antenna TV (DTV) – Don’t Use Physical Total = ma 00 00 00 11 00 01 02 Channel Number - 26 : Cable TV (CADTV) - Don’t Use Physical 2.
- Page 39 11 11 EXTERNAL CONTROL DEVICE SETUP 24. Input select (Command: x b) (Main Picture Input) ► To select input source for main picture. Transmission [x][b][ ][Set ID][ ][Data][Cr] Data X : don’t care 00 : DTV 01 : CADTV 02 : Satellite DTV 10 : ATV Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02] ISDB-BS (Japan)
- Page 40 EXTERNAL CONTROL DEVICE SETUP 27. Auto Configure (Command: j u) (Depending on model) ► To adjust picture position and minimize image shaking automatically. It works only in RGB (PC) mode. Transmission [j][u][ ][Set ID][ ][Data][Cr] Data 01 : Run Auto Configure Ack [u][ ][Set ID][ ][OK/NG][Data][x]...
