ASSEMBLY & OPERATING INSTRUCTIONS
This safety alert symbol identifies important safety messages in this manual.
Failure to follow this important safety information may result in serious injury
or death.
LS135-820-1209
Rev. 0
35 TON VERTICAL/HORIZONTAL LOG
MODEL NO.
401635BB & 401635BBCA
Owner's Manual
SPLITTER
Advertisement
Table of Contents
Related Manuals for SpeeCo SPLITMASTER 401635BB
Summary of Contents for SpeeCo SPLITMASTER 401635BB

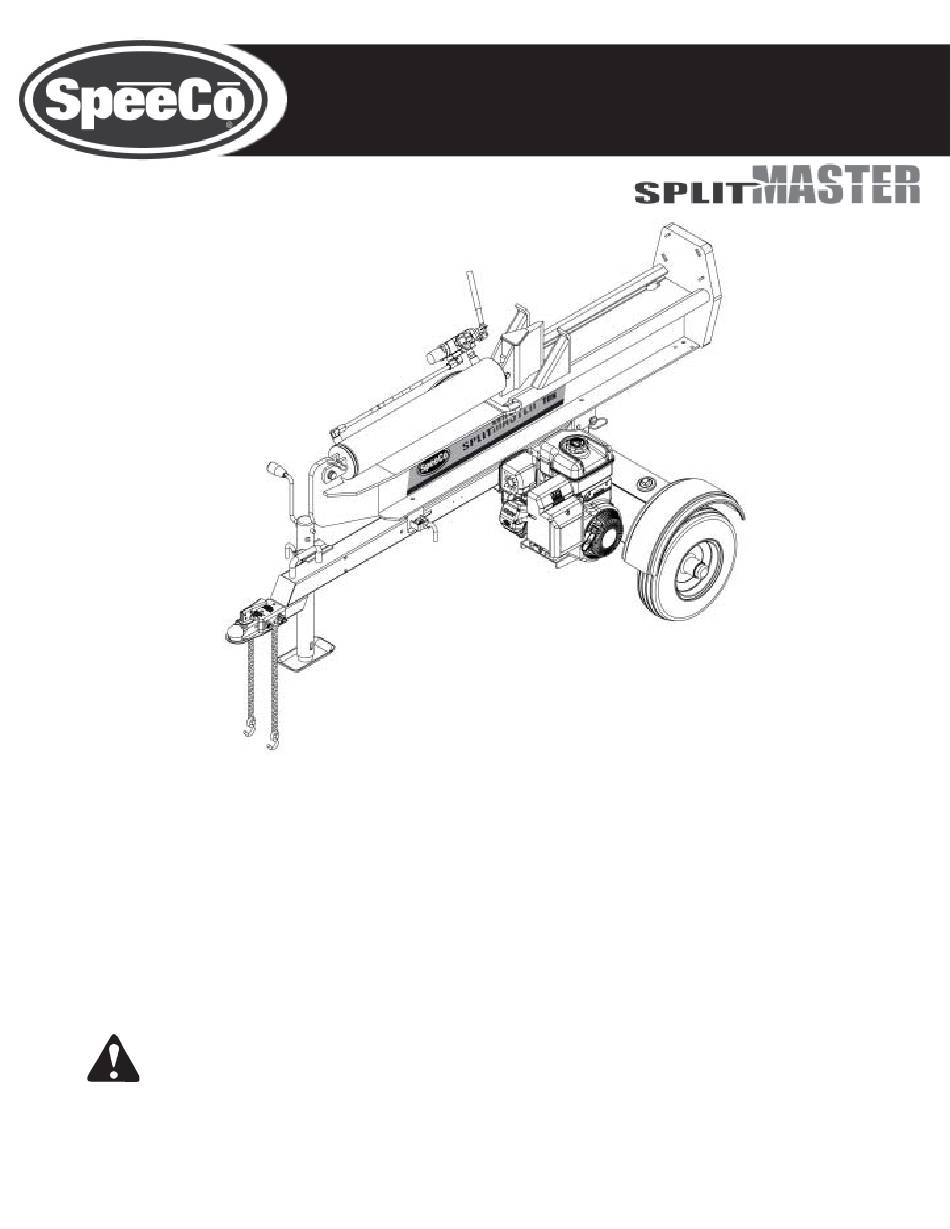

- Page 1 Free Shipping on Speeco 35 Ton Log Splitters at Northern Hydraulics. Call 1-800-823-4937. 35 TON VERTICAL/HORIZONTAL LOG SPLITTER MODEL NO. 401635BB & 401635BBCA Owner’s Manual ASSEMBLY & OPERATING INSTRUCTIONS This safety alert symbol identifies important safety messages in this manual.
-
Page 2: Table Of Contents
Free Shipping on Speeco 35 Ton Log Splitters at Northern Hydraulics. Call 1-800-823-4937. Table of Contents Page(s) Important Safety Information......................... Intended Use ......................... Personal Protective Equipment ....................Safety Decals ........................General Safety ........................Preparation of the Log ......................Work Area ........................... -
Page 3: Important Safety Information
Free Shipping on Speeco 35 Ton Log Splitters at Northern Hydraulics. Call 1-800-823-4937. WARNING: Read and thoroughly understand all instructions and safety information before assem- bling or operating this log splitter. Failure to do so may cause serious injury or death. Do not allow anyone to operate this log splitter who has not read this manual. - Page 4 Free Shipping on Speeco 35 Ton Log Splitters at Northern Hydraulics. Call 1-800-823-4937. PART NUMBER: 52055200 LOCATION: BOTH STRIPPER PLATES AND CYLINDER PART NUMBER: 52023200 LOCATION: HYDRAULIC TANK LOWER TANK, RIGHT CORNER PART NUMBER: 51018900 LOCATION: TOP OF HYDRAULIC CYLINDER...
-
Page 5: General Safety
Free Shipping on Speeco 35 Ton Log Splitters at Northern Hydraulics. Call 1-800-823-4937. GENERAL SAFETY Failure to follow these instructions may result in serious injury or death. ALWAYSEread the operator’s manual before operation. It is located in the plastic canister on the tongue. -
Page 6: Repair And Maintenance Safety
Free Shipping on Speeco 35 Ton Log Splitters at Northern Hydraulics. Call 1-800-823-4937. KNOW how to stop the log splitter and disengage the controls before operating it. NEVER place hands or feet between the log and splitting wedge during forward or reverse stroke. Serious injury or death could result. -
Page 7: Hydraulic Safety
Free Shipping on Speeco 35 Ton Log Splitters at Northern Hydraulics. Call 1-800-823-4937. HYDRAULIC SAFETY The hydraulic system of your log splitter requires careful inspection along with the mechanical parts. Be sure to replace frayed, kinked, cracked or otherwise damaged hydraulic hoses or hydraulic components. -
Page 8: Towing Safety
Free Shipping on Speeco 35 Ton Log Splitters at Northern Hydraulics. Call 1-800-823-4937. IMPORTANT NOTE: This log splitter is equipped with an internal combustion engine and should not be used on or near any unimproved forest-covered, brush-covered or grass-covered land unless the engine’s exhaust system is equipped with a spark arrester meeting applicable local or state laws (if any). -
Page 9: Assembly Instructions
Free Shipping on Speeco 35 Ton Log Splitters at Northern Hydraulics. Call 1-800-823-4937. ASSEMBLY INSTRUCTIONS NOTE: This log splitter was partially assembled at the factory. Refer to the drawings and parts list should it become necessary to disassemble the unit for repair or replacement of parts ITEM NO. - Page 10 Free Shipping on Speeco 35 Ton Log Splitters at Northern Hydraulics. Call 1-800-823-4937. STEP 3: Attach the tongue assembly (5) to the tank assembly (1) using two 1/2” NC x 4-1/2” hex cap bolts (2), two 1/2” l lock washers (3) and two 1/2” hex nuts (4). Tighten.
- Page 11 Free Shipping on Speeco 35 Ton Log Splitters at Northern Hydraulics. Call 1-800-823-4937. STEP 5: Connect the end of the 1/2” ID x 38” hydraulic pressure hose (1) coming from the fitting on the pump to the fitting on the valve . See illustrations below.
- Page 12 Free Shipping on Speeco 35 Ton Log Splitters at Northern Hydraulics. Call 1-800-823-4937. STEP 8: Attach the two fenders (1) to the tank/axle using the four 1/4” NC x 3/4” hex cap bolts (2), the four 1/4” flat washers (3 ) , the four 1/4” lock washers (4) and the four 1/4:” NC hex nuts (5). Tighten ITEM NO.
- Page 13 Free Shipping on Speeco 35 Ton Log Splitters at Northern Hydraulics. Call 1-800-823-4937. ENGINE/PUMP ASSEMBLY BREAKDOWN ITEM NO. PART NO. DESCRIPTION QTY. 5/16”-18 UNC Nylock Nut 5/16” Regular Lock Washer 5/16” x 1-1/4” GR 5 Bolt 5/16” x 1” UNF GR 5 Bolt 39054500 Briggs &...
-
Page 14: Parts Breakdown Illustrations
Free Shipping on Speeco 35 Ton Log Splitters at Northern Hydraulics. Call 1-800-823-4937. TONGUE ASSEMBLY BREAKDOWN ITEM NO. PART NO. DESCRIPTION QTY. 17280300 M10 x 1.5 Nylock Nut 17271600 M10 x 1.5 x 100mm GR5 Bolt 17272000 M10 x 1.5 x 120mm GR5 Bolt... -
Page 15: Operating Instructions
Free Shipping on Speeco 35 Ton Log Splitters at Northern Hydraulics. Call 1-800-823-4937. OPERATING INSTRUCTIONS WARNING: Read and thoroughly understand all instructions and safety information before operating this log splitter. Failure to do so may cause serious injury or death. Do not allow anyone to operate this log splitter who has not read this manual. -
Page 16: Operation
Free Shipping on Speeco 35 Ton Log Splitters at Northern Hydraulics. Call 1-800-823-4937. CAUTION: TURN FUEL SHUT OFF VALVE TO THE “OFF” POSITION PRIOR TO TOWING.FAILURE TO DO SO MAY RESULT IN FLOODING THE ENGINE. NOTE: The engine maximum governed speed is preset at the factory at 3600 RPM no load speed. When splitting wood the throttle should be set at the maximum speed to develop the horsepower required for the pump. -
Page 17: Maintenance
Free Shipping on Speeco 35 Ton Log Splitters at Northern Hydraulics. Call 1-800-823-4937. MAINTENANCE 1) Consult the operating and maintenance instructions of the engine manufacturer for engine care and maintenance. 2) Always check the oil level of the hydraulic reservoir before operation. Operating the log splitter without an adequate oil supply will cause severe damage to the pump. - Page 18 Free Shipping on Speeco 35 Ton Log Splitters at Northern Hydraulics. Call 1-800-823-4937. IMPORTANT NOTICE We, the manufacturer, reserve the right to change the product and/or specifications in this manual without notification. The manual is for information usage only and the pictures and drawings depicted herein are for reference only.
-
Page 19: Specifications
Free Shipping on Speeco 35 Ton Log Splitters at Northern Hydraulics. Call 1-800-823-4937. SPECIFICATIONS & t t i l - t l c i l o l l t l i t l i i t l...
