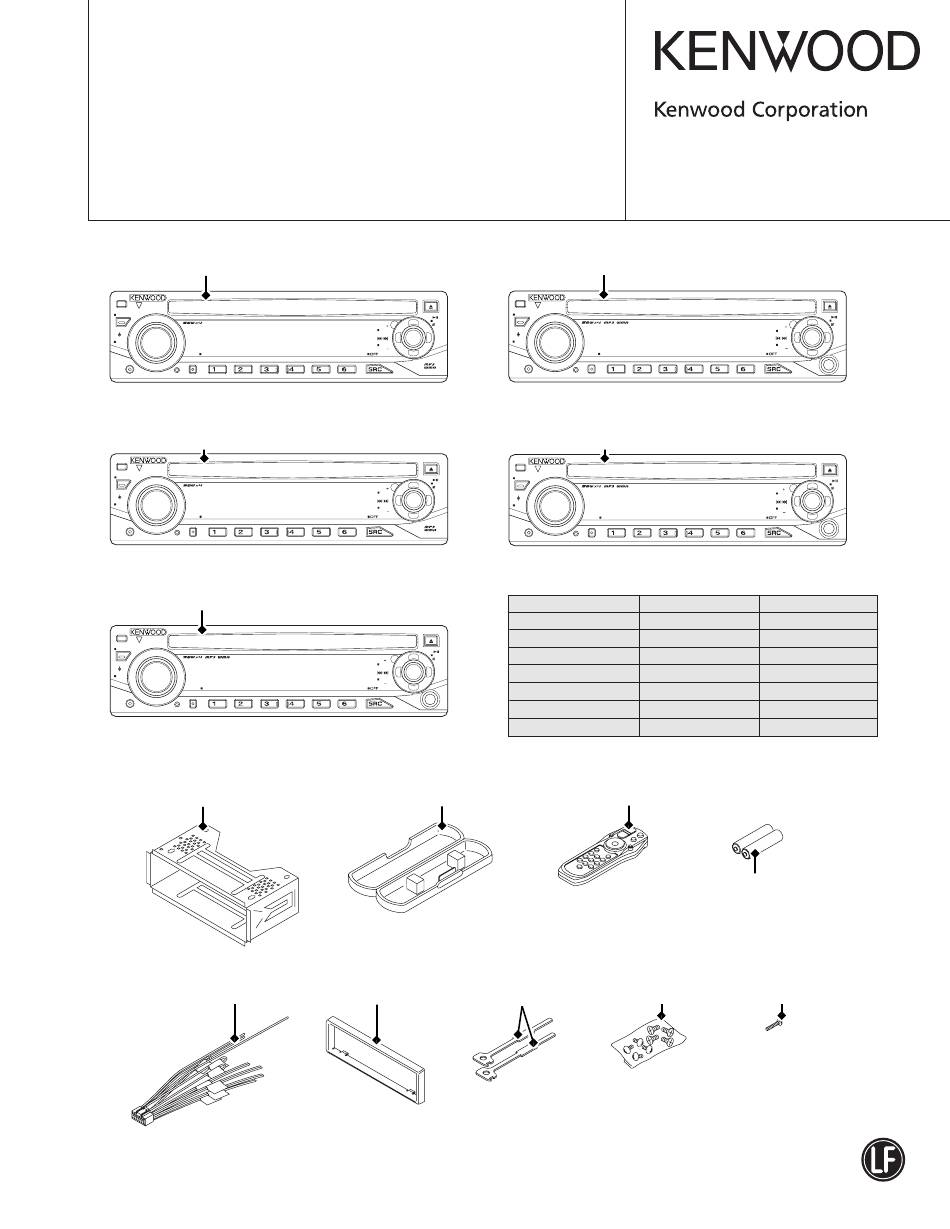

CD RECEIVER
KDC-MP3036/MP3036AX
KDC-MP336/MP336S
KDC-MP336AX/MP336AXS
KDC-MP4036AX
SERVICE MANUAL
Panel assy
KDC-MP3036 (A64-4066-02)
B.BOOST
MENU
VOL
AUD
SET UP
AUTO
AME
SCAN
RDM
ATT
Panel assy
KDC-MP336 (A64-4055-12)
KDC-MP336S (A64-4064-02)
B.BOOST
MENU
VOL
AUD
SET UP
AUTO
AME
SCAN
RDM
ATT
Panel assy
KDC-MP4036AX (A64-4050-02)
B.BOOST
MENU
VOL
AUD
SET UP
AUTO
AME
SCAN
RDM
ATT
Mounting hardware assy
(J21-9716-03)
DC cord
(E30-6415-15)
* Depends on the model. Refer to the parts list.
DISP
KDC-MP3036
FM
SCRL
SW
AM
REP
F.SEL
DISP
KDC-MP336
FM
SCRL
SW
AM
REP
F.SEL
DISP
KDC-MP4036AX
FM
SCRL
SW
AM
REP
F.SEL
M.RDM
Plastic cabinet assy
(A02-2736-03)
* Escutcheon
Lever
(B07-xxxx-xx)
(D10-4589-04) x2
© 2006-12 PRINTED IN JAPAN
B53-0480-00 ( N ) 299
Panel assy
KDC-MP3036AX (A64-4065-02)
B.BOOST
MENU
VOL
AUD
SET UP
AUTO
AME
SCAN
RDM
ATT
Panel assy
KDC-MP336AX (A64-4052-12)
KDC-MP336AXS (A64-4053-12)
B.BOOST
MENU
VOL
AUD
SET UP
AUTO
AME
SCAN
RDM
ATT
SPARE TDF PANEL
MAIN UNIT NAME
TDF PARTS No.
KDC-MP3036
Y33-2640-62
KDC-MP3036AX
Y33-2640-60
KDC-MP336
Y33-2640-63
KDC-MP336AX
Y33-2640-61
KDC-MP336AXS
Y33-2640-60
KDC-MP336S
Y33-2640-62
KDC-MP4036AX
Y33-2640-60
* Remote controller assy
(A70-xxxx-xx)
Screw set
(N99-1757-05)
This product uses Lead Free solder.
DISP
KDC-MP3036AX
FM
SCRL
SW
AM
REP
F.SEL
DISP
KDC-MP336AX
FM
SCRL
SW
AM
REP
F.SEL
TDF NAME
TDF-MP3036
TDF-MP4036AX
TDF-MP336
TDF-MP336AX
TDF-MP4036AX
TDF-MP3036
TDF-MP4036AX
Battery
(Not supplied)
Screw (4x16)
(N84-4016-48)
