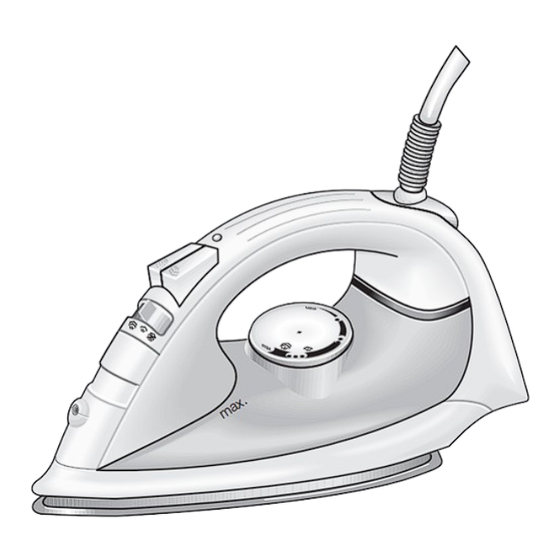

Bosch TDA5621GB Operating Instructions

Solving Minor Problems Yourself
Problem Possible Causes
Temperature control (H) set to Turn the temperature control to
minimum the desired position
Iron does not
Connection problems Check that the plug is inserted
work or is not
into the mains socket correctly
heating up
The automatic shut-off system has Move the iron gently from side
been activated (*) to side to re-start it
There is no water in the tank (D) Fill the water tank
Iron is not
Set the steam regulator to the
The steam regulator (A) is in the
steaming
relevant position
position
Temperature control (H) setting is Set the temperature control
too low. within the steam area (between
the "••" and "max") or turn the
steam regulator (A) to
Steam regulator (A) is set too Turn the steam regulator to a
high in conjunction with a low lower setting.
temperature.
You have pressed the shot of Wait 5 seconds between each
steam button (L) repeatedly without press of the jet of steam button
Water is dripping
waiting for 5 seconds between
from the holes in
each press
the soleplate
Water has been left in the tank (D) Always empty the tank after
when the sole plate was cold, with ironing and set the steam
the steam regulator (A) set at regulator to
or and when filling the tank
Distilled water has not been used Mix distilled water with tap
(see "Filling the water tank" section) water as directed in the "Filling
or other products such as fragrant the water tank" section and
water have been added to the tank never add any other products to
the water tank
No water in the tank. Add water to the water tank.
Spray does not
Obstructed mechanism. Contact an Authorised
work.
Technical Service Centre.
During first use: Certain This is completely normal and
The iron begins components on the appliance will stop after a short while.
to smoke when have been lightly greased at the
switched on. factory and may produce a little
smoke when initially heated.
Traces of lime scale are coming out Carry out a cleaning cycle (see
Deposits come
of the steam chamber "self cleaning" section)
out through
the holes in the
soleplate
Auto-shut off has been activated. Move the iron gently fromside to
Flashing lamp on
side to re-start it. The lamp will
top of handle (*)
then flash once before it re-heats
* Model dependent
You can download this manual from the local homepages of Bosch
Thank you for buying the TDA56 steam iron from Bosch. These
instructions contain valuable information about the unique features
of this iron and some hints to make ironing easier for you.
Please visit www.bosch-home.co.uk for more product
information or to register your product, just follow the link
to the Online guarantee registration.
Before using the iron for the first time
Please carry out the following steps:
1. Remove the protective cover from the soleplate before using
the iron.
2. While the iron is unplugged, fill the water tank (D) with tap
water
3. Plug the appliance into the mains and set the temperature
control (H) to the "•••" position by lining it up with the pointer
(G) on the iron.
4. When the iron has reached the correct temperature (the
pilot lamp "I" will goes out), set the steam regulator (A) to the
maximum position .
5. Hold the iron horizontally and repeatedly press the shot of steam
button (L). Any residue should come out of the soleplate (E).
It may smoke and smell – this is normal and will cease after a
short while.
6. If necessary, carefully clean the soleplate down with a dry, folded
cloth
Cleaning and Maintenance
Attention ! Risk of burns !
For general cleaning, follow the information below:
Problem Solution
Dirty/lightly marked Clean the body of iron or soleplate with a
iron body or soleplate damp cloth then dry it.
Mark develops on Set the iron to its maximum temperature
soleplate during use setting. Rub the iron a few times over with
a dry cotton cloth folded several times.
Heavily stained While the iron is cold, iron a linen cloth
soleplate soaked in white vinegar. Then dampen a
cloth with water and wipe the soleplate
clean and dry thoroughly.
DO NOT de-scale or clean the water tank with cleaning products
or solvents, as these could cause the iron to drip when using the
steam function.
DO NOT use a "professional steam cleaner" for cleaning the
appliance.
Solution
after ironing
DO NOT use sharp objects or abrasive products to clean the
soleplate or any other part of the appliance. To keep the soleplate
in good condition, do not allow it to come into contact with metal
objects.
GUARANTEE TERMS
The terms of the guarantee for this appliance are in accordance
with that stated by our representative for the country in which
it is sold. Details of those conditions can be obtained from the
retailer from whom the appliance was purchased. The SALES
RECEIPT must be presented when making any claims against the
terms of this guarantee. We reserve the right to make technical
modifications.
Environmental Care
This iron has been redesigned according to ecological criteria,
related to the sustainable development, analyzing its whole
lifecycle - from material selection to its later reusing or recycling
- evaluating the improvement possibilities, from a technical,
economical and environmental point of view.
Before throwing a used appliance away, you should make it
noticeably inoperable e.g. cut off the mains lead and be certain to
dispose of it in accordance with current laws and regulations.
Your retailer, town council or local council can give you detailed
information about these.
This appliance is labelled in accordance with
European Directive 2002/96/EG concerning used
electrical and electronic appliances (waste electrical
and electronic equipment - WEEE).
The guideline determines the framework for the return and re-
cycling of used appliances as applicable throughout the EU.
Tips to help you save energy
Steam production consumes the most energy. To help minimise
the energy used, follow the advice below:
• Start by ironing the fabrics that require the lowest ironing
temperature.
• Regulate the steam according to the selected ironing
temperature.
• Only use steam if necessary. If possible, use the spray
function instead.
• Try to Iron the fabrics while they are still damp and reduce the
steam setting. Steam will be generated from the fabrics rather
than the iron. If you tumble dry your fabrics before ironing
them, set the tumble drier to the 'iron dry' programme.
• If the fabrics are damp enough, turn off the steam regulator
completely.
• Stand the iron upright during pauses. Resting it horizontally
with the steam regulator on generates wasted steam.
Customer Service
Great Britain
Bosch Customer Service
Grand Union House
Old Wolverton Road
Milton Keynes
MK12 5PT
UK +44 (0)844 892 8923
IRL +353 (0)1450 2655
www.bosch-home.co.uk
005 TDA56..GB/10/10
TDA56..
sensixx B4

Operating instructions

Important
This appliance has been designed exclusively for domestic use
and must not be used for industrial purposes.
Carefully read through the operating instructions for the appliance
and safeguard them for future reference.
General safety warnings
• Danger of electric shocks or fire!
• This appliance is to be connected and used in accordance with
the information stated on its characteristics plate.
• This appliance must be connected to an earthed socket. If
it is absolutely necessary to use an extension cable, make
sure that it is suitable for 16A and has a socket with an earth
connection.
• The iron should not be used if it has been dropped, if there
are visible signs of damage or if it is leaking water. It must be
checked by an authorized Technical Service Centre before it
can be used again.
• Do not allow the power cable to come into contact with the
soleplate when it is hot.
• In order to avoid that, under unfavourable mains conditions,
phenomena like transient voltage drops or lighting fluctuations
can happen, it is recommended that the iron is connected to a
power supply system with a maximum impedance of 0.27Ω . If
necessary, the user can ask the public power supply company
for the system impedance at the interface point.
• This appliance is not intended to be used by persons (including
children) with reduced physical, sensory or mental capacities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning the use of the appliance
by a person responsible for their safety.
• Keep the appliance out of children's reach.
• Children should be supervised to ensure that they do not play
with the appliance.
• Remove the plug from the socket before filling the appliance with
water or before pouring out the remaining water after use.
• The appliance must never be placed directly under the tap to
fill the water tank.
• The appliance must be used and placed on a stable surface.
• When placed on its stand, make sure that the surface on which
the stand is placed is stable.
• The iron must not be left unattended while it is connected to
the supply mains.
• Unplug the appliance from the mains supply after each use, or
if a fault is suspected.
• The electrical plug must not be removed from the socket by
pulling the cable.
• Never immerse the iron in water or any other fluid.
• Do not leave the appliance exposed to weather conditions (rain,
sun, frost, etc.)
• With the aim of avoiding dangerous situations, any work or
repair that the appliance may need, e.g. replacing a faulty mains
cable, must only be carried out by qualified personnel from an
Authorised Technical Service Centre.
