ASME A112.18.1 / CSA B125.1
ASME A112.18.2 / CSA B125.2
ICC/ANSI A117.1
Model/Modelo/Modèle
65350LF▲& 65351LF▲
Series/Series/Seria
TM
Sotria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
You may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin:
For easy installation of your Brizo
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
• To purchase the correct water supply hook-up.
Para instalación fácil de su llave
Brizo
usted necesitará:
®
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet Brizo
facilement, vous devez:
• LIRE TOUTES les instructions avant de
débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.
www.brizo.com

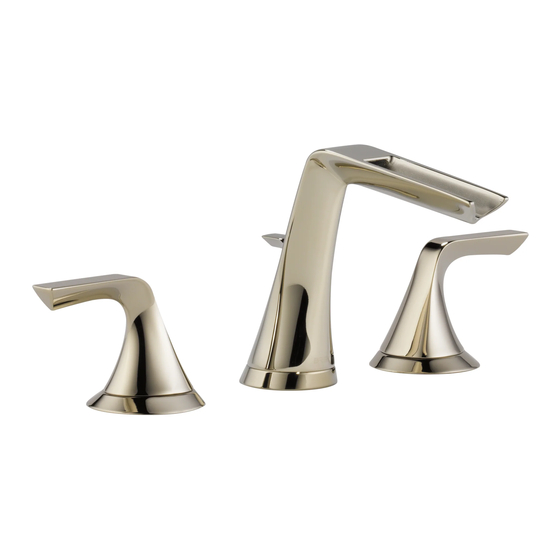

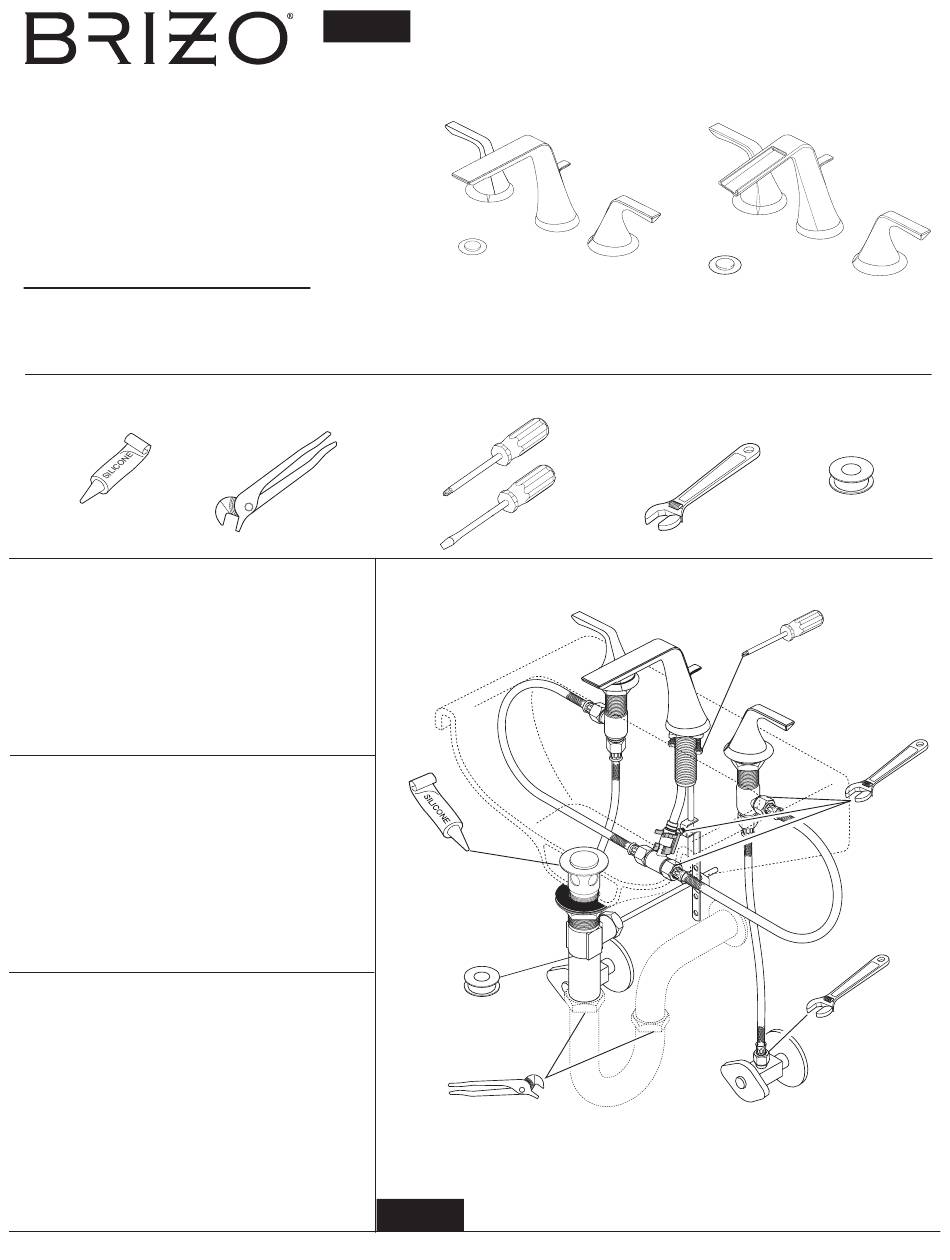

TWO HANDLE WIDESPREAD LAVATORY FAUCETS
76824
LLAVES DE AGUA / GRIFOS DE CAÑO ALTO
ROBINETS À GRAND ENTRAXE POUR LAVABO
65350LF▲
®
®
76824
1
65351LF▲
1/14/14
Rev. B
Advertisement
Table of Contents
Related Manuals for Brizo Sotria 65351LF-PN
Summary of Contents for Brizo Sotria 65351LF-PN
- Page 1 Escriba aquí el número del modelo comprado. Inscrivez le numéro de modèle ici. You may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin: For easy installation of your Brizo ® faucet you will need: • To READ ALL the instructions completely before beginning.
- Page 2 350 South Edgeware Road Componentes electrónicos y pilas (si aplicable) Indianapolis, IN 46280 St. Thomas, Ontario, Canada N5P 4L1 Todas las piezas (salvo las pilas), si hay, de esta llave de agua Brizo ® están garantizadas al con- 1-877-345-BRIZO (2749) 1-877-345-BRIZO (2749) customerservice@deltafaucet.com customerservice@mascocanada.com...
- Page 3 ▲ Specify Finish Especifíque el Acabado Précisez le Fini ▲ RP76565 Lift rod Barra de alzar Tirettes RP73870 RP76571 Spline Adapter & Screw Adaptadore de la Ranura y Tornillo Stream Straightener Adaptateur Cannelés et Vis Enderezador del Chorro Concentrateur de Jet RP76568▲...
- Page 4 1 1/8" (29 mm) Diameter Min. INSTALLATION OF VALVE ASSEMBLIES & TRIM INSTALLATION OF SPOUT Note: When drilling holes for side valves, it is recommended that hole size must be a Note: When drilling mounting holes for the spout it is recommended that minimum of 1 1/8"...
- Page 5 Make sure valve cartridge is in off position. Place glide ring (1) into the groove in Place spline adapters (1) over valve stems (2) and secure with screws (3). the bottom of handle (2). Place handle over end valve spline (3) and onto escutcheon.
- Page 6 1/2" (12.7 mm) IPS MAKE CONNECTIONS TO WATER LINES: Connect flexible outlet hoses (1) to valve outlet and spout inlet ports as shown. Tighten nuts firmly with a wrench, but do not over tighten. Choose hook-ups for 1/2" I.P.S. connections: (1) Ball nose riser (3/8"...
- Page 7 Step 3b Step 3e Pop-up Installation Step 3c Remove pivot nut (1). Install horizontal rod (2) and Apply silicone to underside of flange (1). stopper (3) as removable (4) or non-removable (5). Insert body (2) into sink. Screw flange (1) Remove stopper (1) and flange (2).
- Page 8 Vérifiez l’étanchéité de tous les raccords identifiés par une flèche. D. Glissez soigneusement le raccord en T (8) de nouveau sur le manchon et fixez-le Resserrez les raccords au besoin, mais prenez garde de trop avec l’agrafe (9). les serrer. www.brizo.com 76824 Rev. B...
