Brizo Levior 65397LF- LHP-ECO Series Manual

Brizo Levior 65397LF- LHP-ECO Series Manual

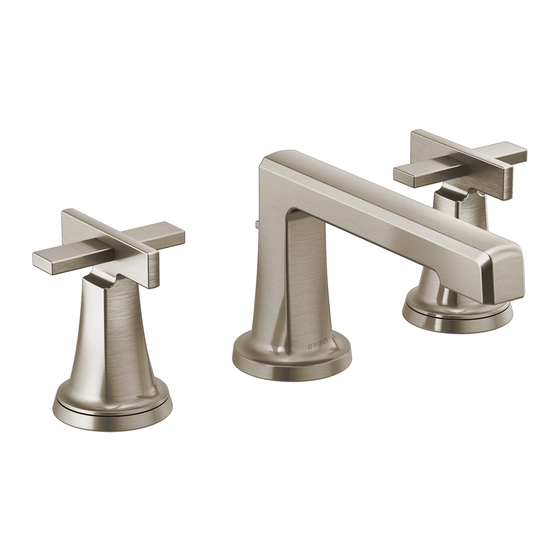

Two handle widespread lavatory faucets

Advertisement

Quick Links

Levior™
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
▲Specify Finish / Especifíque el Acabado / Précisez le Fini
You may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin:
Read all instructions prior to installation.
Lea todas las instrucciones antes de
hacer la instalación.
Veuillez lire toutes les instructions avant
l'installation.
For product & installation questions, do not return to the store. For additional help, contact customer service.
Si tiene preguntas sobre el producto y su instalación, no acuda a la tienda. Para ayuda adicional, comuníquese con el departa-
mento de servicio al consumidor.
Si vous avez des questions au sujet du produit et de l'installation, ne retournez pas au magasin. Pour obtenir de l'aide, communi-
quez avec le service à la clientèle.
www.brizo.com
TWO HANDLE WIDESPREAD LAVATORY FAUCETS
100986
LLAVES DE AGUA/GRIFOS DE DOS MANIJAS
SEPARADAS
ROBINETS À GRAND ENTRAXE POUR LAVABO
65397LF-▲LHP
65397LF-▲LHP-ECO
1
65398LF-▲LHP
65398LF-▲LHP-ECO
?
www.brizo.com
1-877-345-BRIZO (2749)
brizosupport@brizo.com
3/06/2019
Rev. C

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Levior 65397LF- LHP-ECO Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Brizo Levior 65397LF- LHP-ECO Series

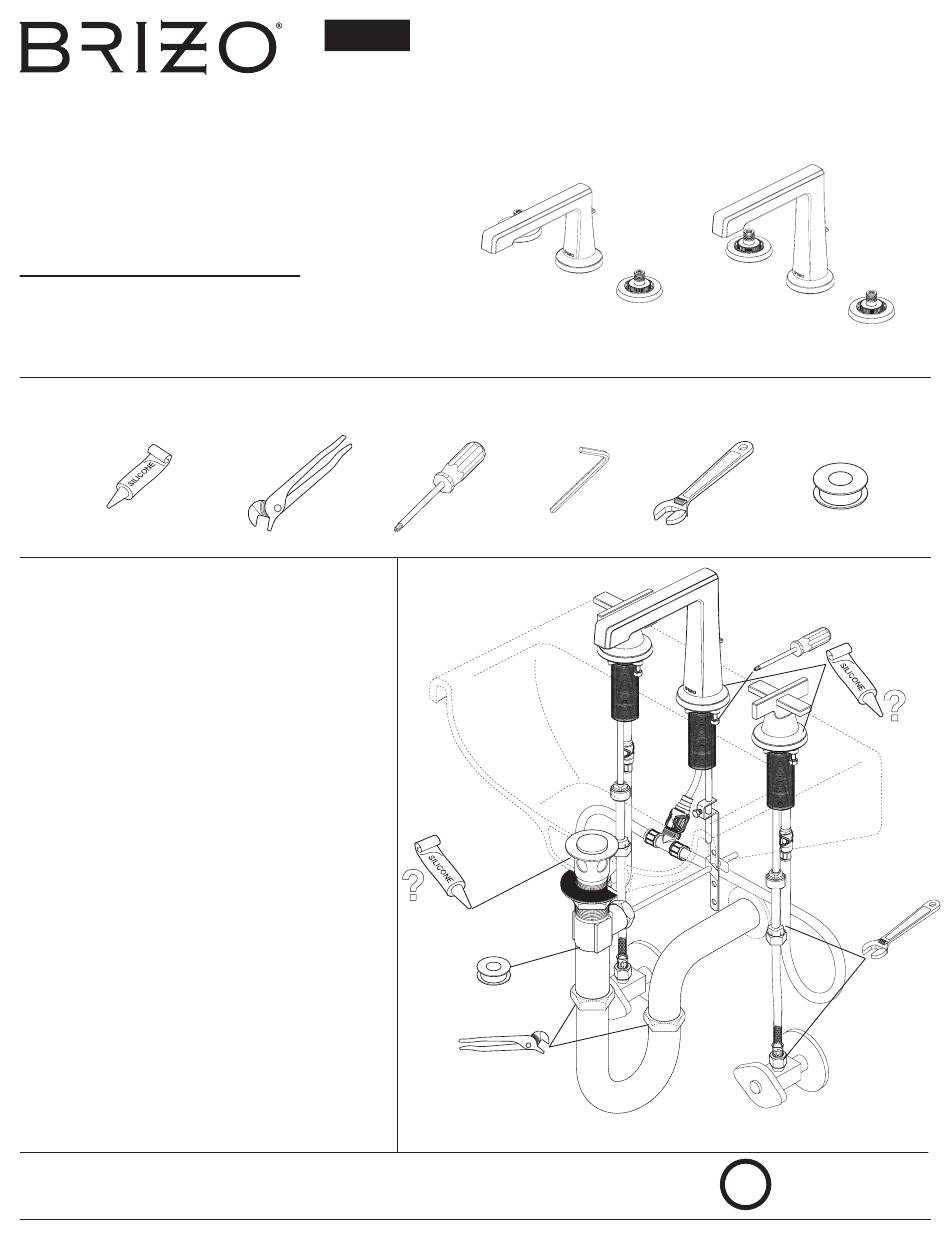

  • Page 1 Si tiene preguntas sobre el producto y su instalación, no acuda a la tienda. Para ayuda adicional, comuníquese con el departa- 1-877-345-BRIZO (2749) mento de servicio al consumidor. Si vous avez des questions au sujet du produit et de l’installation, ne retournez pas au magasin. Pour obtenir de l’aide, communi- brizosupport@brizo.com...
  • Page 2 1" (25.4 mm) 1 1/8" (28.58 mm) INSTALLATION OF VALVE ASSEMBLIES INSTALLATION OF SPOUT NOTE: When drilling holes for supply valves, it is recommended that the hole NOTE: When drilling mounting holes for the spout, it is recommended size be 1 1/8" (29 mm). Look for a blue label or dot on cold valve assembly and that the hole size be 1"...
  • Page 3 INSTALLATION OF HANDLES INSTALLATION OF HOSE ASSEMBLY NOTE: Handles sold separately. Snap the quick connect hose assembly (1) onto the spout nipple (2) and end valve nipples (3). Make sure valve cartridge is in off position. Pull down moderately to ensure each connection has been made. Snap glide ring (1) onto the escutcheon (2).
  • Page 4 1/2” (12.7 mm) IPS MAKE CONNECTIONS TO SUPPLY PLUMBING MAKE CONNECTIONS TO WATER LINES Connect flexible outlet hoses (1) to valve outlet and spout inlet Choose hook-ups for 1/2" I.P.S. connections: ports as shown. (1) Ball nose riser (3/8" O.D. copper tubing), or (2) 1/2"...
  • Page 5 POP-UP DRAIN INSTALLATION and stopper (3) as removable (4) or non- Apply silicone to underside of flange (1). Insert removable (5). Hand tighten pivot nut (1). body (2) into sink. Screw flange (1) into body Remove stopper (1) and flange (2). (2).
  • Page 6 MAINTENANCE SHUT OFF WATER SUPPLIES BEFORE SERVICING FAUCET. If your faucet leaks out of spout outlet or around handle body, replace valve cartridge (4). a. Pull up on handle (1) to remove. NOTE: It is best if you pull straight up on the handle. b.
  • Page 7 Models / Modelos / Modèles 65397LF-▲LHP, 65397LF-▲LHP-ECO RP92362 Spline Adapter and 65398LF-▲LHP, 65398LF-▲LHP-ECO Screw Adaptador con estrías y tornillo Adaptateur cannelé RP100224 et vis 15MM Cartridge Service Tool RP100223 Herramienta de Cold Cartridge servicio para el Cartucho para el lado cartucho 15 MM del agua fría Clé...
  • Page 8 RESULTING FROM REASONABLE WEAR AND TEAR, OUTDOOR USE, MISUSE (INCLUDING USE OF THE product are not covered by this warranty. Brizo Kitchen & Bath Company shall not be liable for any damage to the PRODUCT FOR AN UNINTENDED APPLICATION, FREEZING WATER, ABUSE, NEGLECT OR IMPROPER...
