Levior™
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
▲Specify Finish / Especifíque el Acabado / Précisez le Fini
You may need / Usted puede necesitar / Articles dont vous pouvez avoir besoin:
For easy installation of your Brizo
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and maintenance
information.
• To purchase the correct water supply hook-up.
Para instalación fácil de su llave
Brizo
usted necesitará:
®
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
• Comprar las conexiones correctas para el
suministro de agua.
Pour installer votre robinet Brizo
facilement, vous devez:
• LIRE TOUTES les instructions avant de
débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
• Acheter le bon nécessaire de raccordement.
www.brizo.com

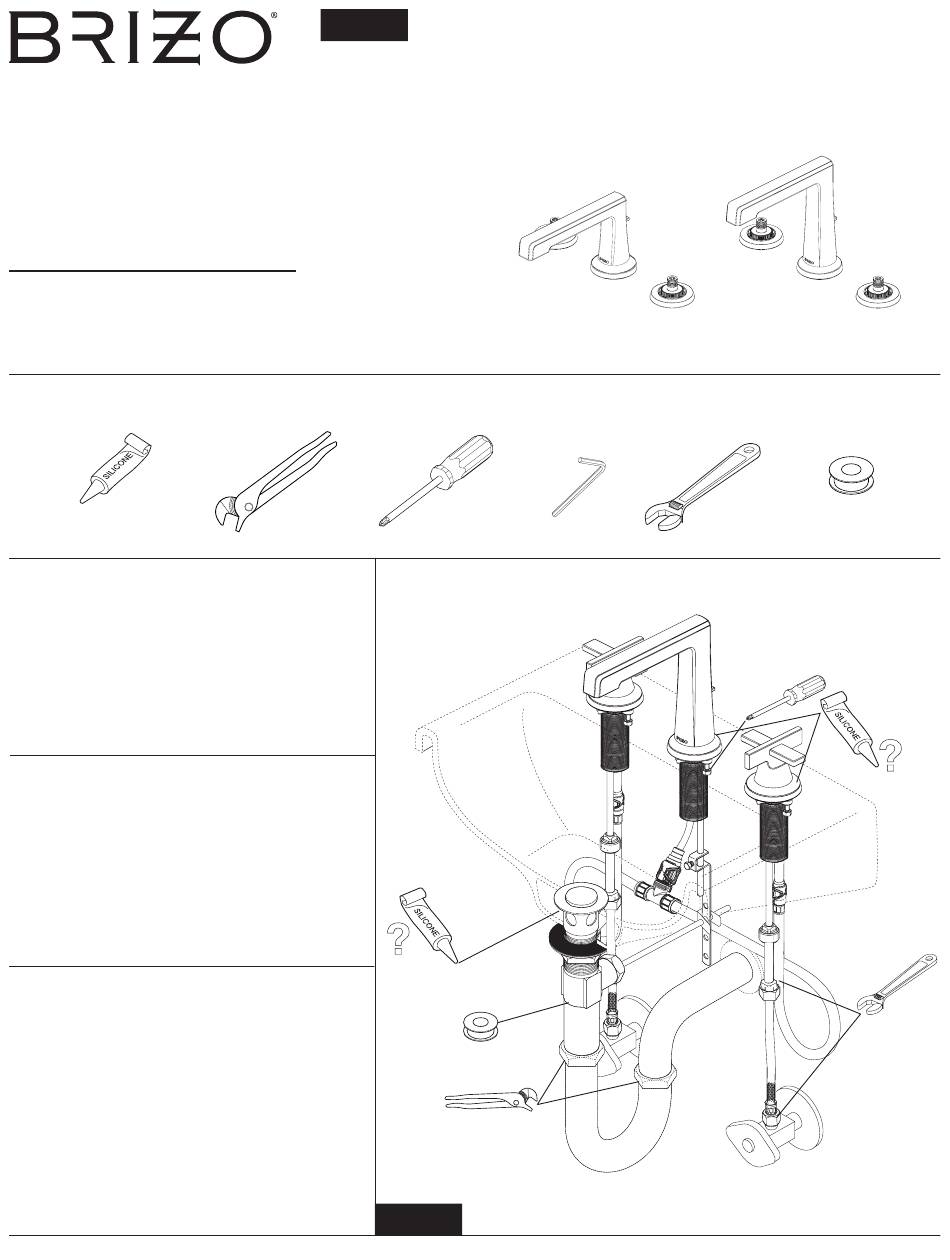

TWO HANDLE WIDESPREAD LAVATORY FAUCETS
100986
LLAVES DE AGUA/GRIFOS DE DOS MANIJAS
SEPARADAS
ROBINETS À GRAND ENTRAXE POUR LAVABO

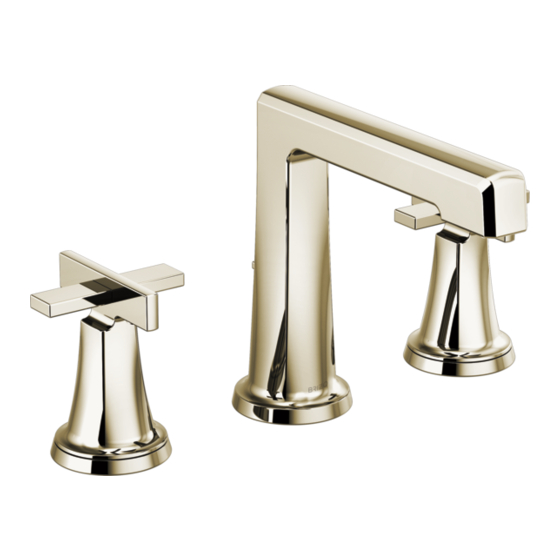

65397LF-▲LHP
65397LF-▲LHP-ECO
®
®
100986
1
65398LF-▲LHP
65398LF-▲LHP-ECO
3/12/18
Rev. B
