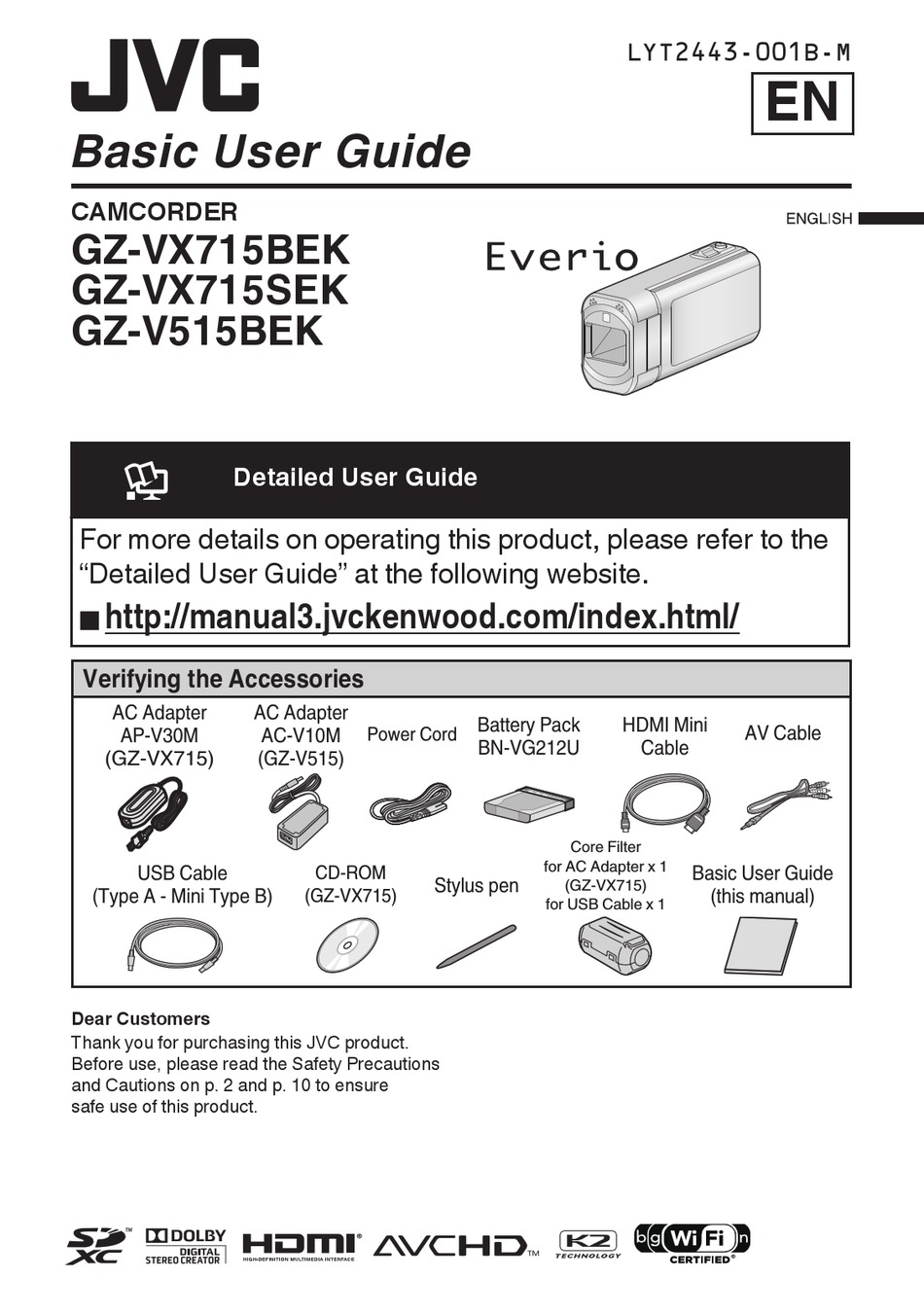

Basic User Guide
CAMCORDER
GZ-VX715BEK
GZ-VX715SEK
GZ-V515BEK
.
Detailed User Guide
For more details on operating this product, please refer to the
"Detailed User Guide" at the following website.
http://manual3.jvckenwood.com/index.html/
o
Verifying the Accessories
AC Adapter
AP-V30M
(GZ-VX715)
USB Cable
(Type A - Mini Type B)
Dear Customers
Thank you for purchasing this JVC product.
Before use, please read the Safety Precautions
and Cautions on p. 2 and p. 10 to ensure
safe use of this product.
AC Adapter
Power Cord
AC-V10M
(GZ-V515)
CD-ROM
(GZ-VX715)
Battery Pack
BN-VG212U
Core Filter
for AC Adapter x 1
Stylus pen
(GZ-VX715)
for USB Cable x 1
LYT2443-001B-M
EN
HDMI Mini
AV Cable
Cable
Basic User Guide
(this manual)
Advertisement
Table of Contents
Related Manuals for JVC Everio GZ-VX715BEK
Summary of Contents for JVC Everio GZ-VX715BEK
- Page 1 (Type A - Mini Type B) (GZ-VX715) for USB Cable x 1 Dear Customers Thank you for purchasing this JVC product. Before use, please read the Safety Precautions and Cautions on p. 2 and p. 10 to ensure safe use of this product.
-
Page 2: Safety Precautions
Safety Precautions IMPORTANT (for owners in the U.K.) When the equipment is installed in a cabinet or on Connection to the mains supply in the United a shelf, make sure that it has sufficient space on Kingdom. all sides to allow for ventilation (10 cm or more on DO NOT cut off the mains plug from this equipment. - Page 3 Make a backup of important recorded data • Do not poke your eye with the stylus pen. JVC will not be responsible for any lost data. Doing so may cause blindness or other It is recommended to copy your important recorded damages to the eye.
-
Page 4: Table Of Contents
Contents Safety Precautions ......... 2 Recording Names of Parts and Functions ....4 Video Recording ........8 Getting Started Playback Grip Adjustment ........5 Playing Back/Deleting Files on this Unit ..9 Charging the Battery Pack ..... 5 Further Information Inserting an SD Card ...... -
Page 5: Grip Adjustment
* The AC adapter shown in the illustration is AC-V10M (for GZ-V515). CAUTION Be sure to use JVC battery packs. If you use any other battery packs besides JVC battery packs, safety and performance cannot be guaranteed. Charging time: Approx. 3 h 30 m (using supplied battery pack) The charging time is when the unit is used at 25°C. -
Page 6: Inserting An Sd Card
Inserting an SD Card Insert a commercially available SD card before recording. Close the LCD monitor. Open the cover. (Base) Insert an SD card. Label ※ Turn off the power of this unit before inserting or removing a card. To remove the card Push the card inward once, then pull it out straight. -
Page 7: Clock Setting
Clock Setting Open the LCD monitor. Set the date and time. CLOCK SETTING DATE TIME 2012 The unit turns on. When the LCD When the year, month, day, hour, or minute monitor is closed, the unit turns off. item is tapped, “∧” and “∨” will be displayed. Tap “∧”... -
Page 8: Video Recording
Video Recording You can record without worrying about the setting details by using the Intelligent Auto mode. Settings such as exposure and focus will be adjusted automatically to suit the shooting conditions. In case of specific shooting scenes such as person etc., its icon is displayed on the screen. Before recording an important scene, it is recommended to conduct a trial recording. -
Page 9: Playing Back/Deleting Files On This Unit
Playing Back/Deleting Files on this Unit Select and play back the recorded videos or still images from an index screen (thumbnail display). Tap A or B to select the video Volume adjustment during playback or still image mode. Turn down Turn up the the volume volume... -
Page 10: Troubleshooting/Cautions
Do not bring the recording medium near If the above do not solve the problem, consult objects that have a strong magnetic field or your nearest JVC dealer or JVC service center. that emit strong electromagnetic waves. • Do not store the recording medium in Battery Pack locations with high temperature or high humidity. - Page 11 Do not use this unit with the European representative of JVC KENWOOD LCD monitor reversed and closed for long Corporation is: JVC Technical Services Europe GmbH periods of time.
-
Page 12: Recordable Time/Specifications
AC 110 V to 240 V, 50 Hz/60 Hz Output DC 5.2 V, 1.0 A Dimensions 83 mm x 28 mm x 40 mm (W x H x D: excluding cord and AC plug) Mass Approx. 77 g *LYT2443-001B-M* ©2012 JVC KENWOOD Corporation 0212MZR-SW-VM...
