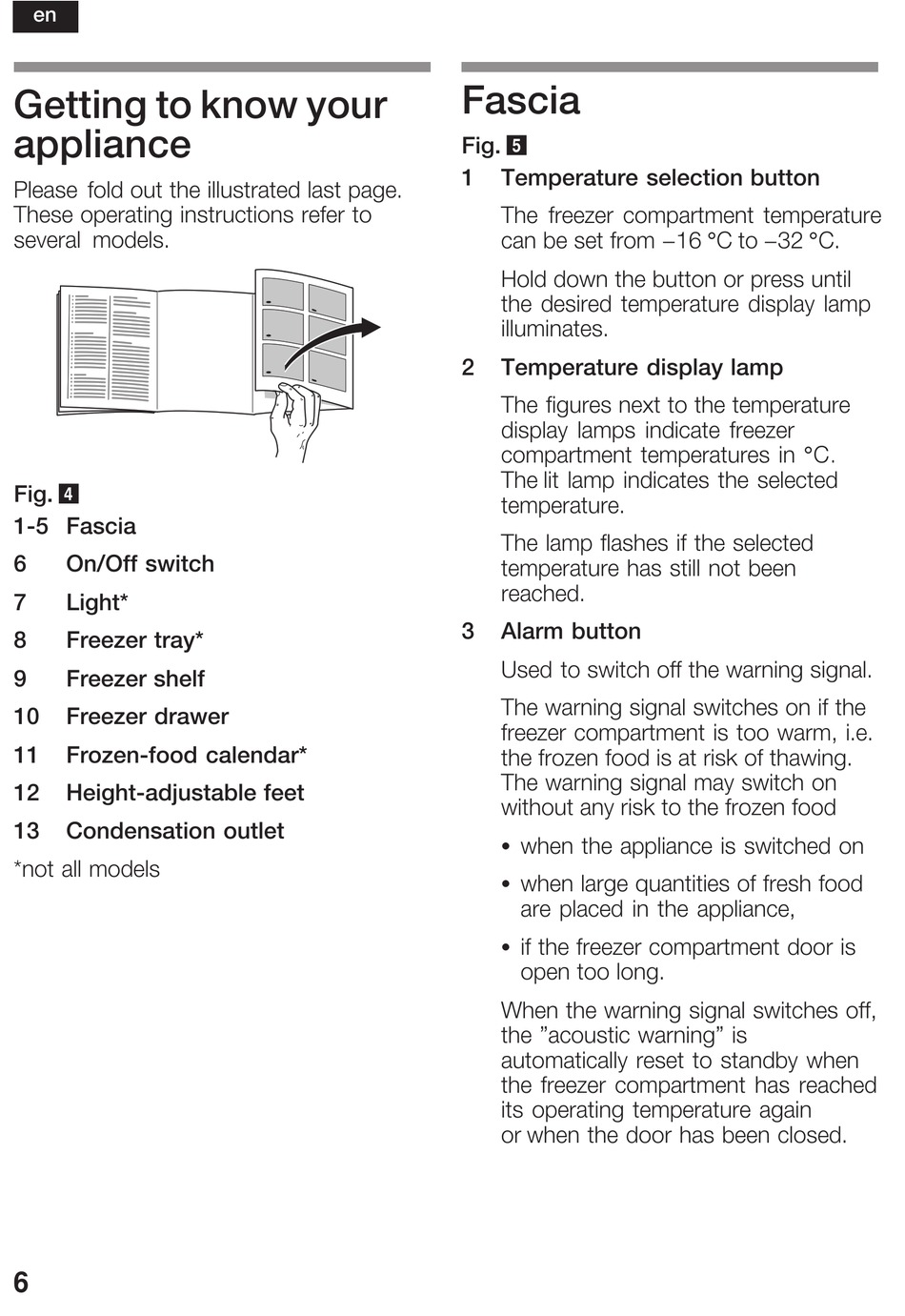

Getting to know your
appliance
Please fold out the illustrated last page.
These operating instructions refer to
several models.
Fig. 4

1 5 Fascia

6 On/Off switch
7 Light*
8 Freezer tray*
9 Freezer shelf
10 Freezer drawer
11 Frozen food calendar*
12 Height adjustable feet
13 Condensation outlet
*not all models
6
Fascia
Fig. 5
1 Temperature selection button
The freezer compartment temperature
can be set from -16 C to -32 C.
Hold down the button or press until
the desired temperature display lamp
illuminates.
2 Temperature display lamp
The figures next to the temperature
display lamps indicate freezer
compartment temperatures in C.
The lit lamp indicates the selected
temperature.
The lamp flashes if the selected
temperature has still not been
reached.
3 Alarm button
Used to switch off the warning signal.
The warning signal switches on if the
freezer compartment is too warm, i.e.
the frozen food is at risk of thawing.
The warning signal may switch on
without any risk to the frozen food
S when the appliance is switched on
S when large quantities of fresh food
are placed in the appliance,
S if the freezer compartment door is
open too long.
When the warning signal switches off,
the "acoustic warning" is
automatically reset to standby when
the freezer compartment has reached
its operating temperature again
or when the door has been closed.
