Summary of Contents for Amica AWI712S

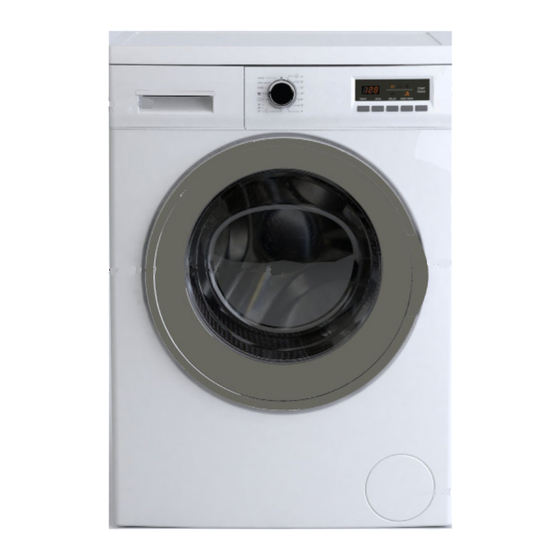

- Page 1 AWI712S INSTRUCTION MANUAL WASHING MACHINE Please read this User Manual carefully before using the appliance! IO 01251/1 (03.2015)
-
Page 2: Table Of Contents
CONTENTS Basic Information........................3 Notes on Safety......................4 Installing the Washing Machine....................7 Understanding the symbols on clothes labels..............9 Description of control panel..................10 Using the appliance....................14 Table of programmes..................15 Troubleshooting........................16 Maintenance and Cleaning..................18 Practical tips on washing.....................19 Specification......................22 Service and Warranty....................22 Product Fiche......................23 In accordance with European Directive 2012/19/UE and Polish legislation regarding used electrical and electronic goods, this appliance is marked with the symbol of the crossed-out waste container. -
Page 3: Basic Information
BASIC INFORMATION From today, washing will be easier than ever before. The Amica washing machine combines exceptional ease of use with excellent effectiveness. Once you have read the instructions, operating the washing machine will not be a problem. Before being packed and leaving the factory, the safety and functions of this washing machine were carefully tested. -
Page 4: Notes On Safety
NOTES ON SAFETY Use only those detergents and additives which lDetergents are designed for automatic washing machines, especially when using the TOWELS programme. Do not use any agents containing solvents, as these may damage certain parts of the machine, or cause them to emit poisonous gases. - Page 5 NOTES ON SAFETY Unplug the machine before preparing the l Transport machine for transport. Do not transport the washing machine if drum locking bolts are not in place. See the chapter INSTALLING THE MACHINE. Keep the appliance in upright po- sition when transported.
- Page 6 NOTES ON SAFETY Checking stability Once the washing machine is in position and levelled, it must be checked to ensure it rests firmly on all four legs. In order to check this, press down each corner of the ap- pliance in turn to see if it moves. Safe, long-term and relia- ble operation of the washing machine depends on it being correctly positioned and level.
-
Page 7: Installing The Washing Machine
INSTALLING THE MACHINE I. Remove the protection used for transporting the appliance (keep the locking bolts for future use, e.g. when moving house). Unscrew the 4 locking bolts with a spanner. Stop up the holes with the stoppers Remove the rubber and plastic transport enclosed in the accessories bag. - Page 8 INSTALLING THE MACHINE III. Connecting the water supply Use the new hoses sup- plied with the machine. Do not re-use old hoses. A water supply hose with seals is inside the drum of the machine. Water pressure min. 0,1 MPa (1 bar), max.1 MPa (10 bar). Supply the machine with cold water after connecting, make sure the hose is not twisted after connecting the hose and the valve, check they are sealed tight...
-
Page 9: Understanding The Symbols On Clothes Labels
UNDERSTANDING THE SYMBOLS ON CLOTHES LABELS I. Washing boiling normal normal DO NOT temp 60 temp 40 wash! temp. 90 delicate handwash II. Chemical cleaning petrol DO NOT solvents except TRI only dry clean! III. Spin dryer DO NOT normal high dry! IV. -
Page 10: Description Of Control Panel
DESCRIPTION OF CONTROL PANEL ■ ■ ■ ■ ■ ■ ■ ■ 1. Programme selector knob 2. Display 3. Temperature selector button 4. Spin speed button 5. Delay button 6. Rapid wash button 7. START/PAUZA button 5+6. Child Lock... - Page 11 DESCRIPTION OF CONTROL PANEL 1. Programme selector knob Choose the appropriate wash programme as required, depending on the degree of soil, and type and amount of laundry loaded, which ensures better results and more effective washing. Once the wash programme is started, turning the programme selector knob to another position (except ) does not change the previously selected programme.
- Page 12 DESCRIPTION OF CONTROL PANEL 6. Rapid Wash button The Rapid Wash function reduces the total wash time saving money while reducing energy consumption and water consumption. Pre-wash is recommended when washing lightly soiled laundry. NOTE 1: The Rapid function is not available for all programmes (see Table of wash programmes).
- Page 13 SPECIAL PROGRAMS 1. Allergy Safe programme: This programme is designed for washing clothes of children and people with sensitive skin. Main wash is carried out at a temperature of 60°C (temperature setting: 60/50/40/30/-- „cold water”), followed by four rinses. Additionally, during all stages of rinsing water is heated to 30°C. 2.
-
Page 14: Using The Appliance
USING THE APPLIANCE I. Select Programme 1. Set the programme selector knob to the desired programme (see the table further on). 2. Change temperature, spin speed or activate available additional functions to modify the programme to your individual needs. 3. Press the [Start/ Pause] button. II. -
Page 15: Table Of Programmes
TABLE OF PROGRAMMES * - standard programmes for washing cotton fabrics at 60°C and 40°C. These programmes are suitable for washing normally soiled cotton fabrics. These are the most effective programmes for washing these type of fabrics, taking into account the total energy and water consumption. Note: Real water temperature may differ from the declared wash cycle temperature. -
Page 16: Troubleshooting
TROUBLESHOOTING Problem Probable cause/Solution The washing machine is not - Turn the tap on Clean the mesh filter on the supply hose. working - Close the door of the appliance. Press the [Start/ Pause] button. Water leaks - Connect the water intake properly. The load in the appliance has not - Replace the load evenly in the drum, clean the pump filter. - Page 17 TROUBLESHOOTING The fault indicator lights The washing machine has a system of CODES shown on the display, which helps to locate minor operating faults and identify their cause. Fault is indicated by the symbols: Display Reason Solution indication Low pressure, no Unscrew the water valve, check the water inlet hose and water in the machine filter, check the water pressure.
-
Page 18: Maintenance And Cleaning
MAINTENANCE AND CLEANING Never clean the product’s casing or plastic parts using solvents or strong, abrasive cleaning agents (e.g. washing powders or creams)! Only use delicate liquid cleaning agents and soft cloths. Do not use sponges. Clean the pump filter every 20 washes or so. -
Page 19: Practical Tips On Washing
PRACTICAL ADVICE REGARDING WASHING I. Cleaning and It is recommended to use powder or liquid general purpose purifying agents detergents for all temperatures in a range as per the deter- gent Producer’s recommendations indicated on the product packaging. Detergents Pour the detergent into the drawer compartment marked Pour the pre-wash detergent into the drawer compartment marked Liquid detergents... - Page 20 PRACTICAL ADVICE REGARDING WASHING V. Water hardness Hard water causes sediment to form. Information about water hardness is available from your nearest water works. It is advised that water softeners are used for every wash. Power cuts or unplugging the machine does not cancel the set- VI.
- Page 21 PRACTICAL ADVICE REGARDING WASHING The washing machine is equipped with an interlock which prevents IX. Door the door from being opened during washing. Once a washing cycle interlock is complete, the door interlock is automatically released. In order to open the door during the wash program, press PAUSE button and wait to unlock the door.
-
Page 22: Specification
SPECIFICATION -Type AWI712S -Rated voltage 220-240V / ~50Hz. -Rated power 2200 W -Current protection 10 A -Drum capacity max 7 kg -Water pressure min 0,1 MPa (1 bar) max 1 MPa (10 bar) -Dimensions/Height/Breadth/ Depth 845 / 597 / 527 [mm]... -
Page 23: Product Fiche
(EU) No. 1015/2010 of 10 November 2010 on the implementation of the Directive of the European Parliament and of the Council No. 2009/125/EC on the Eco design requirements for the household washing machines). Amica Supplier’s name or trade mark AWI712S Type Rated capacity 7,0 kg...
