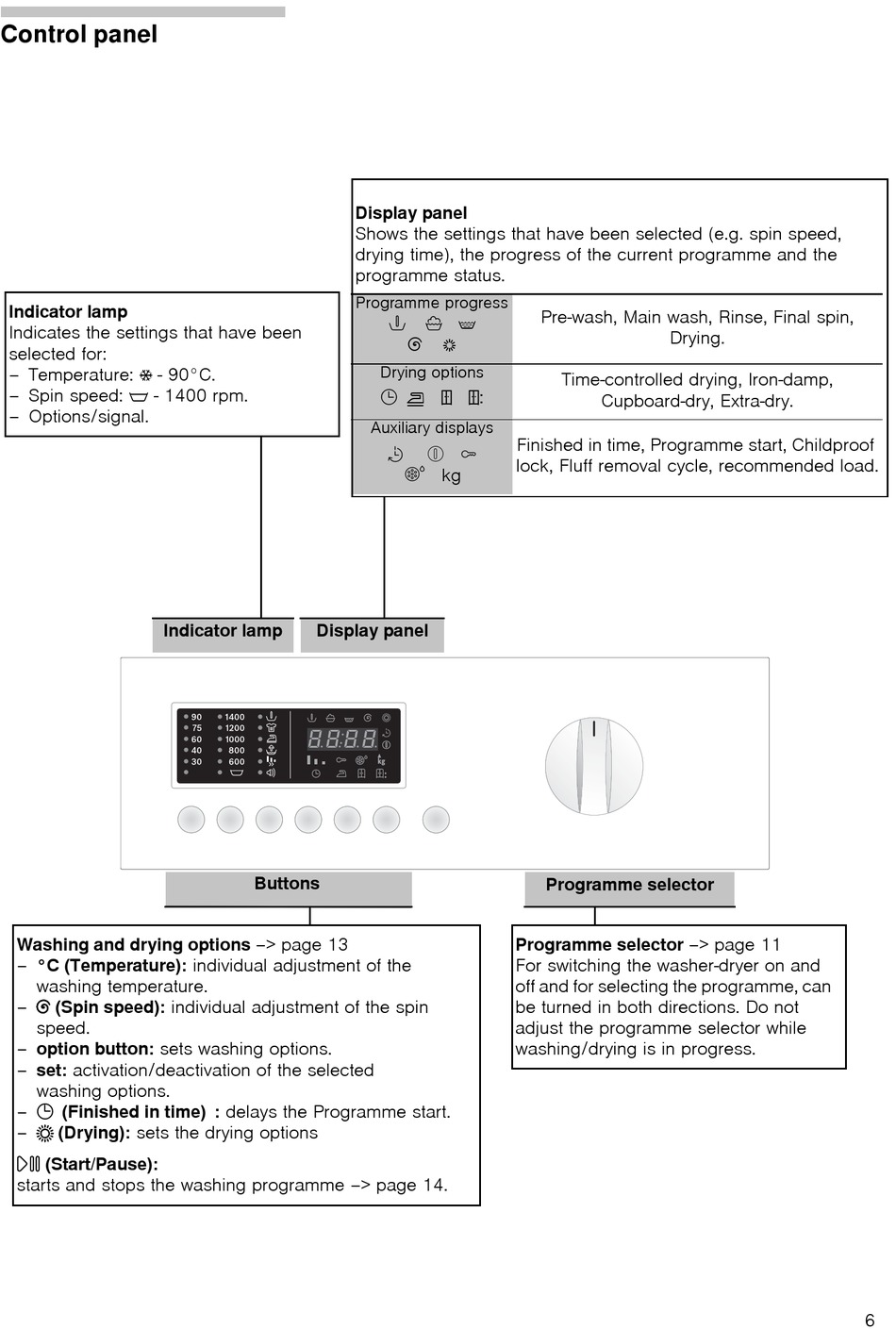

Control panel

Indicator lamp
Indicates the settings that have been
selected for:
– Temperature: Ž - 90°C.
– Spin speed: $ - 1400 rpm.
– Options/signal.
Indicator lamp
Washing and drying options –> page 13
– °C (Temperature): individual adjustment of the
washing temperature.
– B (Spin speed): individual adjustment of the spin
speed.
– option button: sets washing options.
– set: activation/deactivation of the selected
washing options.
– 0 (Finished in time) : delays the Programme start.
– 5 (Drying): sets the drying options
A (Start/Pause):
starts and stops the washing programme –> page 14.
Display panel
Shows the settings that have been selected (e.g. spin speed,
drying time), the progress of the current programme and the
programme status.
Programme progress
T
B
Drying options
5 Q e e:
Auxiliary displays
2
l
Display panel
Buttons
Pre-wash, Main wash, Rinse, Final spin,
N '
'
Time-controlled drying, Iron-damp,
Finished in time, Programme start, Childproof
% E
lock, Fluff removal cycle, recommended load.
kg
Programme selector
Programme selector –> page 11
For switching the washer-dryer on and
off and for selecting the programme, can
be turned in both directions. Do not
adjust the programme selector while
washing/drying is in progress.
Drying.
Cupboard-dry, Extra-dry.
6
