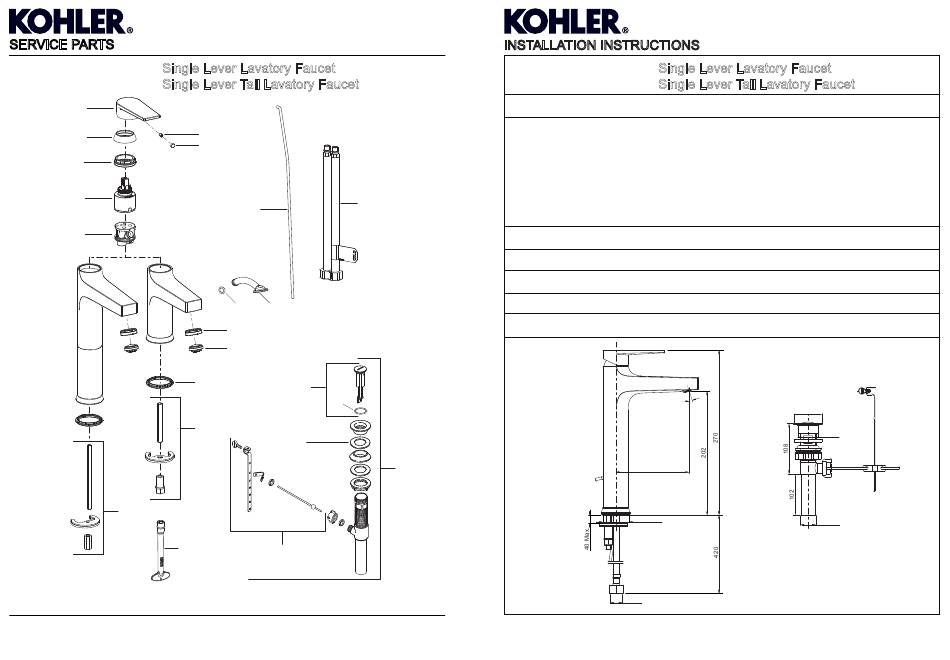

Kohler TAUT 74013T-4 Installation Instructions

SERVICE PARTS
74013T-4 Single Lever Lavatory Faucet
74026T-4 Single Lever Tall Lavatory Faucet
1242786**
1209778**
1209777
1292054
1209774
74026T-4:836664
1228834
**Color code must be specified when ordering.
NOTE: For all Asia pacific regions (excluding China) add SP (SPxxxxxxx**) in front of the part number when ordering.
1278331-2A-B
833438
3008523
74013T-4:1024405
74026T-4:880096
1226072**
870817 74013T:1280659
74026T:1280658
1281228
1213964
1209787
880008**
1080817
74013T-4:836549
880406
880037
TAUT
INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. If possible, install this faucet before installing the lavatory.
3. Inspect the supply tubing for damage and leakage. Replace and maintain as necessary.
4. Observe local plumbing codes.
5. Shut off the water supplies to the fitting.
HANDLE OPERATION
Lift handle gently. Turn clockwise for hot water, turn counter-colckwise for cold water.
STANDARD APPLICABLE
Special model meets or exceeds the following at date of manufacture: TIS
ROUGH-IN DIMENSIONS
1121328**
4 1278331-2A-B
74013T-4 Single Lever Lavatory Faucet
74026T-4 Single Lever Tall Lavatory Faucet
20°
120
Ø33~Ø36
G1/2˝
TAUT
Ø54
Ø36.5
Ø31.75
74026T-4
1
