Summary of Contents for Gorenje NRS9182CXB

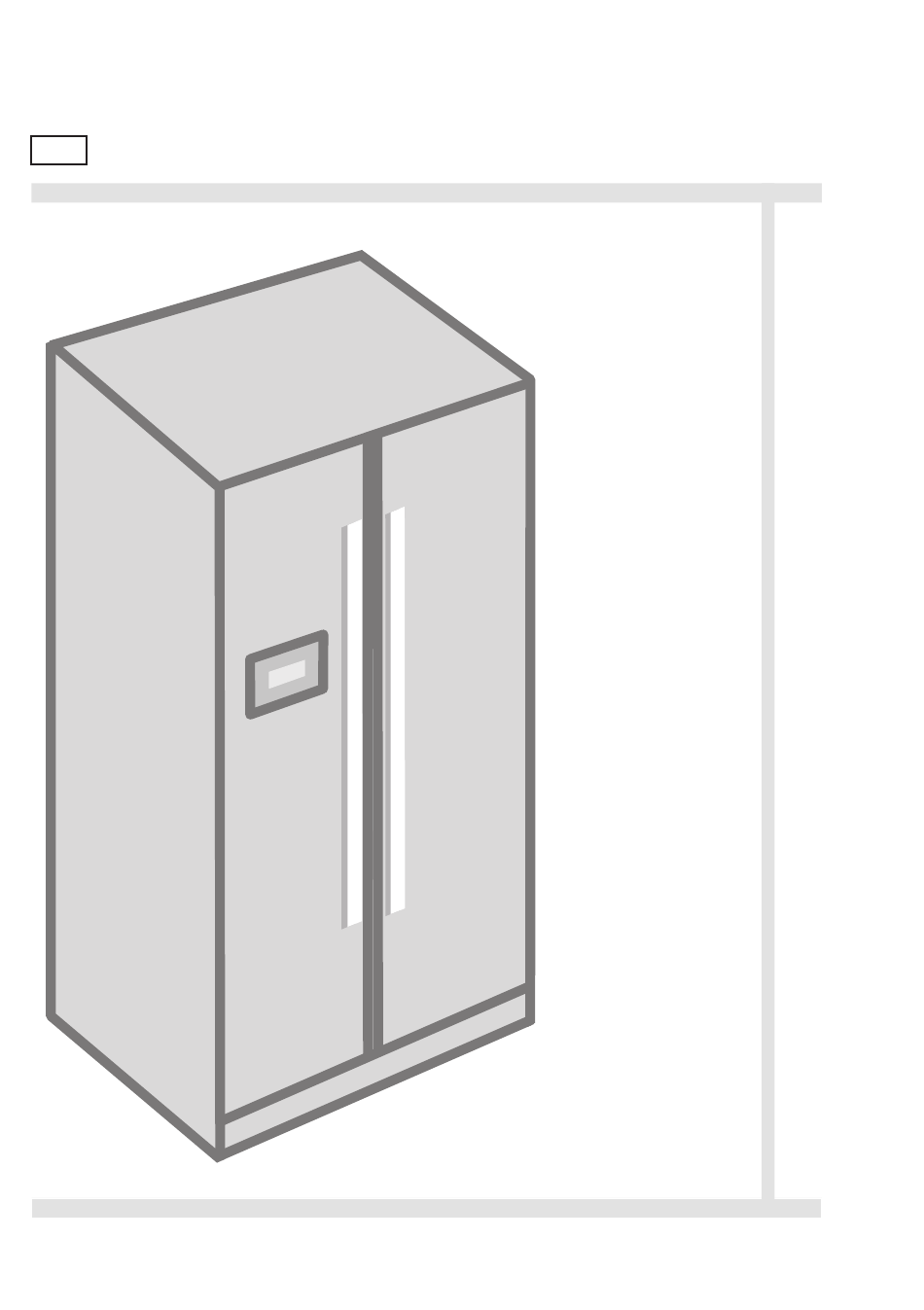

- Page 1 User Guide Manual Side by Side Refrigerator Code : ADQ501-10a...
-
Page 2: Table Of Contents
Disposal of Used Electrical & Refrigerant Information Electronic Equipment Refrigerant R-600a Charge 0.064kg The meaning of the symbol on the product, its accessory or packaging indicates that this Blowing Agent C-pentane product shall not be treated as household waste. Please, dispose of this equipment at Observe Ambient Temperature your applicable collection point for the recycling of electrical &... -
Page 3: Be Sure To Keep For Safety
Be sure to keep for safety! Never use a damaged power cord or plug, or loose main socket. * Read these safety instructions thoroughly and carefully • There is a risk of fire, electric shock or serious before using. Please keep this user guide on hand for injury. - Page 4 Never store any flammable gas or liquid in the Connect to portable water supply only. refrigerator. Never use flammable gas, benzene, thinners, Do not let children step on the cabinet shelves gasoline, spray etc. near the refrigerator. or vegetable cases. •...
-
Page 5: Installation Guide
Installation Guide Install the door handles S Read these safety instructions carefully before use and After final installation and door levelling, install the fridge follow precautions for your safety. door handles. Precautions in installation and Note power connection Both handles are installed in the same way. ■... -
Page 6: Installation Preparation
Installation Preparation Check if the refrigerator can pass a doorway or enter a door first. Dimensions (including Door Handles) 1704 1649.3 Find a suitable place to install Ensure sufficient space from the back of refrigerator to the wall for free air ventilation. 383.5 512.5 Avoid direct sunlight. -
Page 7: Door Removal/Replacement
Door removal/Replacement Removing Freezer Door Pull out bending tube guide and the left water tube. If the refrigerator can not pass (Dispenser Models Only) through a door during installation, follow these steps. (This guide refers to several models. The real features are model dependent.) Removing Refrigerator Door Unscrew top hinge cover with a screw driver. - Page 8 Replacing Refrigerator Door Replacing Freezer Door Insert the water tube into the hole of the bottom hinge Insert the bottom hole of the refrigerator door straight pin first(Dispenser Models Only). Insert the bottom of into the bottom hinge pin. freezer door into the bottom hinge pin. Let the top of the door close and insert the top hinge pin to the top hole of the refrigerator door.
-
Page 9: Refrigerator Leveling & Door Adjustment (If Needed)
Refrigerator Leveling & In case refrigerator door is lower than freezer door... Door Adjustment (If needed) Insert a screw driver (flat tip) into a groove of the right S The refrigerator must be level in order to maintain wheel (bottom of refrigerator) and turn it clockwise until optimal performance and desirable front appearance. -
Page 10: How To Install Water Line
How to install Water Line Installation Procedure (Dispenser models only) (Dispenser models only) 1. Join Connector to the tap water line 1. The water pressure should be 2.0~12.5 kgf/cm² (1.96 Figure A ~12.26 Bar) or more to run the automatic icemaker. •... - Page 11 6. Fasten the Water Tube. 1) Fasten the Water Tube with the [Fastener A] . 2) Check if the tube is bent or sqeezed. If so, set it right to prevent any water leak. Fastener A 4. Attach the Filter Box 1) Screw and fasten the filter holder to the left/right side of Water tube the back of refrigerator.
-
Page 12: Control Panel
Control Panel Lock button for control panel Press button for more than 3 seconds to activate and prevent settings from being unintentionally changed. To unlock, press for more than 3 seconds. display goes out. Indicators for water/ice dispenser A orange LED above the icon will light up to indicate your selection for dispenser. -
Page 13: Temperature Control
Temperature Control S When this refrigerator is first plugged in, the temperature mode is set to 19°C / 4°C. Freezer Compartment Push the FRZ SET. button and the setting temperature changes as the figure shows. >>> Sequential Temperature Change <<< Faster Freezing... -
Page 14: How To Use The Interior Parts
How to use the interior parts ■ Dispenser Models NOTE: This guide covers several different models. The refrigerator you have purchased may have some or all of the items listed below. The locations of the features shown below may not match your model. 1. - Page 15 Food Storage Tips Wash foods before storing. Divide and separate foods into smaller pieces. Place watery foods or foods with a lot of moisture in front shelves (close to door side). If they are placed close to the cold air spout, they can be frozen.
-
Page 16: How To Use The Dispenser
How to use the Dispenser How to use the Automatic Icemaker (For Dispenser models) (For Dispenser models) S Select WATER / CUBED ICE • About 7 icecubes (19~20 times a day) are made at one ICE(Optional) and press the cup on the PUSH pad for time. -
Page 17: How To Adjust The Automatic Ice Maker Water Supply
How to adjust the 5. Push the dispenser lever and receive water until it stops. automatic ice maker water supply Please ensure that water supply is adjusted to make the appropriate sized ice(80~85% of ice tray) S If the ice is too small or too large, ice-making and icetranferring malfunctions may occur. -
Page 18: Refreshment Compartment
Refreshment compartment 7. If the measured water supply is less or more than the proper water supply, take action as below. 7-1) If less than the minimum of proper water supply Change the water supply set value to greater than ‘5’ by pressing the dispenser button. -
Page 19: Care & Cleaning
Care & Cleaning Be sure to unplug first ! * Full - option models illustrated. ❶ Dispenser Water Shelf ❸ Icecubes storage Case • Remove the water shelf and clean it. (The spill shelf • Removing: Pull the case assembly forward to is not self-draining.) remove. - Page 20 How to Clean ❹ Freezer & Refrigerator Shelvesk • Open the doors fully, then pull the shelves forward to remove. Interior Parts • Use cloth with water and mild detergent to clean. ❺ Vegetable Case & Fruit Case • Pull forward and lift up a little to remove. Door Packing •...
-
Page 21: Before You Call For Service
Before You Call for Problem Strange sounds from the Service... refrigerator. Please check the following troubleshooting tips before you call for service! Checkup Point Problem ❶ Is the floor beneath the refrigerator uneven? It never gets cold inside. ❷ Is the space between the refrigerator back and the wall Freezing &... -
Page 22: Something Strange? Don't Worry. Here Is The Answer
Something strange? Don’t worry. Here is the answer. Case Explanation Front and side of • Pipes (refrigerant vessel) are placed beneath the Heat refrigerator feels warm surface to prevent moisture forming on it. or hot. • When you close the door and then open it again immediately, the door is not easy to open.
