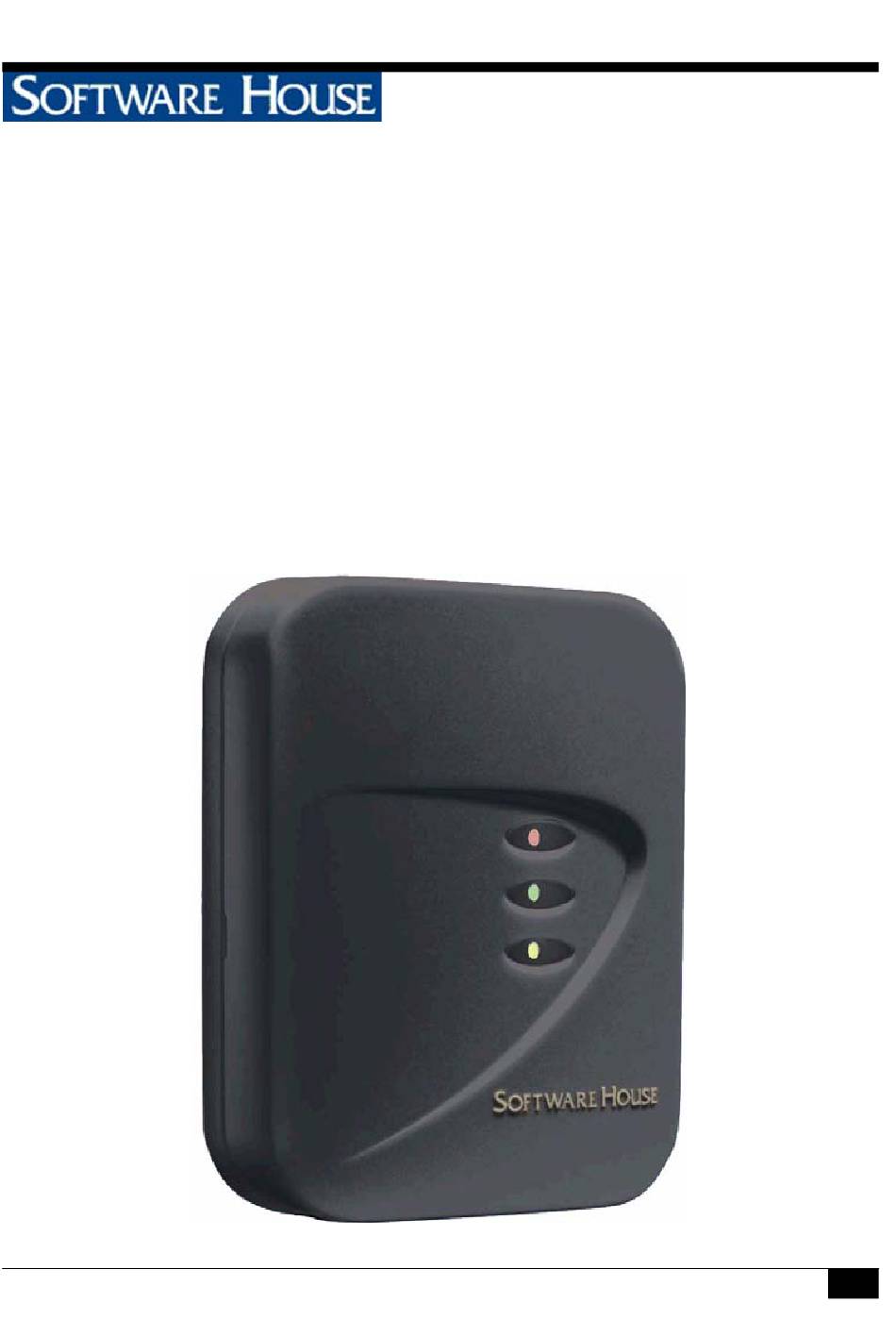

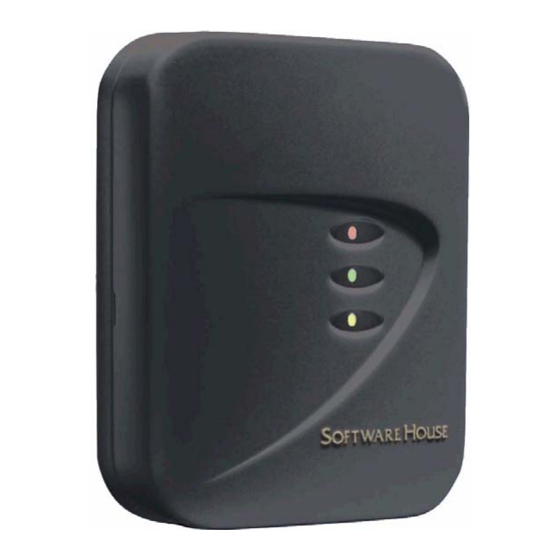

- Page 1 Model SWH-4x00 Contactless Multi-Technology 125 KHz and 13.56 MHz Reader Installation Guide Version G0 Part Number UM-090 March 2011...
-
Page 2: Table Of Contents
CONTENTS Introduction ..........3 Features . -
Page 3: Introduction
Wiegand. It also has the ability to read and verify the PIN on a Smart Card. This feature is enabled with the use of program cards. Please contact Software House® for more information on the PIN-on-Card function. TABLE 1. Compatible Credential Formats - Model SWH-4100 HID®... -
Page 4: Features
FEATURES Universal compatibility with most 125 kHz Prox (including all HID® Prox formats), all ISO 15693, and ISO 14443A credentials (badges, disk tags and key fobs). Reads both 125 kHz and 13.56 MHz credentials in the same reader. Electrical protection (reverse polarity diode protection on power lines). Data lines: high-speed transient voltage suppressor diodes. -
Page 5: Mounting
MOUNTING Mount the single-gang backplate (with tamper magnet installed) onto the wall. FIGURE 1. Model SWH-4x00 Reader Backplate (includes tamper switch magnet) NOTE Mounting holes fit standard U.S. single-width electrical box and standard European (EMEA) electrical box hole patterns. Mount the reader module directly to the backplate and then snap the front cover in place as indicated in Figure 2. - Page 6 FIGURE 2. Mounting Assembly (including 1 optional isolation spacer) Please note that Figure 2 shows the SWH-4100 reader and cover plate. Although the SWH-4200 keypad reader and front cover plate differ, the mounting assembly is the same as the SWH-4100.
-
Page 7: Installation Considerations
INSTALLATION CONSIDERATIONS An isolation spacer available from Software House may be used to improve the read range when mounting the reader to a metal surface. Part number: SWH-SPACER-BLK or SWH-SPACER-LGR To optimize reader range use the number of blackplates as indicated in Table 2. -
Page 8: Wiring
NOTE If two readers are being placed back-to-back on a wall less than 4 inches thick, maximum performance can be achieved by using a metal separation plate and then using isolation spacers as necessary. WIRING SWH-4x00 models have twelve terminals as noted in Table 3. The terminal strip is removable for easy installation and wiring. -
Page 9: Installation Notes
Table 4 indicates maximum wiring distances per Wiegand standard with the three most common gauges of cable. TABLE 4. Maximum cable distance for 18, 20, or 22 AWG wire Wire Gauge 18 AWG 20AWG 22 AWG Cable 500 feet 300 feet 200 feet Distance (152 meters) -
Page 10: Troubleshooting
FIGURE 3. Normally Closed Wiring for Reader Tamper TROUBLESHOOTING If the operation of a component is in doubt, substitute a known good component and retry the system. Always verify wiring against the provided wiring information before powering up the reader. TABLE 5. - Page 11 TABLE 5. Error Conditions and Possible Solutions Condition Possible Solutions The green LED Verify that the door strike is wired correctly. Refer does not light but to the appropriate wiring diagram in your the door strike controller manual. Disconnect the wire from pin 7 unlocks the door (green LED) and connect pin 7 to pin 2 (ground).
-
Page 12: Model Swh-4X00 Technical Specifications
Twelve PIN code entry keys 0-9, (Model SWH-4200 only) Command/Enter, and CE (Clear Entry) Standard Color: Black (other colors available; contact your Software House representative) Dimensions with backplate 4.37" × 3.31" × 1.10" (height/width/depth): (110.99 × 84.07 × 27.94 mm) Power Supply Rated Voltage: 9.4 to 16 VDC 125 mA... - Page 13 Serial Number Read Fixed Wiegand bit stream option SmartFrame® encrypted MIFARE Sector read and conversion to Wiegand. Consult your Software House representative for available reconfiguration cards for your reader. 8-bit burst Wiegand PIN code (Model SWH-4200 only) PIN-on-card featured (Model SWH-4200...
-
Page 14: Fcc Digital Device Limitations
Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and television reception. CAUTION: Changes or modifications not expressly approved by Software House for compliance could void the user’s authority to operate this equipment. -
Page 15: Ul Standards Compliance
This reader has been tested by Underwriters Laboratories, Inc. for standard UL 294, Access Control System Units, and has been tested for compliance with Software House Controller Model # iSTAR Pro (STAR008W-64A). UL has not evaluated the RS-485 Output of this reader. -
Page 16: Ce Marking
CE MARKING Hereby, Software House declares that this equipment, if used according to the instructions, is in compliance with the essential requirements and other relevant provisions of the RTTE Directive 1999/5/EC. For use in all countries of the EU. A Declaration of Conformity exists for the SWH-4100 and SWH-4200 Multi-technology readers. - Page 17 Copyrights and Trademarks This document contains proprietary information of Tyco International Ltd. and is furnished to its customers solely to assist in the installation, testing, operation and maintenance of the equipment described. This document may not be reproduced in whole or in part without the written approval of Tyco International Ltd.
