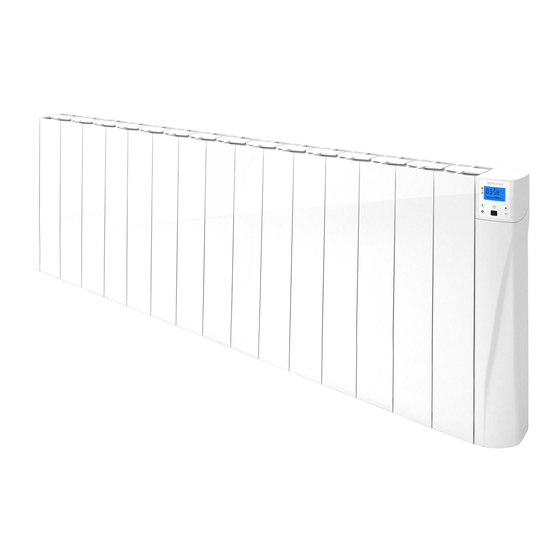

- Page 1 conservatory Digital electric conservatory radiator with Wi-Fi INSTRUCTION & INSTALLATION GUIDE...
- Page 2 This product is filled with a precise amount of special oil that does not need any maintenance. Any repairs requiring the opening of the oil tank must only be done by an competent professional or Harmoni after-sales service personnel, who should also be notified if an oil leak is noticed.
-
Page 3: Table Of Contents
Introduction Harmoni digital radiators are manufactured with high quality components and include an exclusive elec- tronic temperature programmer. Harmoni digital radiators meet all safety and efficiency requirements and are for fixed installations only. Harmoni digital radiators include: • TFT Screen •... -
Page 4: Harmoni Technical Specifications
1. Harmoni Technical Specifications MODEL LUGPHSC1100 LUGPHSC1300 LUGPHSC1500 No. Elements DIMENSIONS Width (mm) 1,140 1,300 Height (mm) Depth (mm) Installed Depth (mm) MECHANICAL CHARACTERISTICS Armoured steel heating element High purity aluminium Thermal oil PC/ABS panel with touch control panel Left side cover... -
Page 5: Harmoni System Installation
2. Harmoni system Installation 2.1. Mounting The product works by means of natural air convection (Figure 1). In order to achieve optimal functioning and an even distribution of heat, the lower part of the product, once mounted on the wall, must be at least 10-12cm from the floor, and 30cm at the most. -
Page 6: Template Measurements Per Model
400 mm 364 mm 444 mm 1500T 880 mm 400 mm 444 mm 3. Harmoni system Information & Instructions 3.1. Touchpad Settings / Back ON/OFF / Confirm Decrease temperature / Move down Increase temperature / Move up Manual mode/ Automatic mode... -
Page 7: Screen
3.2. Screen Selected temperature Automatic mode Current time and day Pre-program mode Heating element on Hourly programming Comfort mode Wi-Fi connection indicator Eco mode Open Windows indicator Anti-Frost mode Energy consumption indicator Locked keypad Manual mode 3.3. Turn On and Off To turn the product on press the button once. - Page 8 3.4.1. Set the day and time To set the day or time select the CLOCK option. Use the buttons to select the correct time and press the button to confirm. Then use the buttons to select the correct minutes and press the button to confirm.
-
Page 9: Locking Touchpad
3.5. Locking touchpad The buttonpad can be locked using the control panel or the Harmoni App. To lock or unlock the keypad using the product control panel, press and hold the buttons together for 3 seconds. The symbol will appear to the right of the screen. To unlock the keypad, press and hold the buttons together for 3 seconds. - Page 10 3.6.2 AUTOMATIC mode When automatic mode is selected, the programming already established in the product will be activated. You can choose between the four pre-installed schedules in your Harmoni product: Pre-programs: COMFORT PRE-PROGRAM 1...
- Page 11 If you want to create your own programming: STEP 1 1. Select COMFORT: Temperature between: 19 – 30°C. Use the buttons to adjust the temperature. Press to confirm. 2. Select ECO: Temperature between: 7.5 – 18.5°C. Use the buttons to adjust the temperature. Press confirm.
-
Page 12: Advance Features Of The Harmoni System
3.7. Advanced features of the Harmoni system The Harmoni system includes three advanced functions: Open Windows, Balance and Adaptative Mode. To activate or deactivate one of the functions below, press the button to access the settings menu. Use the buttons to scroll through the menu until you find the POWER submenu. Press the... -
Page 13: Maintenance & Cleaning
They must be separated to optimize the recovery and recycling of all of the components and materials and reducing the impact to human health and the environment. The symbol of the container crossed out over a horizontal line is marked on all of Harmoni... -
Page 14: Guarantee
Harmoni. 5.1. Any incident that you might detect in your Harmoni product can be sorted by the product seller or quickly by the manufacturer. Please contact Harmoni by telephoning 01473 559088 for technical support. -
Page 15: Information Requirements For Erp Directive. Commission Regulation (Eu) 2015/1188
The defective parts or parts removed or replaced shall become the property of Harmoni. 5.4. The technical service of Harmoni will advise you if you need to buy any parts not covered under the guarantee or out of guarantee. - Page 17 Please fill in your details below: FIRST NAME SURNAME ADDRESS COUNTY POSTCODE TELEPHONE NO. EMAIL In order to obtain the Harmoni guarantee, an authorised installer/electrician must fill in the details below: INSTALLER / ELECTRICIAN NAME INSTALLATION PRODUCT NAME DATE* STAMP*...
- Page 19 NOTES:...
- Page 20 T: 01473 559088 Harmoni cannot accept any responsibility for any errors in catalgoues, brochures and other printed materials. Harmoni reserves the right to al- ter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes to specifications already agreed.
