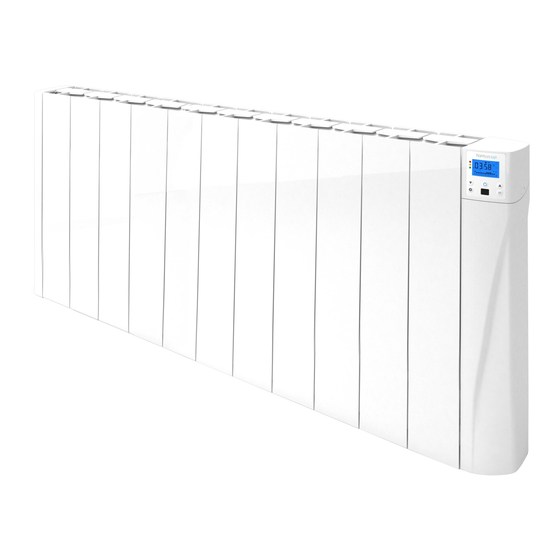

- Page 1 Digital electric radiator INSTRUCTION & INSTALLATION GUIDE...
- Page 2 This product is filled with a precise amount of special oil that does not need any maintenance. Any repairs requiring the opening of the oil tank must only be done by an competent professional or Harmoni after-sales service personnel, who should also be notified if an oil leak is noticed.
-
Page 3: Table Of Contents
Introduction Harmoni digital radiators are manufactured with high quality components and include an exclusive elec- tronic temperature programmer. Harmoni digital radiators meet all safety and efficiency requirements and are for fixed installations only. Harmoni digital radiators include: • TFT Screen •... -
Page 4: Harmoni Technical Specifications
1. Harmoni Technical Specifications MODEL LUGOHS0440T LUGOHS0660T LUGOHS0880T LUGOHS1100T LUGOHS1320T LUGOHS1540T No. Elements DIMENSIONS Width (mm) 1,069 1,230 Height (mm) Depth (mm) Installed Depth (mm) MECHANICAL CHARACTERISTICS Armoured steel heating element High purity ... -
Page 5: Harmoni System Installation
2. Harmoni system Installation 2.1. Mounting The product works by means of natural air convection (Figure 1). In order to achieve optimal functioning and an even distribution of heat, the lower part of the product, once mounted on the wall, must be at least 10-12cm from the floor, and 30cm at the most. -
Page 6: Template Measurements Per Model
2.3. Template measurements per model 0440 0660 161 mm 322 mm 124 mm 205 mm 0880 1100 483 mm 645 mm 286 mm 366 mm 1320 1540 645 mm 645 mm 322 mm 322 mm 366 mm 366 mm... -
Page 7: Harmoni System Information & Instructions
3. Harmoni system Information & Instructions 3.1. Touchpad Settings / Back ON/OFF / Confirm Decrease temperature / Move down Increase temperature / Move up Manual mode/ Automatic mode 3.2. Screen Selected temperature Manual mode Current time and day Automatic mode... -
Page 8: Turn On And Off
3.3. Turn On and Off To turn the product on press the button once. To turn off press the button again. When you turn the product on for the first time, it will ask you to set the date and time. Use the buttons to select the correct time and press the button to confirm. -
Page 9: Locking Touchpad
To change the language, select LANGUAGE. Use the buttons to select the correct one and press 3.4.4. Firmware This option displays the current software version and the release date. To see this press the FIRMWARE option. 3.5. Locking touchpad To lock the keypad, press and hold the buttons together for 3 seconds. - Page 10 3.6.2 AUTOMATIC mode When automatic mode is selected, the programming already established in the product will be activated. You can choose between the four pre-installed schedules in your Harmoni product: Pre-programs: COMFORT PRE-PROGRAM 1...
- Page 11 PRE-PROGRAM 2 Mon- Sat - PRE-PROGRAM 3 Mon - PRE-PROGRAM 4 Mon- Sat - If you want to create your own programming: STEP 1 1. Select COMFORT: Temperature between: 19 – 30°C. Use the buttons to adjust the temperature. Press to confirm.
-
Page 12: Advance Features Of The Harmoni System
3.7. Advanced features of the Harmoni system The Harmoni system includes three advanced functions: Open Windows, Balance and Adaptative Mode. To activate or deactivate one of the functions below, press the button to access the settings menu. Use the buttons to scroll through the menu until you find the POWER submenu. -
Page 13: Maintenance & Cleaning
The symbol of the container crossed out over a horizontal line is marked on all of Harmoni products to remind the consumer of the obligation to separate them on disposal. The consumer should contact the local authority or original point of sale to learn more about the correct disposal of this product. - Page 14 The defective parts or parts removed or replaced shall become the property of Harmoni. 5.4. The technical service of Harmoni will advise you if you need to buy any parts not covered under the guarantee or out of guarantee.
- Page 15 Harmoni, its offices, distributors and installers may not be held responsible for any accidental damage that emerges due to infringement of any rules implicitly related to this product.
- Page 17 Please fill in your details below: FIRST NAME SURNAME ADDRESS COUNTY POSTCODE TELEPHONE NO. EMAIL In order to obtain the Harmoni guarantee, an authorised installer/electrician must fill in the details below: INSTALLER / ELECTRICIAN NAME INSTALLATION PRODUCT NAME DATE* STAMP*...
- Page 19 NOTES:...
- Page 20 T: 01473 559088 Harmoni cannot accept any responsibility for any errors in catalgoues, brochures and other printed materials. Harmoni reserves the right to al- ter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes to specifications already agreed.
