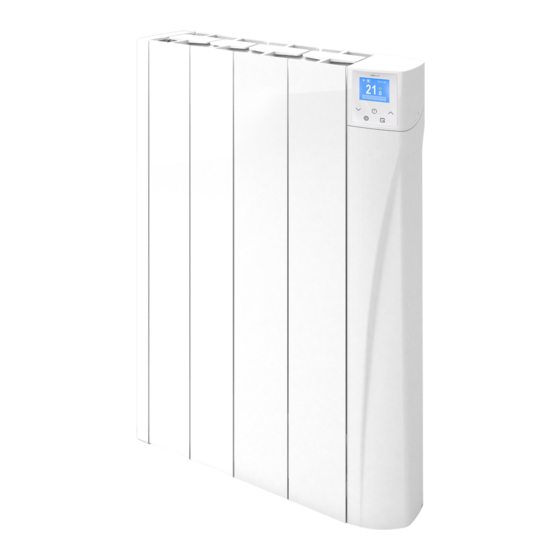

- Page 1 Digital electric radiator INSTRUCTION & INSTALLATION GUIDE...
-
Page 2: Table Of Contents
Introduction Harmoni digital radiators are manufactured with high quality components and include an exclusive elec- tronic temperature programmer. Harmoni digital radiators meet all safety and efficiency requirements and are for fixed installations only. Harmoni digital radiators include: • TFT Screen •... -
Page 3: Harmoni Technical Specifications
1. harmoni Technical Specifications MODEL LUGOHS0440T LUGOHS0660T LUGOHS0880T LUGOHS1100T LUGOHS1320T LUGOHS1540T No. Elements DIMENSIONS Width (mm) 1,069 1,230 Height (mm) Depth (mm) Installed Depth (mm) MECHANICAL CHARACTERISTICS Armoured steel heating element High purity ... -
Page 4: Installation & Safety Precautions
Any repairs requiring the opening of the oil tank must only be done by an official harmoni installer or its after-sales service personnel, who should also be notified should an oil leak be noticed. -
Page 5: Fixing The Supports
7. Place the product in the supports. 4. Harmoni system Information & Instructions 4.1. Touchpad Decrease Increase Settings ON/OFF / Manual mode/... -
Page 6: Screen
4.2. Screen Selected temperature Manual mode Current time and day Automatic mode Heating element on Pre-program mode Comfort mode Hourly programming Eco mode Open Windows indicator Anti-Frost mode Energy consumption Locked keypad indicator 4.3. Turn On and Off To turn the product on press the button once. - Page 7 4.4.1. Set the day and time To set the day or time select the CLOCK option. Use the buttons to select the correct time and press the button to confirm. Then use the buttons to select the correct minutes and press the button to confirm.
-
Page 8: Locking Touchpad
4.5. Locking touchpad To lock the keypad, press and hold the buttons together for 3 seconds. The symbol will appear to the right of the screen. To unlock the keypad, press and hold the buttons together for 3 seconds. The symbol will disappear from the right of the screen. - Page 9 4.6.2 AUTOMATIC mode When automatic mode is selected, the programming already established in the product will be activated. You can choose between the four pre-installed schedules in your harmoni product: Pre-programs: COMFORT...
- Page 10 If you want to create your own programming: STEP 1 1. Select COMFORT: Temperature between: 19 – 30°C. Use the buttons to adjust the temperature. Press to confirm. 2. Select ECO: Temperature between: 7.5 – 18.5°C. Use the buttons to adjust the temperature. Press confirm.
-
Page 11: Advance Features Of The Harmoni System
4.7. Advanced features of the harmoni system The harmoni system includes three advanced functions: Open Windows, Balance and Adaptative Mode. To activate or deactivate one of the functions below, press the button to access the settings menu. Use the buttons to scroll through the menu until you find the POWER submenu. Press the... -
Page 12: Guarantee
6.1. Any incident that you might detect in your harmoni product can be sorted by the product seller or quickly by the manufacturer. Please contact harmoni by telephoning 01473 559088 for technical support. - Page 13 The defective parts or parts removed or replaced shall become the property of harmoni. 6.4. The technical service of harmoni will advise you if you need to buy any parts not covered under the guarantee or out of guarantee.
- Page 15 Please fill in your details below: FIRST NAME SURNAME ADDRESS COUNTY POSTCODE TELEPHONE NO. EMAIL In order to obtain the harmoni guarantee, an authorised installer/electrician must fill in the details below: INSTALLER / ELECTRICIAN NAME INSTALLATION PRODUCT NAME DATE* STAMP*...
- Page 16 T: 01473 559088 harmoni cannot accept any responsibility for any errors in catalgoues, brochures and other printed materials. harmoni reserves the right to al- ter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequent changes to specifications already agreed.
