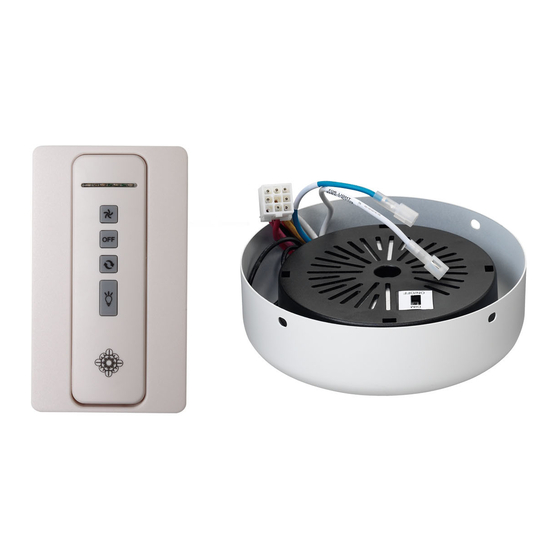

CEILING FAN REMOTE CONTROLLER
INSTALLATION AND OPERATION INSTRUCTION
CONTENTS
Safety information ......................................................................................................................... 1
General guide ................................................................................................................................ 2
Function chart................................................................................................................................ 3
Remote control setting (Dimming/Non Dimming) .......................................................................... 3
Installation and wiring .................................................................................................................... 4
Remote control setting and operation ........................................................................................... 7
Trouble shooting and warranty...................................................................................................... 9
SAFETY INFORMATION
READ AND SAVE THESE INSTRUCTIONS
• Please read and understand this entire manual before attempting to assemble, install or operate
the product.
• Make sure that all electrical connections comply with local codes, ordinances, the National
Electrical Code and ANSI/NFPA 70-1999. Hire a qualified electrician or consult a do-it-yourself
wiring handbook if you are unfamiliar with installing electrical wiring.
• Before proceeding, be sure to shut off electricity at main switch or circuit breaker in order to avoid
electrical shock.
MCRC1, MCRC1R, MCRC2R, MCRC3,
MCRC3R, MCRC4R series
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Monte Carlo Fan Company MCRC1R Series
Summary of Contents for Monte Carlo Fan Company MCRC1R Series
-
Page 1: Table Of Contents
CEILING FAN REMOTE CONTROLLER INSTALLATION AND OPERATION INSTRUCTION CONTENTS Safety information ......................... 1 General guide ..........................2 Function chart..........................3 Remote control setting (Dimming/Non Dimming) ................3 Installation and wiring ........................4 Remote control setting and operation ................... 7 Trouble shooting and warranty...................... 9 SAFETY INFORMATION READ AND SAVE THESE INSTRUCTIONS •... -
Page 2: General Guide
Do not use the remote controller with SOLID-STATE fans. Do not use the remote controller with outdoor fans. Customer Service 800-969-3347 Customer Service Center 7400 Linder Ave. Skokie, IL 60077 www.montecarlofans.com © 2013 Monte Carlo Fan Company 9/25/2013... -
Page 3: Function Chart
Wrong setting may damage the light kit or the remote controller. Switch housing type receiver Caution: If the remote receiver has been wired with fan, turn power off by wall switch before switch “DIM” and “ON/OFF” selection. Fig. 1 © 2013 Monte Carlo Fan Company 9/25/2013... -
Page 4: Installation And Wiring
Note: Mounting mean of fan may be different than shown. Note: Electrical rating for fan motor is 1 A max and 300W max for light. JUNCTION BOX CEILING RECEIVER MOUNTING PLATE Fig. 3 Fig. 3-1 © 2013 Monte Carlo Fan Company 9/25/2013... - Page 5 Double-sided foam tap Receiver Capacitor Capacitor Receiver Set screws Set screws Switch housing Switch housing Fig. 4 Fig. 4-1 Fig. 4-2 Hex nut Lead wires Lock washer Switch housing Light fixture Fig. 5 © 2013 Monte Carlo Fan Company 9/25/2013...
- Page 6 Take remote transmitter up by pushing it at lower area of the Back side of the transmitter. wall mount cradle The remote transmitter can be held on magnetic metal material by a magnet built in the transmitter. Fig. 7 © 2013 Monte Carlo Fan Company 9/25/2013...
-
Page 7: Remote Control Setting And Operation
“OFF” button of the transmitter which you are using for at least 10 seconds. You must press the ‘OFF” button within 60 seconds of restoring power to the fan. © 2013 Monte Carlo Fan Company 9/25/2013... - Page 8 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS. (1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. © 2013 Monte Carlo Fan Company 9/25/2013...
-
Page 9: Trouble Shooting And Warranty
God. THIS WARRANTY IS THE ONLY ONE WE WILL GIVE ON YOUR PRODUCT. IT SETS FORTH ALL OUR RESPONSIBILITIES REGARDING YOUR PRODUCT. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. © 2013 Monte Carlo Fan Company 9/25/2013... - Page 10 Sep.2013...
