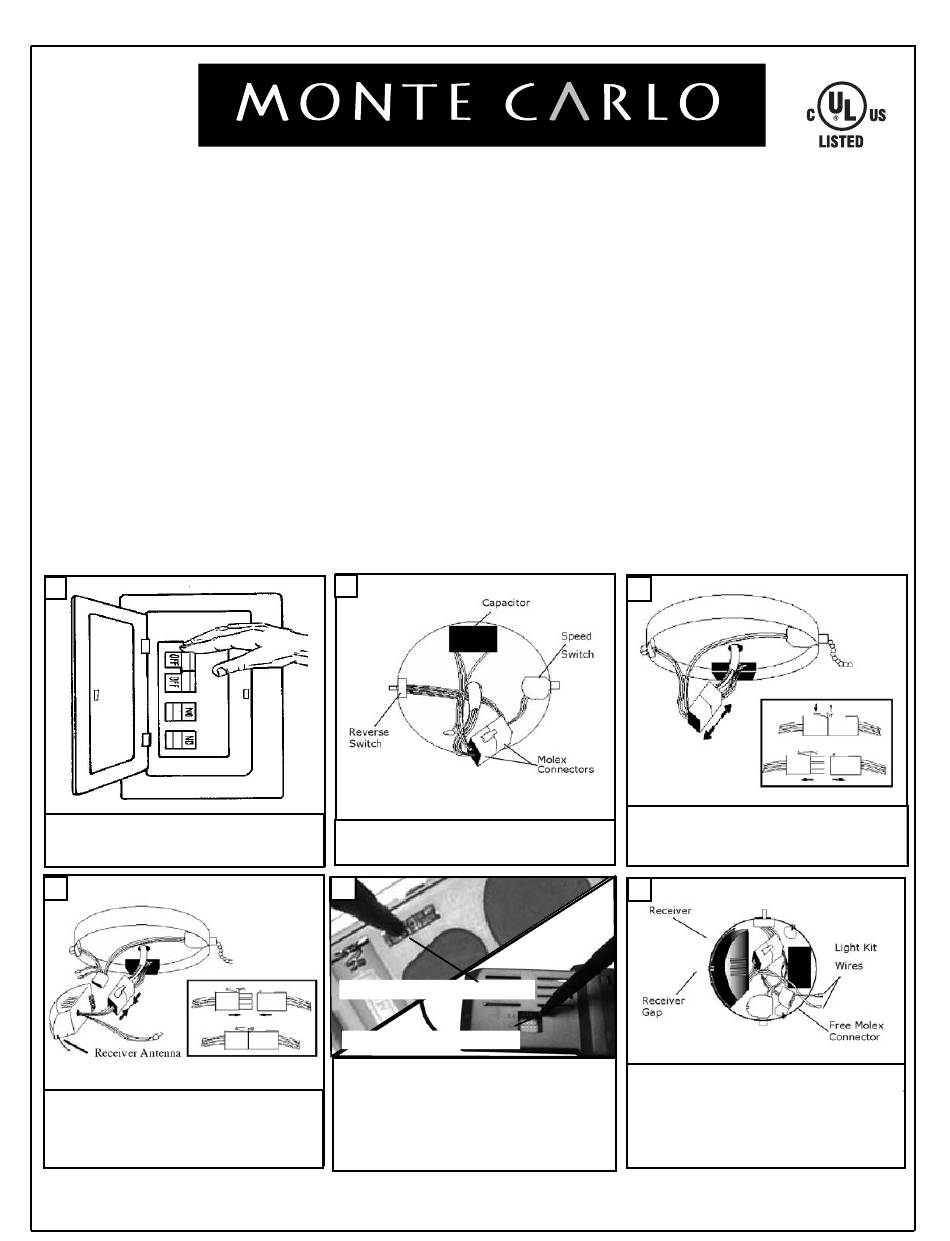

Monte Carlo Fan Company CK-300 Quick Start Manual

CAUTION: To reduce the risk of electric shock,
1.
2.
3.
CAUTION : FOR CONTROL OF SHADE POLE, PERMANENT SPLIT
CAPACITOR, OR UNIVERSAL MOTORS ONLY.
1
Caution: Turn off power at fuse box to avoid
possible electrical shock.
4
Connect the molex from the receiver to the
molex in the switch housing plate by aligning
and sliding together. Note: For longer distance
operation, coil receiver antenna around the
natural wire (white wire).
CK-300
For Monte Carlo Remote
install only in Fan
Model CD-52, manufactured by Ja Yang (E106510)
Model 9701, manufactured by Furn Fan (E141261)
Model AC-552, manufactured by Air Cool (E75795)
2
Top view of switch housing plate.
5
Remote Transmitter Dip swtiches
Remote Receiver Dip switches
Set dip switches on the Remote Transmitter and
Remote Receiver to the same settings. This
must be done so the units will communcate
properly. If you have other fans you can set to
control from one transmitter by setting both
receivers the same as the transmitter. If you
have more than one fan with remote. You can
set the dip switches to different positiosns to
have seperate control.
CK-300-ENG
3
Disconnect Molex Connectors in switch housing
plate by pushing down on tab and pulling the
two (molex connectors) apart.
6
Align gap in receiver with the screw between
speed switch and reverse switch and slide
receiver (Dip switch facing housing plate) into
switch housing plate. Receiver should fit direct-
ly into area in the switch housing plate. Note:
If installing light kit, use the blue and white
wire from the receiver.
