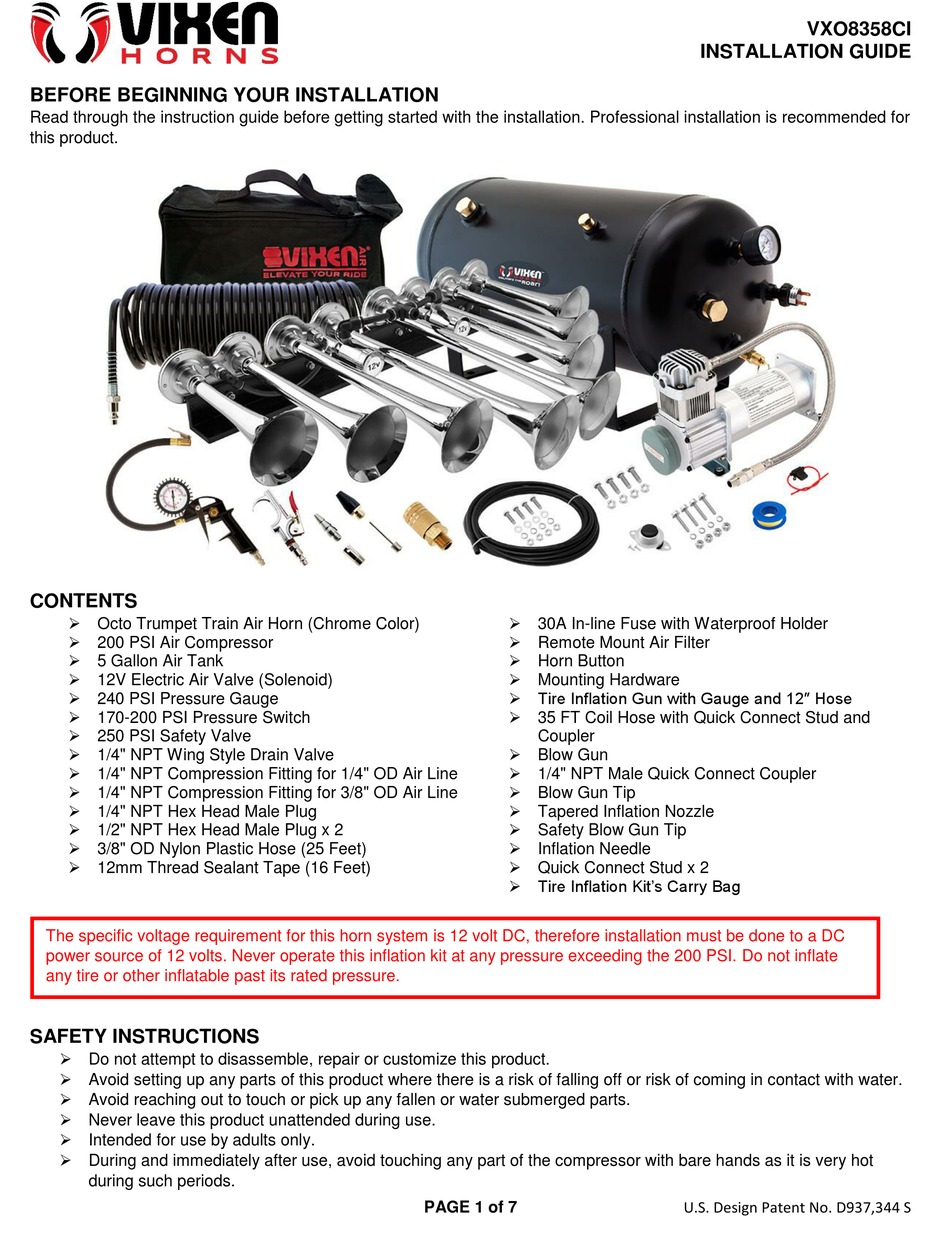

Vixen Horns VXO8358CI Installation Manual

BEFORE BEGINNING YOUR INSTALLATION
Read through the instruction guide before getting started with the installation. Professional installation is recommended for
this product.
CONTENTS

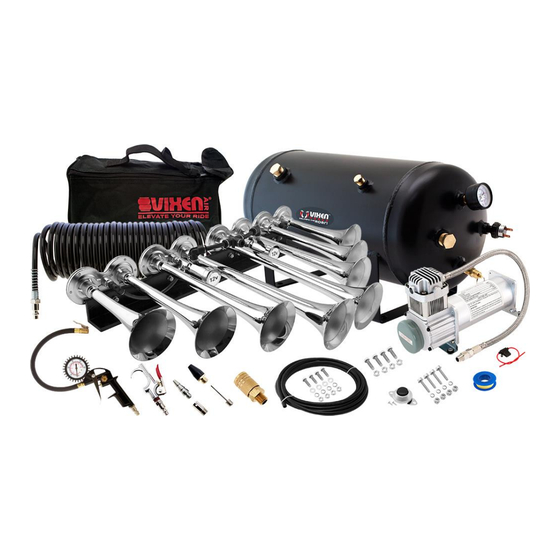

 Octo Trumpet Train Air Horn (Chrome Color)
 200 PSI Air Compressor
 5 Gallon Air Tank
 12V Electric Air Valve (Solenoid)
 240 PSI Pressure Gauge
 170-200 PSI Pressure Switch
 250 PSI Safety Valve
 1/4" NPT Wing Style Drain Valve
 1/4" NPT Compression Fitting for 1/4" OD Air Line
 1/4" NPT Compression Fitting for 3/8" OD Air Line
 1/4" NPT Hex Head Male Plug
 1/2" NPT Hex Head Male Plug x 2
 3/8" OD Nylon Plastic Hose (25 Feet)
 12mm Thread Sealant Tape (16 Feet)
The specific voltage requirement for this horn system is 12 volt DC, therefore installation must be done to a DC
power source of 12 volts. Never operate this inflation kit at any pressure exceeding the 200 PSI. Do not inflate
any tire or other inflatable past its rated pressure.
SAFETY INSTRUCTIONS
 Do not attempt to disassemble, repair or customize this product.
 Avoid setting up any parts of this product where there is a risk of falling off or risk of coming in contact with water.
 Avoid reaching out to touch or pick up any fallen or water submerged parts.
 Never leave this product unattended during use.
 Intended for use by adults only.
 During and immediately after use, avoid touching any part of the compressor with bare hands as it is very hot
during such periods.
 30A In-line Fuse with Waterproof Holder
 Remote Mount Air Filter
 Horn Button
 Mounting Hardware
 Tire Inflation Gun with Gauge and 12" Hose
 35 FT Coil Hose with Quick Connect Stud and
Coupler
 Blow Gun
 1/4" NPT Male Quick Connect Coupler
 Blow Gun Tip
 Tapered Inflation Nozzle
 Safety Blow Gun Tip
 Inflation Needle
 Quick Connect Stud x 2
 Tire Inflation Kit's Carry Bag
PAGE 1 of 7
VXO8358CI
INSTALLATION GUIDE
U.S. Design Patent No. D937,344 S
