Amana AMVS96-U Quick Start Manual

Amana AMVS96-U Quick Start Manual

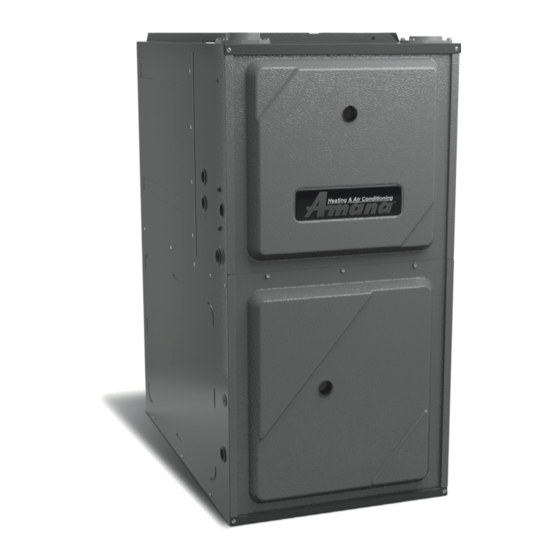

Ultra low nox, single-stage variable-speed ecm gas furnace

Advertisement

Quick Links

Heating Input: 60,000-80,000 BTU/h
Standard Features
• Integrated communicating ComfortBridge™ Technology
• Commissioning and diagnostics via indoor board Blue-
tooth with the CoolCloud™ phone and tablet application
• Heavy-duty stainless-steel tubular heat exchanger
• Super-ferritic Stainless-steel
secondary heat exchanger
• Single-stage gas valve
• Durable Silicon Nitride igniter
• Quiet modulating induced draft blower
• Self-diagnostic control board with constant memory
fault code history output to 3 x 7 segment display
• Eligible for installation in California's South Coast
Air Quality Management District (SCAQMD) and San
Joaquin Valley Air Pollution Control District (SJVUAPCD).
This furnace complies with the 14 ng/J NOx emission
limit in SCAQMD Rule 1111 and SJVUAPCD Rule 4905.
• EMI line filter kit must be installed. (It is intended for
field installation only on "VS" model, Bluetooth®
capable Ultra Low NOx Gas Furnaces. The purpose
of the EMI Filter is to reduce electromagnetic interfer-
ence between the furnace and other electrical devices)
• AHRI Certified; ETL Listed
SS-AMVS96-U
Amana® is a trademark of Maytag Corporation or its related companies and used under license to Goodman Manufacturing Company, L.P., Houston, Texas.
Ultra Low NOx, Single-Stage
Variable-Speed ECM Gas Furnace
Cabinet Features
• Designed for multi-position installation -
upflow, horizontal left or right
• Certified for direct vent (2-pipe)
or non-direct vent (1-pipe)
• Easy-to-install top venting with optional side venting
• Convenient left or right connection
for gas and electrical service
• Cabinet air leakage (Q
• Heavy-gauge steel cabinet with durable finish
• Fully insulated heat exchanger and blower section
• Airtight solid bottom or side return with
easy-cut tabs for effortless removal in
bottom air-inlet applications
* Complete warranty details available from your local dealer or at www.amana-hac.com. To receive the Lifetime Heat Exchanger
Limited Warranty, the Lifetime Unit Replacement Limited Warranty (in both cases good for as long as you own your home), and
the 10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration is
not required in California or Québec.
www.amana-hac.com
AMVS96-U
Up to 96% AFUE
Contents
Nomenclature ............................................2
Product Specifications ............................... 3
Dimensions ................................................4
Airflow Specifications ................................5
Accessories ................................................5
Wiring Diagram ..........................................6
) ≤ 1.4%
Leak
6/20

Advertisement

loading

Summary of Contents for Amana AMVS96-U

  • Page 1: Table Of Contents

    • AHRI Certified; ETL Listed * Complete warranty details available from your local dealer or at www.amana-hac.com. To receive the Lifetime Heat Exchanger Limited Warranty, the Lifetime Unit Replacement Limited Warranty (in both cases good for as long as you own your home), and the 10-Year Parts Limited Warranty, online registration must be completed within 60 days of installation. Online registration is not required in California or Québec. SS-AMVS96-U www.amana-hac.com 6/20 Amana® is a trademark of Maytag Corporation or its related companies and used under license to Goodman Manufacturing Company, L.P., Houston, Texas.
  • Page 2: Nomenclature

    Nomenclature 7,8,9 13,14 Brand Engineering A - Amana® Brand Major / Minor Revisions * Not used for inventory control. Configuration M - Upflow/Horizontal U - Ultra Low NOx Cabinet Width Motor B - 17½” C - 21" E - Multi-Speed ECM V - Variable Speed ECM / ComfortBridge™ Maximum CFM 3 - 1200 CFM...
  • Page 3: Product Specifications

    AMVS96-U Specifications AMVS96 AMVS96 0603BUA* 0805CUA* Heating Data BTUH Input¹ 60,000 80,000 BTUH Output¹ 57,600 76,800 AFUE² Temperature Rise Range (°F) 30 - 60 30 - 60 Vent Diameter³ 2" - 3" 2" - 3" No. of Burners Ports 1 Burner, 3 Tubes 1 Burner, 4 Tubes Circulator Blower Available AC @ 0.5" ESP 1.5 - 3 2 - 5 Size (D x W) 11" x 8"...
  • Page 4: Dimensions

    AMVS96-U Dimensions Discharge Discharge 28¾ 6½ ¾ 2¾ 6½ ¾ Air Intake 2⅝ 1⅞ 2" Pipe 19½ Center Dimple Vent/ Flue Pipe Left-Side Alternate For Alternate 2" PVC Drain Trap Vent/ Flue Air Intake Pipe ¾ Exterior Holes 3" Location...
  • Page 5: Airflow Specifications

    AMVS96-U Airflow Data (CFM & Temperature Rise vs. External Static Pressure) AMVS960603BUA* AMVS960805CUA* MODEL / TEMP RISE RANGE 30-60 (45) 30-60-(45) RISE RISE Recommended CFM for Heat Mode / Expected Temperature Rise 1185 1580 Lowest Recommended CFM for Heat Mode / Expected 1185 Temperature Rise 1400 (MAX 2200 (MAX Maximum CFM for Heat Mode / Expected Temperature Rise CAPABLE CFM) CAPABLE CFM) Note: To Set Heating CFM Using Push Buttons; 1) Scroll using Left or Right push buttons until gAF appears on the 7 segment display. 2) Press & release center button & display will show current heating airflow expressed as a percentage of max CFM.3) Press & release Left or Right button until desired percentage appears. 4) Press & release center button once more to select the displayed percentage. 5) CFM may be trimmed further by using the gTF menu. Accessories AMVS96...
  • Page 6: Wiring Diagram

    Wiring Diagram MOB_PE LEFT CENTER RIGHT GV (13) DATA AC BREAK OFF BREAK OFF TABS TABS 2 R C R C G W Y www.amana-hac.com SS-AMVS96-U...
  • Page 7 Temperature Rise Range Chart SS-AMVS96-U www.amana-hac.com...
  • Page 8 Notes Amana® is a registered trademark of Maytag Corporation or its related companies and is used under license. All rights reserved. Our continuing commitment to quality products may mean a change in specifications without notice. © 2020 Goodman Manufacturing Company, L.P. • Houston, Texas www.amana-hac.com...
