User manual

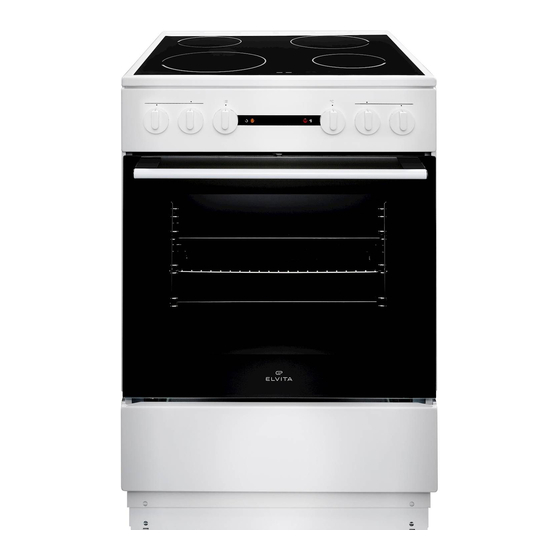

Electric cooker
CCS4640V

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CCS4640V and is the answer not in the manual?

Questions and answers

Related Manuals for elvita CCS4640V

Summary of Contents for elvita CCS4640V

  • Page 1 User manual Electric cooker CCS4640V...
  • Page 2 Thank you for your trust and the purchase of our product. This user manual is supplied to help you use this product. The instructions should allow you to learn about your new product as quickly as possible. Make sure you have received an undamaged product. If you do find transport damage, please contact the seller from which you purchased the product, or the regional warehouse from which it was supplied.

  • Page 3: Table Of Contents

    Contents CONTENTS SAFETY Admonitions ..........................Safety for children and people with disabilities................ General safety........................... Safety labels..........................Disposal............................. GETTING STARTED Installation..........................Before you use the cooker ......................Hob overview ..........................Cooker controls ......................... Open the door lock ........................Accessories..........................COOKING WITH THE HOB Hob surface..........................
  • Page 4 Contents Preserve food ..........................CLEANING Clean the hob surface....................... Clean glass surfaces ......................... Clean stainless steel surfaces ....................Clean enamel surfaces ......................Clean plastic parts and lacquer-coated surfaces ..............Clean the oven .......................... Use the WaterClean programme ....................TROUBLESHOOTING General troubleshooting ......................Oven troubleshooting........................

  • Page 5: Safety

    Safety SAFETY Carefully read the instructions before you install and use the product. Save the instructions and keep them near the appliance for future reference. Admonitions WARNING! Used when there is a risk for personal injury. CAUTION! Used when there is a risk for damage to the appliance. NOTE! General information that you should be aware of.

  • Page 6: Safety Labels

    Safety WARNING! Risk of fire! • Do not store items on the cooking surface. • Do not store combustible, explosive, volatile or temperature-sensitive items (such as paper, dish cloths, plastic bags, cleaners or detergents and spray cans) in the oven's storage drawer, as they can ignite during over operation and cause a fire.

  • Page 7: Getting Started

    Getting Started GETTING STARTED Installation See section "Installation", page Before you use the cooker 1. Remove all transport packaging and equipment from the cooker. 2. Clean all accessories and utensils with warm water and regular detergent. Do not use any abrasive cleaners. 3.

  • Page 8: Open The Door Lock

    Getting Started Open the door lock The oven door locks automatically when you close it. 1. Push the door lock gently to the right with your thumb. 2. Pull the oven door while still pushing the door lock. Accessories The cooker is supplied with some useful accessories to improve your cooking experience. Shallow trays For baking pastries or as a drip tray.

  • Page 9: Cooking With The Hob

    Cooking with the hob COOKING WITH THE HOB Hob surface The hob surface is made of a solid glass-ceramic material. Here is some advice on how to use and maintain the surface. • The surface is very resistant to temperature changes but can be damaged by falling, heavy objects. The surface may break immediately or a while after being hit.

  • Page 10: Residual Heat Indicator

    Cooking with the hob Residual heat indicator The cooking zones stay hot for a while even after they are turned off. A hot cooking zone is indicated with the residual heat indicator. The indicator goes out when the cooking zone has cooled down. The residual heat indicator is also lit if hot cookware is placed on a cool cooking zone.

  • Page 11: Cooking With The Oven

    Cooking with the oven COOKING WITH THE OVEN • Use dark, black silicon coated or enamel coated baking trays. They transmit heat better. • Cooking many types of pastries one after another saves energy since the oven is already hot. Heating an oven that has cooled down uses more energy.

  • Page 12: Hot Air

    Cooking with the oven Hot air Use this oven mode to roast meat or bake pastries on several levels at the same time. The round heater and the fan will make sure that hot air constantly circulates around the food. Recommended temperature: 180°C. Hot air and bottom heater Use this oven mode to bake: •...

  • Page 13: Change Oven Cooking Mode

    Cooking with the oven 1. Turn the temperature selector clockwise to increase the temperature or anticlockwise to lower the temperature. CAUTION! Do not turn the selector below the zero position. This can damage the thermostat. The temperature range is 50-275°C. Change oven cooking mode Select the suitable cooking mode for what you are cooking.

  • Page 14: Wire Guides

    Cooking with the oven Cooking method Food type Oven cooking mode Au gratin Toast Bread Preserve Fruit, vegetables Wire guides Wire guides allow you to choose between 4 different levels when you insert a grid or a tray into the oven. The levels/guides are counted from the bottom and up.

  • Page 15: Roasting Recommendations

    Cooking with the oven • Make sure there is enough liquid in the tray when using a baking tray. Otherwise the food may burn. • Turn the meat. • Clean the oven, the accessories, and the utensils when you have finished grilling. Roasting recommendations Use these recommendations when roasting.

  • Page 16: Cleaning

    Cleaning CLEANING Make sure to clean your product regularly to make it last longer and keep a good appearance. WARNING! Do not let children clean the product without supervision. WARNING! Risk of electric shock! • Before cleaning, disconnect the product from the mains. •...

  • Page 17: Clean Stainless Steel Surfaces

    Cleaning Clean stainless steel surfaces Clean stainless steel surfaces with a mild detergent and a soft sponge that will not scratch the surface. CAUTION! Do not use abrasive cleaners or cleaners containing solvents as they may damage the surface. Clean enamel surfaces Clean enamel surfaces with a damp sponge.
  • Page 18 Cleaning 4. Let the programme run for 30 minutes. The food residues will soften. 5. Clean the oven enamel walls with a damp cloth. © 2020, Elon Group AB. All rights reserved.

  • Page 19: Troubleshooting

    Troubleshooting TROUBLESHOOTING You can solve many minor problems with help from the troubleshooting information. If the problem persists, do not try to repair the product in other ways than mentioned in this manual. WARNING! Risk of electric shock! • Do not attempt to perform any repairs yourself. Tampering with the product and non-professional repair may cause injury or damage to the product.

  • Page 20: Replace The Oven Door

    Troubleshooting 1. Remove the grid, guides and trays. 2. Disconnect the cooker from the mains power. 3. Remove the bulb cover. 4. Replace the bulb. WARNING! Use protection when you remove the old light bulb to avoid burning yourself. CAUTION! Do not damage the enamel surface. 5.

  • Page 21: Remove And Install The Oven Door Glass Pane

    Troubleshooting Remove and install the oven door glass pane Remove the oven door glass pane if it is broken or if you want to clean it. 1. Remove the oven door from the appliance (section "Replace the oven door", page 20).

  • Page 22: Power Cord Wire Connections

    Troubleshooting Power cord wire connections If the power cord is damaged it must be replaced immediately. WARNING! • Do not replace the power cord yourself. If the power cord is damaged, it must be replaced by the manufacturer or authorised technicians to avoid hazard. •...

  • Page 23: Installation

    Installation INSTALLATION Cooker placement Make sure to place the product considering the measurements and other factors described in this section. WARNING! Risk of fire! • Make sure the floor and the adjacent walls are temperature resistant to at least 90°C. •...

  • Page 24: Adjust The Height Of The Cooker

    Installation 1. Fasten the bracket to the wall using the supplied screws and anchors. WARNING! If the supplied screws or anchors are not suitable for the wall, make sure you use ones that will ensure a secure installation on the wall. 2.

  • Page 25: Connect The Mains Power

    Installation 1. Turn the front feet to adjust the height. 2. Turn the wheel adjustment screws to adjust the height of the rear wheels. 3. Place a spirit level on top of the cooker to check the horizontal position. Adjust if needed. 4.

  • Page 26: Appendix

    Appendix APPENDIX Specifications Product code CCS4640V Height 90 cm Width 59.7 cm Depth 59.4 cm Weight 47.4 kg Oven cavity volume 70 l Power supply 380-415 V 3~, 50 Hz Electrical connection rating 9 300 W Cooking zone Diameter Power Front left 21 cm 2.3 kW...
  • Page 27 Appendix © 2020, Elon Group AB. All rights reserved.
  • Page 28 Elvita products are distributed and marketed by ELON Group AB. Elon Group AB Bäcklundavägen 1 | 702 03 Örebro Sweden ELON GROUP | +46(0)10-220 40 00 | ELONGROUP.SE Support and service: ELVITA.SE...
