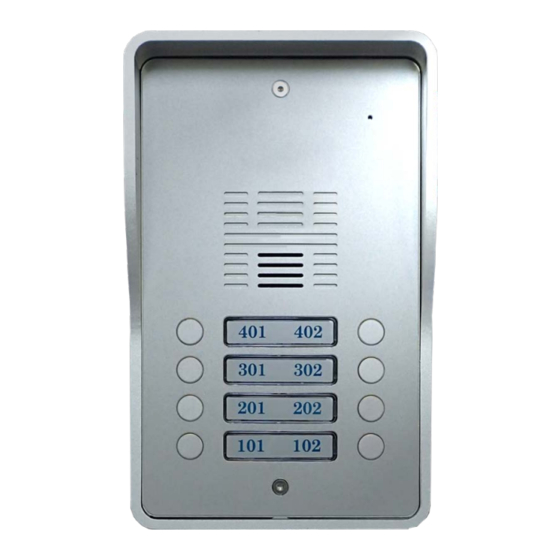

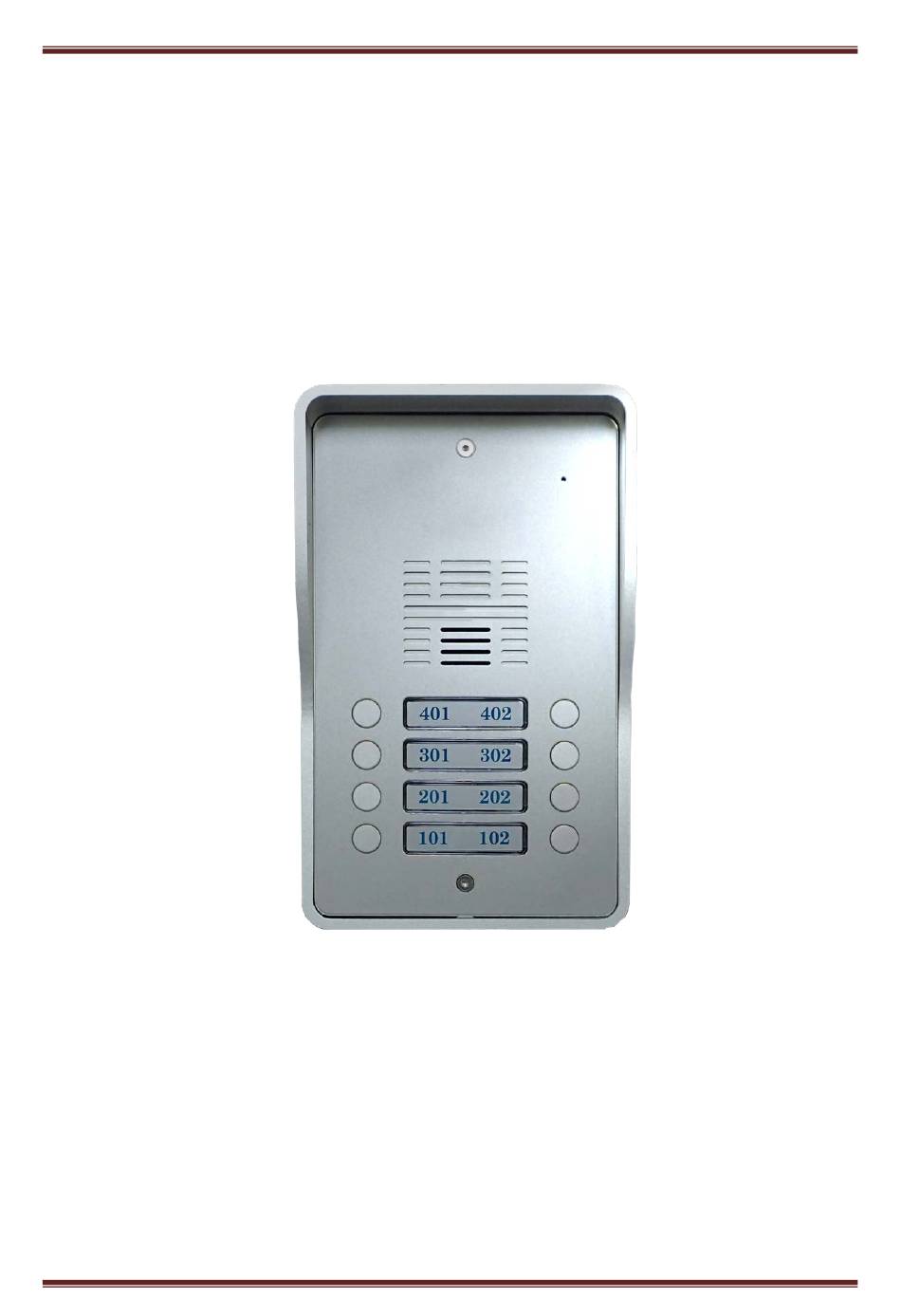

- Page 1 Grants Automation AN1808-08 4G LTE INTERCOM & ACCESS CONTROL OPERATING MANUAL For your protection, read these instructions completely Keep for future reference. AN1603-08 4G Audio Intercom (E2.2) 1/16...
-
Page 2: Table Of Contents
Parts List ........................4 Installation ........................5 Wiring Diagram ......................8 Using the AN1808-08 ....................9 1. Setting your call out numbers ...............9 2. Setting your call in numbers ( Guest List ) ..........9 5. App on iOS and Android ................9 Programming by text message .................. -
Page 3: Important Safety Instructions
Grant's Automation Thank you for purchasing AN1808-08 4G audio intercom. Please read this manual carefully before using. Be sure to keep this manual for future reference in case of any problem or questions. Important Safety Instructions When using this intercom, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. -
Page 4: Introduction
Grant's Automation Introduction AN1808-08 4G audio intercom system is designed for units or multi tenanted premises. It can dial up to 8 different destinations. By pressing the relevant call button, a visitor can be connected to the occupier whether they are on or off the site. The intercom will sequentially call 3 numbers that are associated with the occupier. -
Page 5: Installation
Grant's Automation Installation This intercom is suitable for both flush mounting and surface mounting. AN1808-08 4G Audio Intercom (E2.2) 5/16... - Page 6 1.7 Insert the SIM card (Note orientation of notched corner) 1.8 Replace holder and slide towards the rear of the unit to lock in place 1.9 Replace rear plastic cover AN1808-08 4G Audio Intercom (E2.2) 6/16...
- Page 7 2.1 According your door lock type, see wiring options below. 3. Connecting the Antenna (Fig 3) 3.1 Plug in the antenna cord to the connector on the rear of the unit 3.2 Place antenna away from electrical/electronic systems (computers, microwave ovens, etc.) AN1808-08 4G Audio Intercom (E2.2) 7/16...
-
Page 8: Wiring Diagram
4.2 The blue indicator of call button should be on and you will hear Du Du tone. 4.3 Position the intercom where it will be installed. 4.4 When the Du Du tone has ceased, the device is ready. Wiring Diagram AN1808-08 4G Audio Intercom (E2.2) 8/16... -
Page 9: Using The An1808-08
3.1 Please search 4G intercom on Apple store or Google Play 3.2 The App can help you to program the device more easily. 3.3 You can use the App to unlock the door via calling or SMS. AN1808-08 4G Audio Intercom (E2.2) 9/16... -
Page 10: Programming By Text Message
To make changes on settings please refer to the command codes in page 12. To end program setting mode just hang up. NOTE: *To be successful in programming, originate a call from a land line and enter the digits slowly or using programming by text message. AN1808-08 4G Audio Intercom (E2.2) 10/16... - Page 11 SMS format: (delete 2&3 phone numbers of a call button) *12*1234#1082*#1083*# User command code CORRECT SMS format: *12*1234#108105857235#10820865682554#10830862235644# SMS reply: 108105857235#10820865682554#10830862235644# OK User command code ERROR (user command error) SMS format: *12*1234#108105857235#1920865682554#10830862235644# SMS reply: 108105857235#1920865682554# Error AN1808-08 4G Audio Intercom (E2.2) 11/16...
-
Page 12: Command Codes
74 [ admin number ] # None ( no number no restriction) Del administrator phone number 74*# delete admin phone number None X=0 (disable SMS reply) SMS reply notice of Relay status 894[X]# X=1 (enable SMS reply) AN1808-08 4G Audio Intercom (E2.2) 12/16... - Page 13 *28*[ password ]#[content] Power loss content= up to 100 characters (works for inside battery) Send SMS message Password=setting password Power *29*[ password ]#[content] AN1808-08 4G Audio Intercom (E2.2) 13/16 (when external power is active) content= up to 100 characters active...
-
Page 14: How To Change The Name Plate
(works for inside battery) Send SMS message Password=setting password *30*[ password ]#[content] IN1 trigger (when IN1 is triggered) content= up to 100 characters Reset 999# reset default None How to change the name plate AN1808-08 4G Audio Intercom (E2.2) 14/16... -
Page 15: How To Reset The Hardware If You Forget Your Password
Q. There is no audio from the gate, but the person at the gate can hear ok. A. This can be due to low reception. -Check reception level by *20#. -Change SIM card if necessary, to another network which may have better coverage. AN1808-08 4G Audio Intercom (E2.2) 15/16... - Page 16 Power requirements 12~24V AC/ DC Design and material Vandal resistant / die cast aluminum Humidity Less than 80% RH -20℃ to 50℃ Operating Temperature Operating Current Maximum 250mA, Typically 55mA E. & O.E. www.grantsautomation.com.au AN1808-08 4G Audio Intercom (E2.2) 16/16...
