Grant's Automation AN1808-12M Operating Manual

4g lte intercom & access control
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Grants Automation
AN1808-12M 4G LTE
INTERCOM & ACCESS CONTROL
Up To 200 Apartments
For your protection, read these instructions completely
Keep for future reference.
AN1808-12M 4G Audio Intercom (E2.2)
1/16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AN1808-12M and is the answer not in the manual?

Questions and answers

Related Manuals for Grant's Automation AN1808-12M

Summary of Contents for Grant's Automation AN1808-12M

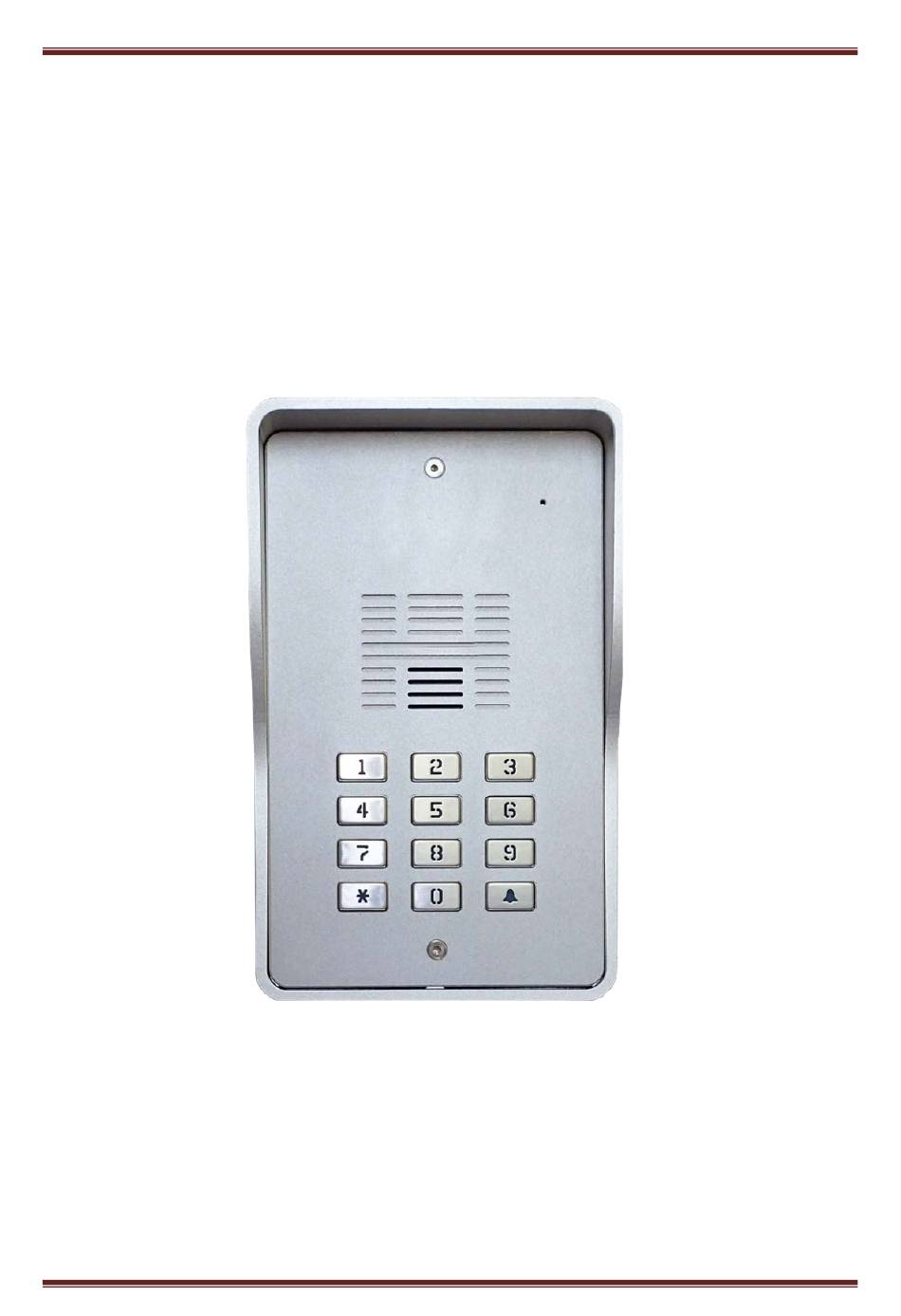

  • Page 1 Grants Automation AN1808-12M 4G LTE INTERCOM & ACCESS CONTROL Up To 200 Apartments For your protection, read these instructions completely Keep for future reference. AN1808-12M 4G Audio Intercom (E2.2) 1/16...

  • Page 2: Table Of Contents

    IMPORTANT SAFETY INSTRUCTIONS .............. 3 INTRODUCTION ....................... 4 PARTS LIST ........................ 4 INSTALLATION ......................5 AN1808-12M 4G AUDE KEYPAD INTERCOM UNIT ......5 WIRING DIAGRAM ....................8 USING THE AN1808-12M................9 1. Setting your call out numbers ................ 9 2. Setting your call in numbers ( Guest list ) ............. 9 5.

  • Page 3: Important Safety Instructions

    Grant's Automation Thank you for purchasing AN1808-12M 4G audio intercom. Please read this manual carefully before using. Be sure to keep this manual for future reference in case of any problem or questions. Important Safety Instructions 1. When using this intercom, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury.

  • Page 4: Introduction

    SIM number of the intercom. As the call is not answered, it is a free call. The AN1808-12M accepts 384 different PIN passwords for unlocking the door or gate. This is useful for staff and visitors without a mobile phone.

  • Page 5: Installation

    Grant's Automation Installation This intercom is suitable for both flush mounting and surface mounting. AN1808-12M Intercom Unit Microphon Speake Call button Keypad AN1808-12M 4G Audio Intercom (E2.2) 5/16...
  • Page 6 1.7 Insert the SIM card (Note orientation of notched corner) 1.8 Replace holder and slide towards the rear of the unit to lock in place 1.9 Replace rear plastic cover AN1808-12M 4G Audio Intercom (E2.2) 6/16...
  • Page 7 2.1 According your door lock type, see wiring diagrams below. 3. Connecting the Antenna (Fig 3) 3.1 Plug in the antenna cord to the connector on the rear of the unit 3.2 Place antenna away from electrical/electronic systems (computers, microwave ovens, etc.) AN1808-12M 4G Audio Intercom (E2.2) 7/16...

  • Page 8: Wiring Diagram

    4.2 The blue indicator of call button should be on and you will hear Du Du tone. 4.3 Position the intercom where it will be installed. 4.4 When the Du Du tone has ceased, the device is ready. Wiring Diagram AN1808-12M 4G Audio Intercom (E2.2) 8/16...

  • Page 9: Using The An1808-12M

    1.5 Visitor presses "call button " then enter your apartment’s number 401. Then AN1808-12M will call to the three phone numbers in sequence. 2. Setting your call in numbers ( Guest List ) 2.1 Send the text SMS to the number of device.
  • Page 10 To make changes on settings please refer to the command codes in page 12. To end program setting mode just hang up. NOTE: *To be successful in programming, originate a call from a land line and enter the digits slowly or using programming by text message. AN1808-12M 4G Audio Intercom (E2.2) 10/16...
  • Page 11 SMS format: (delete 2&3 phone numbers from a call button and delete the apartment no. 402) *12*1234#912401*#913401*#92402* User command code CORRECT SMS format: *12*1234#911401*05857235#912401*0865682554#913401*0862235644# SMS reply: 911401*05857235#912401*0865682554#913401*0862235644# OK User command code ERROR (user command error) SMS format: *12*1234#911401*05857235#919401*0865682554#913401*0862235644# SMS reply: 911401*05857235#919401*0865682554# Error AN1808-12M 4G Audio Intercom (E2.2) 11/16...

  • Page 12: Command Codes

    Delete all phone numbers admin number= 3~15 digits Add administrator phone number 74 [ admin number ] # None ( no number no restriction) Del administrator phone number 74*# delete admin phone number None AN1808-12M 4G Audio Intercom (E2.2) 12/16...
  • Page 13 *27*[ password ]#[content] Case open (when Intercom is moved) content= up to 100 characters Send SMS message Password=setting password *28*[ password ]#[content] Power loss (when external power is off ) content= up to 100 characters AN1808-12M 4G Audio Intercom (E2.2) 13/16...
  • Page 14 X=1~ 99 (minutes) after constantly failed attempt X= 0, disable (keypad flashing) Set PIN code error alarm buzzer 893+X# X= 1, enable alarm buzzer X=0 (LED ON) Set keypad LED indicator 897+X# X=1 (LED OFF) AN1808-12M 4G Audio Intercom (E2.2) 14/16...

  • Page 15: How To Reset The Hardware If You Forget Password

    Even if you have already programmed a number to receive a call from the intercom, if you also want that number to have caller ID access, it must be programmed under the 72 feature also. Ensure the number is entered as you would normally dial it from another phone. AN1808-12M 4G Audio Intercom (E2.2) 15/16...

  • Page 16: Specification

    3 meters cable Power requirement 12~24V AC/ DC Design and material Vandal resistant / die cast aluminum Humidity Less than 80% RH -20℃ to 50℃ Operating Temperature Operating Current Maximum 250 mA, Typically 55mA E.&O.E. www.grantsautomation.com.au AN1808-12M 4G Audio Intercom (E2.2) 16/16...
