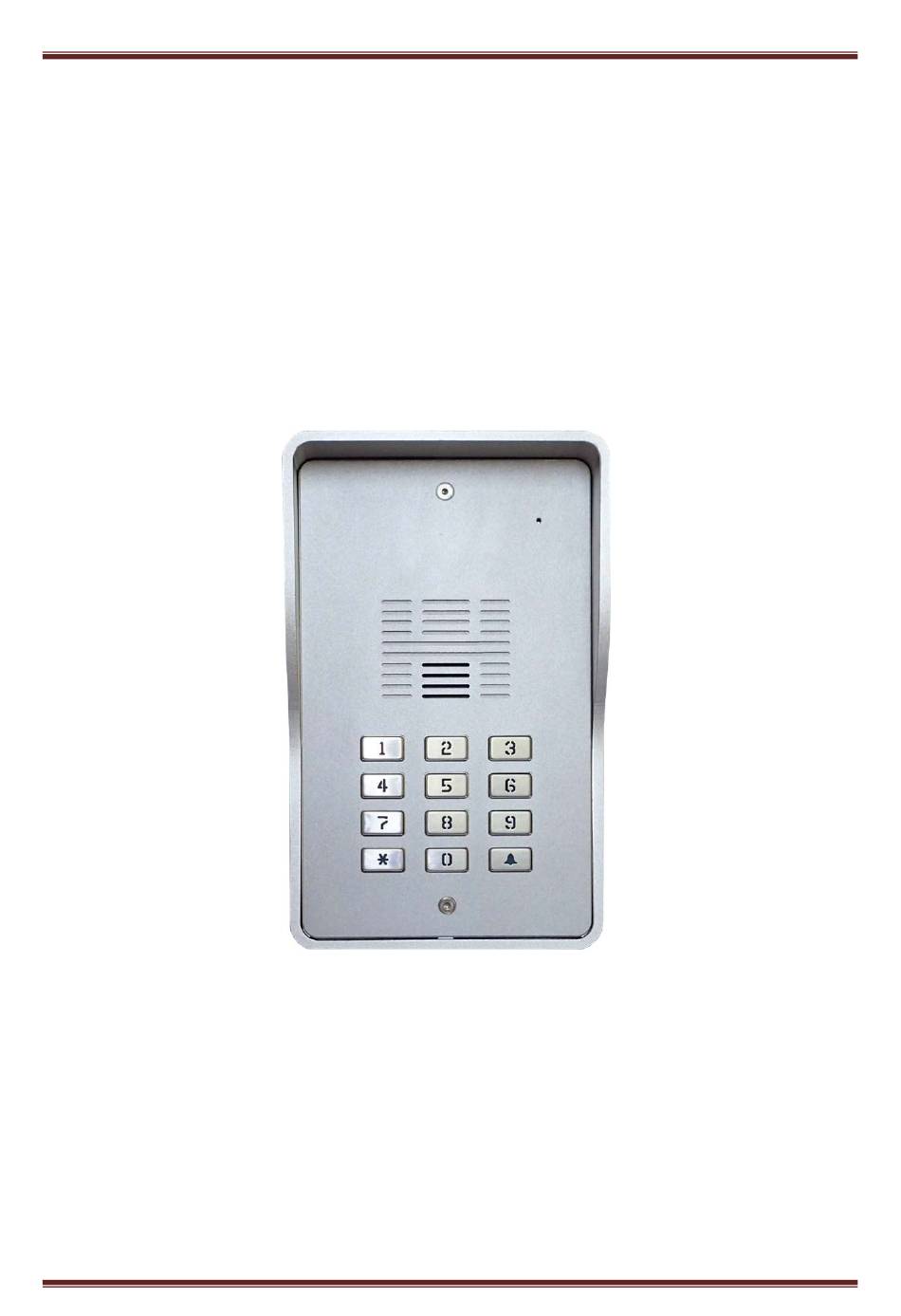

- Page 1 Grants Automation AN1808-12S 4G LTE INTERCOM & ACCESS CONTROL OPERATING MANUAL For your protection, read these instructions completely Keep for future reference. AN1808-12S 4G Audio Intercom (E2.2) 1/16...
-
Page 2: Table Of Contents
Programming by text message ..................11 Command Codes ......................12 Hardware reset (if you forget password) ..............15 How to change the name plate ..................14 Troubleshooting (Q &A) ..................... 15 Specification: ....................... 16 AN1808-12S 4G Audio Intercom (E2.2) 2/16... -
Page 3: Important Safety Instructions
Thank you for purchasing AN1808-12S 4G audio intercom. Please read this manual carefully before using. Be sure to keep this manual for future reference in case of any problem or questions. Important Safety Instructions When using this intercom, basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. -
Page 4: Introduction

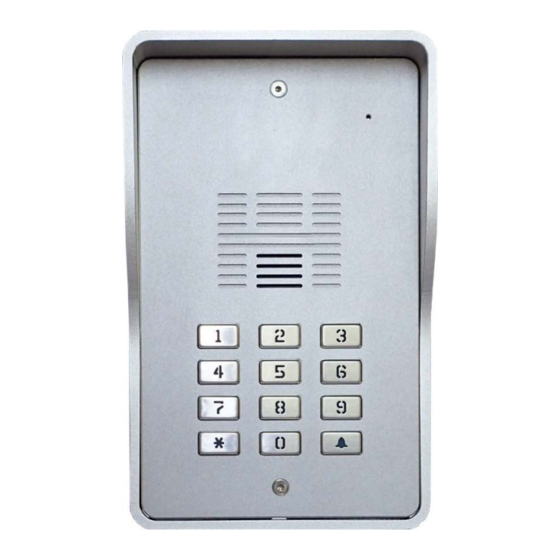

Introduction The 4G Door Station AN1808-12S is an intercom system and access control device which can be installed at the entrance of a building, gate, fence or door. The device can operate on local 12-24V AC or DC power. It enables you to speak with visitors, from any location, on or off the premises. -
Page 5: Installation
Installation This intercom is suitable for both flush mounting and surface mounting. Microphone Speake Call button Keypad AN1808-12S 4G Audio Intercom (E2.2) 5/16... - Page 6 1.7 Insert the SIM card (Note orientation of notched corner) 1.8 Replace holder and slide towards the rear of the unit to lock in place 1.9 Replace rear plastic cover AN1808-12S 4G Audio Intercom (E2.2) 6/16...
- Page 7 2.1 According your door lock type, see wiring diagram below. 3. Connecting the Antenna (Fig 3) 3.1 Plug in the antenna cord to the connector on the rear of the unit 3.2 Place antenna away from electrical/electronic systems (computers, microwave ovens, etc.) AN1808-12S 4G Audio Intercom (E2.2) 7/16...
- Page 8 4.2 The blue indicator of call button should be on and you will hear Du Du tone. 4.3 Position the intercom where it will be installed. 4.4 When the Du Du tone has ceased, the device is ready. Wiring Diagram AN1808-12S 4G Audio Intercom (E2.2) 8/16...
-
Page 9: Using The An1808-12S
3.1 Please search 4G intercom on Apple store or Google Play 3.2 The App can help you to program the device more easily. 3.3 You can use the App to unlock the door via calling or SMS. AN1808-12S 4G Audio Intercom (E2.2) 9/16... -
Page 10: Enter System Menu
To make changes on settings please refer to the command codes in page 12. To end program setting mode just hang up. NOTE: *To be successful in programming, originate a call from a land line and enter the digits slowly or using programming by text message. AN1808-12S 4G Audio Intercom (E2.2) 10/16... -
Page 11: Programming By Text Message
SMS format: (delete 2&3 phone numbers from a call button) *12*1234#12*#13*# User command code CORRECT SMS format: *12*1234#1105857235#120865682554#130862235644# SMS reply: 1105857235#120865682554#130862235644# OK User command code ERROR (user command error) SMS format: *12*1234#1105857235#190865682554#130862235644# SMS reply: 110587235#190865682554# Error AN1808-12S 4G Audio Intercom (E2.2) 11/16... -
Page 12: Command Codes
( no number no restriction) Del administrator phone number 74*# delete admin phone number None X=0 (disable SMS reply) SMS reply notice of Relay status 894+X# X=1 (enable SMS reply) Dial tone volume 898+X# X=1~3 ( levels) AN1808-12S 4G Audio Intercom (E2.2) 12/16... - Page 13 Power loss content= up to 100 characters (works for inside battery) Send SMS message Password=setting password Power (when external power is active) *29*[ password ]#[content] content= up to 100 characters active (works for inside battery) AN1808-12S 4G Audio Intercom (E2.2) 13/16...
-
Page 14: How To Change The Name Plate
Send SMS message Password=setting password *30*[ password ]#[content] IN1 trigger (when IN1 is triggered) content= up to 100 characters Reset 999# reset default None How to change the name plate AN1808-12S 4G Audio Intercom (E2.2) 14/16... -
Page 15: Hardware Reset (If You Forget Password)
Even if you have already programmed a number to receive a call from the intercom, if you also want that number to have caller ID access, it must be programmed under the 72 feature also. Ensure the number is entered as you would normally dial it from another phone. AN1808-12S 4G Audio Intercom (E2.2) 15/16... -
Page 16: Specification
Failure of DTMF tones to operate correctly is also a symptom of low reception. Check steps above on improving reception. Try pressing the buttons longer when attempting to activate the gates or door. Specification: AN1808-12S 4G LTE Audio Intercom Model 700/850/900/1700/1800/2100/2300/2600 MHz Frequencies...
