STEP 5 IF NECESSARY, REMOVE FLOOR
PROTECT PAN
• Disconnect leak sensor wire
(on some models).
• Pull floor protect pan forward and
slide it from under the dishwasher.
• Set aside for use in Step 21.
STEP 6 INSTALL 90° ELBOW
• Thread 90° elbow
onto the water valve.
• Do not overtighten
Water Valve
elbow. Water valve
Bracket
bracket could bend
or water valve fitting
could break.
• Position the end of the
elbow to face the rear
of the dishwasher.
STEP 7 INSTALL DRAIN HOSE TO
DRAIN LOOP
Connect drain loop end to drain hose using the screw
clamp as shown in the figure.
NOTE: The high drain loop on the side of the tub is
designed for better wash performance. Do not remove
from the side of the tub.
Dishwasher Installation
Squeeze connector at top
to release snap feature
Leak Sensor
Floor Protect Pan

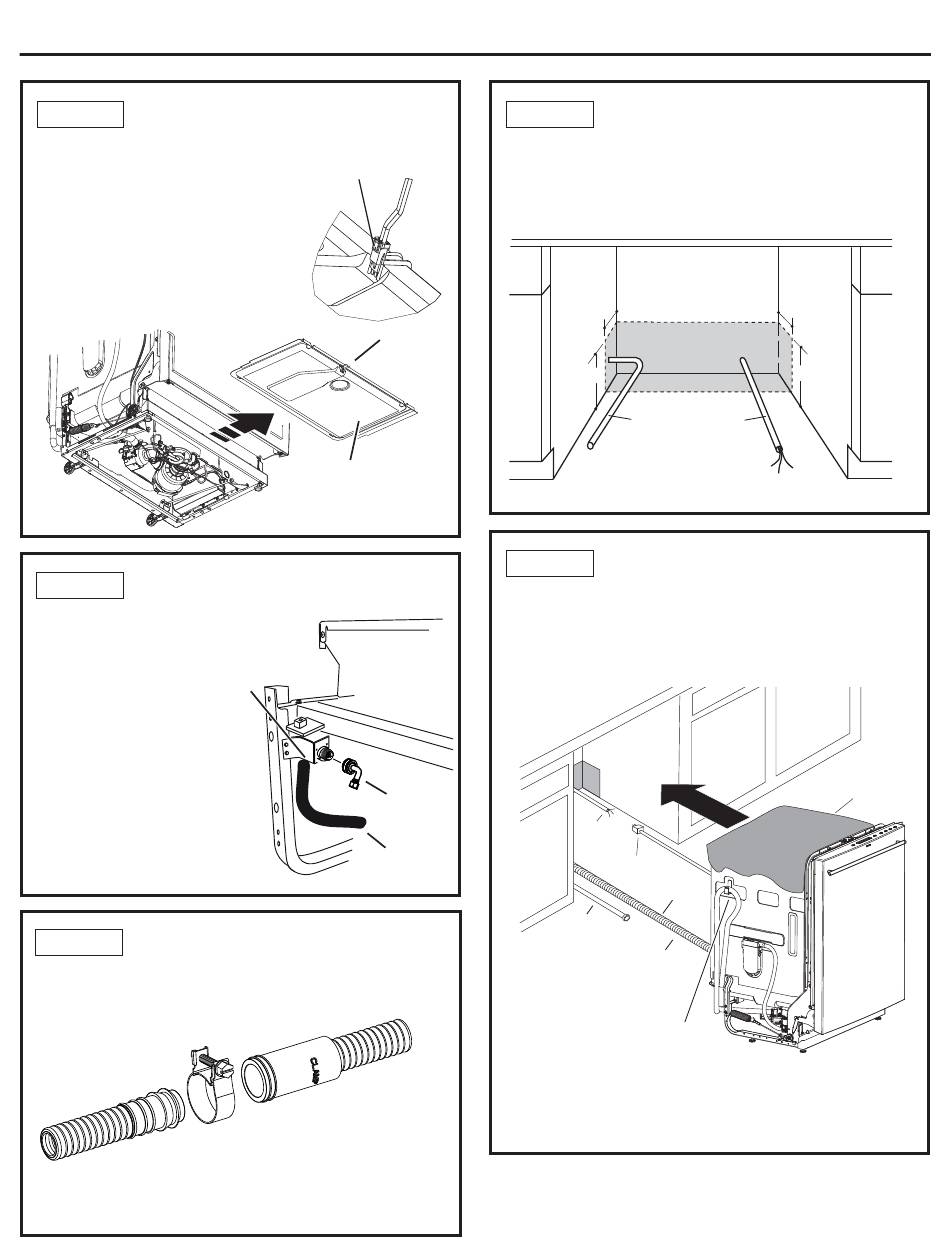

Figure L
Front of dishwasher
90° Elbow
Fill Hose
Figure M
Figure N
8
STEP 8 POSITION WATER LINE AND
HOUSE WIRING
• Position water supply line and house wiring on the
floor of the opening to avoid interference with base of
dishwasher and components under dishwasher.
4"
6"
Water
Line
Figure O
STEP 9 INSTALL DRAIN HOSE,
THROUGH CABINET
• Position dishwasher in front of cabinet opening. Insert
drain hose into the hole in cabinet side. If a power
cord is used, guide the end through a separate cabinet
opening.
House
Wiring
Power Cord
(If used)
Drain
Hose
Water
Line
Ensure drain hose is not
twisted or pinched
Maximum drain hose
length is 15'
Do not disconnect or remove high
drain loop from left side of dishwasher
Tip: Prevent unnecessary service call charges for fill,
drain or noise concerns.
Position utility lines so they do not interfere with anything
under or behind the dishwasher.
4"
6"
House
Wiring
Insulation
Blanket
Figure P
