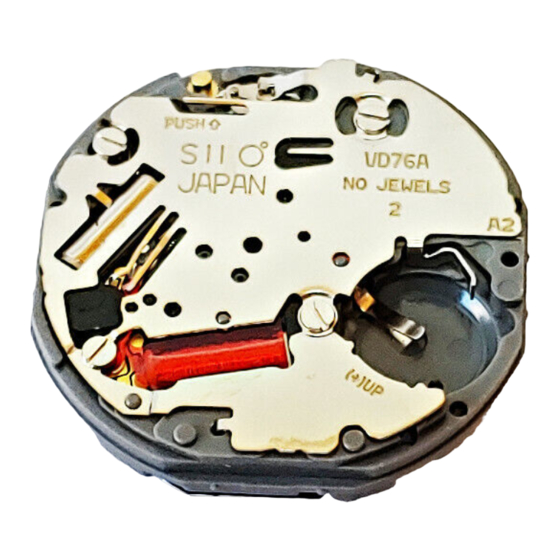

Time Module VD76A Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Cal.
Item
Specification - 1
Specification - 2
Appearance
Casing
Hand Fitting
Hand Setting Stem
Dial
Casing Ring
Assembly Plan
Hands
VD76A
SII Products
Revised on: 27. Jul. 2011
23. 70 mm
ψ
H
3. 45 mm
Version No.
Version 4
Version 1
Version 5
Version 6
Version 4
Version 4
Version 2
Version 1
Version 6
Version 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the VD76A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Time Module VD76A

Summary of Contents for Time Module VD76A

  • Page 1 Revised on: 27. Jul. 2011 Cal. VD76A 23. 70 mm ψ 3. 45 mm Item Version No. Specification - 1 Version 4 Version 1 Specification - 2 Version 5 Appearance Version 6 Casing Version 4 Hand Fitting Version 4 Hand Setting Stem...
  • Page 2 MOVEMENT SPECIFICATION - 1 CAL.VD76A 10 1/2 Ligne Quartz Movement Two Hands with 3 Eyes ( Day/Date/Small second indicator ) 1. MOVEMENT DIMENSIONS · Outside diameter 22.60mm (12H~6H) x 22.60mm (3H~9H) ψ 2 3.70 · Casing diameter 2 3.30 22.10mm (12H~6H) x 21.40mm (3H~9H) ψ...
  • Page 3 Movement Specification - 2 CAL. VD76A OPERATION minute hand date hand [ normal position ] no function ( free ) day hand hour hand small second hand date change [ 1st click ] ( counter-clockwise ) time setting, [ 2nd click ]...
  • Page 6 Center post 中心柱位 Type M Type L 一般針高 高針 Maximum height from main plate surface 與機芯平面之最大高度 Total height incl. movement 機芯總高度...
  • Page 8 TYPE M 一般針高 高針 TYPE L TYPE M 一般針高 高針 TYPE L Hour wheel 時針輪 Center wheel 分針輪 Small second wheel 小秒針輪 Day wheel 星期針輪 Date star 日曆針輪 TYPE M 一般針高 高針 TYPE L...

  • Page 14: Technical Guide

    Revised on : 24. Dec. 2013 TECHNICAL GUIDE & PARTS CATALOGUE Cal.VD7Series VD72/73/74/75/76/77/78/79A ANALOGUE QUARTZ SII Products...

  • Page 15: Parts Catalogue / Technical Guide

    22.10 mm ： between 12 o'clock and 6 o'clock sides Casing diameter 21.40 mm ： between 　3 o'clock and 9 o'clock sides Total height 3.45 mm VD72A VD73A VD74A VD75A VD76A VD77A VD78A VD79A Cal. No. hands 2Hands (hour , minute) Small Second hand （6H） 24Hour hand (12H)
  • Page 16 Version-03 MOVEMENT VARIATION VD7A VD74 24hours date small second VD75 VD76 date date small second small second VD73 VD77 VD79 24hours date date small second small second VD72 VD78 date small second SII Products...
  • Page 17 Version-04 PARTS CATALOGUE VD7A ⇒ Disassembling procedures Figs. Lubricating : Types of oil Oil quantity ⇒ Moebius A Normal quantity Reassembling procedures Figs. Moebius Ｆ <<VD72A>> Hour , Minute hands Date calendar hand Dial 0012 079 0012 079 Support for dial side parts screw Support for dial side parts screw 0604 170 Support for dial side parts...
  • Page 18 Version-04 PARTS CATALOGUE VD7A ⇒ Disassembling procedures Figs. Lubricating : Types of oil Oil quantity ⇒ Moebius A Normal quantity Reassembling procedures Figs. Moebius Ｆ <<VD73A>> Hour , Minute hands Small second , Date calendar Dial 0012 079 0012 079 Support for dial side parts screw Support for dial side parts screw 0604 170...
  • Page 19 Version-06 PARTS CATALOGUE VD7A ⇒ Disassembling procedures Figs. Lubricating : Types of oil Oil quantity ⇒ Moebius A Normal quantity Reassembling procedures Figs. Moebius Ｆ <<VD74A>> Hour , Minute hands Dial Small second , Date-Day calendar 24Hour hands 0012 079 Support for dial side parts screw 0012 079 Support for dial side parts screw...
  • Page 20 Version-05 PARTS CATALOGUE VD7A ⇒ Disassembling procedures Figs. Lubricating : Types of oil Oil quantity ⇒ Moebius A Normal quantity Reassembling procedures Figs. Moebius Ｆ <<VD75A>> Hour , Minute hands Dial Small second , Date-Day calendar 0012 079 Support for dial side parts screw 0012 079 Support for dial side parts screw 0604 169...
  • Page 21 Lubricating : Types of oil Oil quantity ⇒ Moebius A Normal quantity Reassembling procedures Figs. Moebius Ｆ <<VD76A>> Hour , Minute hands Small second , Date-Day calendar Dial 0012 079 Support for dial side parts screw 0012 079 Support for dial side parts screw...
  • Page 22 Version-03 PARTS CATALOGUE VD7A ⇒ Disassembling procedures Figs. Lubricating : Types of oil Oil quantity ⇒ Moebius A Normal quantity Reassembling procedures Figs. Moebius Ｆ <<VD77A>> Hour , Minute hands Small second , 24Hour hands Dial 0012 079 Support for dial side parts screw 0012 079 Support for dial side parts screw 0604 173...
  • Page 23 Version-03 PARTS CATALOGUE VD7A ⇒ Disassembling procedures Figs. Lubricating : Types of oil Oil quantity ⇒ Moebius A Normal quantity Reassembling procedures Figs. Moebius Ｆ <<VD78A>> Hour , Minute hands Small second Dial 0012 079 0012 079 Support for dial side parts screw Support for dial side parts screw 0604 173 Support for dial side parts...
  • Page 24 Version-05 PARTS CATALOGUE VD7A ⇒ Disassembling procedures Figs. Lubricating : Types of oil Oil quantity ⇒ Moebius A Normal quantity Reassembling procedures Figs. Moebius Ｆ <<VD79A>> Hour , Minute hands Day-Date calendar hands Dial 0012 079 Support for dial side parts screw 0012 079 Support for dial side parts screw 0604 169...
  • Page 25 Version-06 PARTS CATALOGUE VD7A ⇒ Disassembling procedures Figs. Lubricating : Types of oil Oil quantity ⇒ Moebius A Normal quantity Reassembling procedures Figs. Moebius Ｆ *Refer to the 12pages for the each parts code Battery 0012 168 Battery connection (+) screw 4004 271 Circuit block (with coil block) *Battery connection(+)
  • Page 26 Version-04 PARTS CATALOGUE VD7A Remarks: Different parts for each CAL. Parts code VD72A VD74A VD75A VD76A Parts name VD73A VD77A VD78A VD79A ― ― ― 0100 469 Main Plate ― ― ― ― ― 0100 470 ― ― Small second wheel 0240 169 ―...

  • Page 27: Technical Guide

    Version-02 TECHNICAL GUIDE VD7A ・The explanation here is only for the particular point of Cal.VD7A 1.REMARKS ON DISASSEMBLING 　AND　 REASSEMBLING (1)HAND ・How to install hands Place the movement directly on a flat metal plate or the like to install the hands. Note: How to procedure hands Metal plate ①Dial setting.
  • Page 28 The indicator finger of a Date & Day driving wheels are setting position " ○"mark of Main plate ≪ ≪ ≪ ≪ Cal.VD76A setting position≫ ≫ ≫ ≫ ≪ ≪ ≪ ≪ Cal.VD74A・ ・ ・ ・ VD75A・ ・ ・ ・ VD79A setting position≫ ≫ ≫ ≫...

  • Page 29: Time Setting

    ≪ ≪ ≪ ≪ VD73A≫ ≫ ≫ ≫ ≪ ≪ ≪ ≪ VD74A≫ ≫ ≫ ≫ ≪ ≪ ≪ ≪ VD75A≫ ≫ ≫ ≫ ≪ ≪ ≪ ≪ VD76A≫ ≫ ≫ ≫ ≪ ≪ ≪ ≪ VD79A≫ ≫ ≫ ≫ Note:...
  • Page 30 Version-02 OPERATION VD7A DISPLAY AND CROWN ≪ＶＤ７７Ａ≫ ≪ＶＤ７７Ａ≫ ≪ＶＤ７７Ａ≫ ≪ＶＤ７７Ａ≫ ≪ＶＤ７８Ａ≫ ≪ＶＤ７８Ａ≫ ≪ＶＤ７８Ａ≫ ≪ＶＤ７８Ａ≫ Note: *1: Hour hand *2: Minute hand *3: Small second hand *4: 24Hour hand *5: Crown at normal position *6: First click ・Time setting *5 *6 TIME SETTING Crown 1.pull out the crown to the...
  • Page 31 <<OPERATION MANUAL -- VD7 MULTIEYE SERIES>> <TIME INDICATION> VD72 VD73 VD74 VD75 24 hours date date date date small-second small-second small-second VD76 VD77 VD78 VD79 24 hours date date small-second small-second small-second <TIME SETTING> VD72, 73, 74, 75, 76, 79 1.
  • Page 32 <<OPERATION MANUAL -- VD8 RETROGRADE SERIES>> <TIME INDICATION> VD84 VD85 VD86 VD87 24 hours date date date date (Retrograde) (Retrograde) (Retrograde) (Retrograde) small-second small-second small-second small-second <TIME SETTING> 1. Pull out the crown to 2. Push the crown back 3. Set the date by 4.
  • Page 33 <<OPERATION MANUAL -- VD7 MULTIEYE SERIES>> <TIME INDICATION> VD72 VD73 VD74 VD75 24 hours date date date date small-second small-second small-second VD76 VD77 VD78 VD79 24 hours date date small-second small-second small-second <TIME SETTING> VD72, 73, 74, 75, 76, 79 1.
  • Page 34 <<OPERATION MANUAL -- VD8 RETROGRADE SERIES>> <TIME INDICATION> VD84 VD85 VD86 VD87 24 hours date date date date (Retrograde) (Retrograde) (Retrograde) (Retrograde) small-second small-second small-second small-second <TIME SETTING> 1. Pull out the crown to 2. Push the crown back 3. Set the date by 4.
  • Page 35 <<MANUAL DE OPERACIÓN -- SERIE VD7 MULTIESFERA>> <INDICACIÓN DE HORA> VD72 VD73 VD74 VD75 24 horas fecha fecha día fecha día fecha segundero segundero segundero pequeño pequeño pequeño VD76 VD77 VD78 VD79 24 horas día fecha día fecha segundero segundero segundero pequeño pequeño...
  • Page 36 <<MANUAL DE OPERACIÓN -- SERIE VD8 CON INDICADOR RETRÓGRADO>> <INDICACIÓN DE HORA> VD84 VD85 VD86 VD87 24 horas día día día día fecha fecha fecha fecha (retrógrado) (retrógrado) (retrógrado) (retrógrado) segundero segundero segundero segundero pequeño pequeño pequeño pequeño <AJUSTE DE HORA> 1.
  • Page 37 <<BEDIENUNGSANLEITUNG -- VD7 MULTIEYE SERIE>> <ZEITANZEIGE> VD72 VD73 VD74 VD75 24 Stunden datum datum datum datum Kleiner Kleiner Kleiner Sekundenzeiger Sekundenzeiger Sekundenzeiger VD76 VD77 VD78 VD79 24 hours datum datum Kleiner Kleiner Kleiner Sekundenzeiger Sekundenzeiger Sekundenzeiger <ZEIT EINSTELLUNG> VD72, 73, 74, 75, 76, 79 1.
  • Page 38 <<BEDIENUNGSANLEITUNG -- VD8 RETROGRADE SERIE>> <ZEITANZEIGE> VD84 VD85 VD86 VD87 24 Stunden Wochentag Wochentag Wochentag Wochentag datum datum datum datum (Retrograde) (Retrograde) (Retrograde) (Retrograde) Kleiner Kleiner Kleiner Kleiner Sekundenzeiger Sekundenzeiger Sekundenzeiger Sekundenzeiger <ZEIT EINSTELLUNG> 1. Die Krone in die 2. Drücken Sie die 3.
  • Page 39 <<MANUEL D'UTILISATION -- SÉRIE VD7 MULTIEYE>> <AFFICHAGE DE L'HEURE> VD72 VD73 VD74 VD75 24 H date date jour date jour date cadran des cadran des cadran des secondes secondes secondes VD76 VD77 VD78 VD79 24 H jour date jour date cadran des cadran des cadran des...
  • Page 40 <<MANUEL D'UTILISATION -- SÉRIE VD8 RÉTROGRADE>> <AFFICHAGE DE L'HEURE> VD85 VD86 VD87 VD84 24 H Jour Jour Jour Jour date date date date (Rétrograde) (Rétrograde) (Rétrograde) (Rétrograde) cadran des cadran des cadran des cadran des cadran des secondes secondes secondes secondes secondes <RÉGLAGE DE L'HEURE>...
  • Page 41 <<MANUALE D'USO -- SERIE VD7 MULTIEYE>> <INDICAZIONE DELL'ORA> VD72 VD73 VD74 VD75 24 ore data Giorn data Giorn data mini-secondi mini-secondi mini-secondi VD76 VD77 VD78 VD79 24 ore Giorn data Giorn data mini-secondi mini-secondi mini-secondi <IMPOSTAZIONE DELL'ORA> VD72, 73, 74, 75, 76, 79 1.
  • Page 42 <<MANUALE D'USO -- SERIE VD8 RETROGRADE>> <INDICAZIONE DELL'ORA> VD84 VD85 VD86 VD87 24 ore Giorno Giorno Giorno Giorno data data data data (retrogrado) (retrogrado) (retrogrado) (retrogrado) mini-secondi mini-secondi mini-secondi mini-secondi <IMPOSTAZIONE DELL'ORA> 1. Sfilare la corona sul 2. Premere la corona 3.
  • Page 43 <<MANUAL DE UTILIZAÇÃO -- SÉRIE MULTIVISOR VD7>> <CONFIGURAÇÃO DA HORA> VD72 VD73 VD74 VD75 24 horas data data día data día data pequeno- pequeno- pequeno- segundos segundos segundos VD76 VD77 VD78 VD79 24 horas día data día data pequeno- pequeno- pequeno- segundos segundos...
  • Page 44 <<MANUAL DE UTILIZAÇÃO -- SÉRIE MOVIMENTO RETRÓGRADO VD8>> <INDICAÇÃO DA HORA> VD84 VD85 VD86 VD87 24 horas día día día día data data data data (retrógrado) (retrógrado) (retrógrado) (retrógrado) pequeno-segundos pequeno-segundos pequeno-segundos pequeno-segundos <CONFIGURAÇÃO DA HORA> 1. Puxar o botão de coroa 2.
  • Page 45 VD7 Multi-eye & VD8 Retrograde Series - Calibre List Date : 08.11.2016 Reference VD72A1 VD72A4 VD73A1 VD73A4 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 Product Line Retrograde Series Retrograde Series Retrograde Series Retrograde Series Function Multi-eye...
  • Page 46 VD7 Multi-eye & VD8 Retrograde Series - Calibre List Date : 08.11.2016 Reference VD74A1 VD74A1L VD74A4 VD75A1 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 Product Line Retrograde Series Retrograde Series Retrograde Series Retrograde Series Function Multi-eye...
  • Page 47 VD7 Multi-eye & VD8 Retrograde Series - Calibre List Date : 08.11.2016 Reference VD75A1L VD75A4 VD75A4L VD76A1 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 Product Line Retrograde Series Retrograde Series Retrograde Series Retrograde Series Function Multi-eye...
  • Page 48 VD7 Multi-eye & VD8 Retrograde Series - Calibre List Date : 08.11.2016 Reference VD76A1L VD76A4 VD77A1 VD77A4 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 Product Line Retrograde Series Retrograde Series Retrograde Series Retrograde Series Function Multi-eye...
  • Page 49 VD7 Multi-eye & VD8 Retrograde Series - Calibre List Date : 08.11.2016 Reference VD77A4L VD78A1 VD78A1L VD78A4 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 Product Line Retrograde Series Retrograde Series Retrograde Series Retrograde Series Function Multi-eye...
  • Page 50 VD7 Multi-eye & VD8 Retrograde Series - Calibre List Date : 08.11.2016 Reference VD78A4L VD79A1 VD79A1L VD79A4 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 Product Line Retrograde Series Retrograde Series Retrograde Series Retrograde Series Function Multi-eye...
  • Page 51 VD7 Multi-eye & VD8 Retrograde Series - Calibre List Date : 08.11.2016 Reference VD79A4L VD84A1 VD84A4 VD85A1 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 Product Line Retrograde Series Retrograde Series Retrograde Series Retrograde Series Function Multi-eye...
  • Page 52 VD7 Multi-eye & VD8 Retrograde Series - Calibre List Date : 08.11.2016 Reference VD85A4 VD86A1 VD86A1L VD86A4 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 Product Line Retrograde Series Retrograde Series Retrograde Series Retrograde Series Function Retrograde...
  • Page 53 VD7 Multi-eye & VD8 Retrograde Series - Calibre List Date : 08.11.2016 Reference VD87A1 VD87A4 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 Product Line Retrograde Series Retrograde Series Function Retrograde Retrograde Appearance Size 10 1/2''' 10 1/2''' *Category Spec Sheet Dial Drawing No. VD87 Dial - 1 VD87 Dial - 1 Postion...
