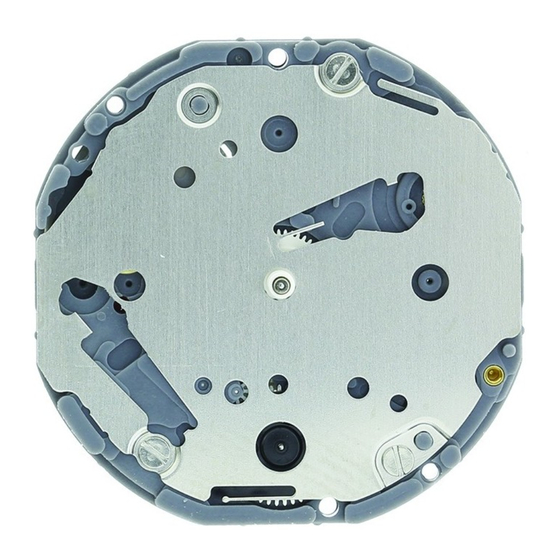

Time Module VD85A Manual

Hide thumbs Also See for VD85A:

Advertisement

Quick Links

Download this manual
Cal.
Item
Specification - 1
Specification - 2
Appearance
Casing
Hand Fitting
Hand Setting Stem
Dial
Casing Ring
Assembly Plan
Hands
VD85A
SII Products
Revised on: 11. Mar. 2016
23. 70 mm
ψ
H
3. 45 mm
Version No.
Version 4
Version 1
Version 4
Version 7
Version 4
Version 4
Version 3
Version 1
Version 6
Version 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the VD85A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Time Module VD85A

Summary of Contents for Time Module VD85A

  • Page 1 Revised on: 11. Mar. 2016 Cal. VD85A 23. 70 mm ψ 3. 45 mm Item Version No. Version 4 Specification - 1 Version 1 Specification - 2 Version 4 Appearance Version 7 Casing Version 4 Hand Fitting Hand Setting Stem...
  • Page 2 MOVEMENT SPECIFICATION - 1 CAL.VD85A 10 1/2 Ligne Quartz Movement Two Hands with 3 Eyes ( Day/Date/Small second ) 1. MOVEMENT DIMENSIONS · Outside diameter 22.60mm (12H~6H) x 22.60mm (3H~9H) ψ 2 3.70 · Casing diameter 22.10mm (12H~6H) x 21.40mm (3H~9H) ψ...
  • Page 3 Movement Specification - 2 CAL. VD85A OPERATION hour hand [ normal position ] minute hand no function ( free ) day hand date hand small second hand date change [ 1st click ] ( counter-clockwise ) time setting, [ 2nd click ]...
  • Page 6 Type M Type L Center post 中心柱位 一般針高 高針 Maximum height from main plate surface 與機芯平面之最大高度 Total height incl. movement 機芯總高度...
  • Page 8 TYPE M 一般針高 高針 TYPE L TYPE M 一般針高 高針 TYPE L Hour wheel 時針輪 Center wheel 分針輪 Small second wheel 小秒針輪 Day wheel 星期針輪 Date star 日曆針輪 TYPE M 一般針高 高針 TYPE L...

  • Page 14: Technical Guide

    Revised on : 28. Apr. 2016 TECHNICAL GUIDE & PARTS CATALOGUE Cal.VD8Serise (Cal.VD84/85/86/87A) ANALOGUE QUARTZ SII Products...

  • Page 15: Parts Catalogue / Technical Guide

    12 o'clock and 6 o'clock sides 21.40 mm between 3 o'clock and 9 o'clock sides Total height 3.45 mm Cal. No. VD84A VD85A VD86A VD87A hands 2Hands (hour , minute) Small Second hand 6H 24Hour hand (12H) × ×...
  • Page 16 Version-02 MOVEMENT VARIATION VD8A VD84A VD85A 24hours (Retrograde) Date Date (Retrograde) Small-second Small-second VD86A VD87A Date (Retrograde) Date (Retrograde) Small-second Small-second SII Products...
  • Page 17 Version-05 PARTS CATALOGUE VD8A Disassembling procedures Figs. Lubricating : Types of oil Oil quantity Moebius A Normal quantity Reassembling procedures Figs. Moebius F <<VD84A>> Hour , Minute hands Small second , Date-Day calendar 24Hour hands Dial 0012 079 Support for dial side parts screw 0802 469 Day driving wheel 0604 171...
  • Page 18 Disassembling procedures Figs. Lubricating : Types of oil Oil quantity Moebius A Normal quantity Reassembling procedures Figs. Moebius F <<VD85A>> Hour , Minute hands Small second , Date-Day calendar hands Dial 0012 079 Support for dial side parts screw 0802 469...
  • Page 19 Version-05 PARTS CATALOGUE VD8A Disassembling procedures Figs. Lubricating : Types of oil Oil quantity Moebius A Normal quantity Reassembling procedures Figs. Moebius F <<VD86A>> Hour , Minute hands Small second , Date-Day calendar hands Dial 0012 079 0802 469 Support for dial side parts screw Day driving wheel 0604 172 0802 469...
  • Page 20 Version-03 PARTS CATALOGUE VD8A Disassembling procedures Figs. Lubricating : Types of oil Oil quantity Moebius A Normal quantity Reassembling procedures Figs. Moebius F <<VD87A>> Hour , Minute hands Small second , Date-Day calendar hands Dial 0012 079 Support for dial side parts screw 0802 469 Day driving wheel 0604 172...
  • Page 21 Version-07 PARTS CATALOGUE VD8A Disassembling procedures Figs. Lubricating : Types of oil Oil quantity Moebius A Normal quantity Reassembling procedures Figs. Moebius F *Refer to the 8pages for the each parts code Battery 0012 168 Battery connection (+) screw 4004 271 Circuit block (with coil block) *Battery connection(+) 0281 452...
  • Page 22 Version-03 PARTS CATALOGUE VD8A Remarks: Parts code VD84A VD85A VD86A Parts name VD87A 0100 471 Main Plate 0100 472 4271 476 4271 477 Battery connection(+) 4271 478 4271 494 0962 033 Intermediate wheel for date corrector C 0804 170 Dial washer...
  • Page 23 Version-02 TECHNICAL GUIDE VD8A The explanation here is only for the particular point of Cal.VD8A 1.REMARKS ON DISASSEMBLING AND REASSEMBLING (1)HAND How to install hands Place the movement directly on a flat metal plate or the like to install the hands. Note: How to procedure hands Day transmission wheel The state of movement is confirmed by the position of...
  • Page 24 Version-02 TECHNICAL GUIDE VD8A (4)Battery How to install Insert the battery aslant in the direction shown by the arrow. Check the battery connection (+) securely touches the side face of the battery. (5)Insulator Insulator Notes To insulate between the battery connection (+) and the battery connection (-), the insulator should put at the three pin securely as bellow.
  • Page 25 Version-02 TECHNICAL GUIDE VD8A (6)Setting position (Notes at the time of disassembling and a reassembling) How to Date-Day driving wheels setting position Note: The Date indicator finger of a Date driving wheels is setting position " "mark of Main plate. The Day indicator finger of a Day driving wheels is setting position "...

  • Page 26: Time Setting

    Version-03 OPERATION VD8A DISPLAY AND CROWN OPERATION VD84A VD85A Note: *1: Hour hand *2: Minute hand *3: Small second hand *4: Date calendar hand *5: Day calendar hand (Retrograde) *6: 24Hour hand Crown at normal position *8: First click Date setting...
  • Page 27 <<OPERATION MANUAL -- VD7 MULTIEYE SERIES>> <TIME INDICATION> VD72 VD73 VD74 VD75 24 hours date date date date small-second small-second small-second VD76 VD77 VD78 VD79 24 hours date date small-second small-second small-second <TIME SETTING> VD72, 73, 74, 75, 76, 79 1.
  • Page 28 <<OPERATION MANUAL -- VD8 RETROGRADE SERIES>> <TIME INDICATION> VD84 VD85 VD86 VD87 24 hours date date date date (Retrograde) (Retrograde) (Retrograde) (Retrograde) small-second small-second small-second small-second <TIME SETTING> 1. Pull out the crown to 2. Push the crown back 3. Set the date by 4.
  • Page 29 <<OPERATION MANUAL -- VD7 MULTIEYE SERIES>> <TIME INDICATION> VD72 VD73 VD74 VD75 24 hours date date date date small-second small-second small-second VD76 VD77 VD78 VD79 24 hours date date small-second small-second small-second <TIME SETTING> VD72, 73, 74, 75, 76, 79 1.
  • Page 30 <<OPERATION MANUAL -- VD8 RETROGRADE SERIES>> <TIME INDICATION> VD84 VD85 VD86 VD87 24 hours date date date date (Retrograde) (Retrograde) (Retrograde) (Retrograde) small-second small-second small-second small-second <TIME SETTING> 1. Pull out the crown to 2. Push the crown back 3. Set the date by 4.
  • Page 31 <<MANUAL DE OPERACIÓN -- SERIE VD7 MULTIESFERA>> <INDICACIÓN DE HORA> VD72 VD73 VD74 VD75 24 horas fecha fecha día fecha día fecha segundero segundero segundero pequeño pequeño pequeño VD76 VD77 VD78 VD79 24 horas día fecha día fecha segundero segundero segundero pequeño pequeño...
  • Page 32 <<MANUAL DE OPERACIÓN -- SERIE VD8 CON INDICADOR RETRÓGRADO>> <INDICACIÓN DE HORA> VD84 VD85 VD86 VD87 24 horas día día día día fecha fecha fecha fecha (retrógrado) (retrógrado) (retrógrado) (retrógrado) segundero segundero segundero segundero pequeño pequeño pequeño pequeño <AJUSTE DE HORA> 1.
  • Page 33 <<BEDIENUNGSANLEITUNG -- VD7 MULTIEYE SERIE>> <ZEITANZEIGE> VD72 VD73 VD74 VD75 24 Stunden datum datum datum datum Kleiner Kleiner Kleiner Sekundenzeiger Sekundenzeiger Sekundenzeiger VD76 VD77 VD78 VD79 24 hours datum datum Kleiner Kleiner Kleiner Sekundenzeiger Sekundenzeiger Sekundenzeiger <ZEIT EINSTELLUNG> VD72, 73, 74, 75, 76, 79 1.
  • Page 34 <<BEDIENUNGSANLEITUNG -- VD8 RETROGRADE SERIE>> <ZEITANZEIGE> VD84 VD85 VD86 VD87 24 Stunden Wochentag Wochentag Wochentag Wochentag datum datum datum datum (Retrograde) (Retrograde) (Retrograde) (Retrograde) Kleiner Kleiner Kleiner Kleiner Sekundenzeiger Sekundenzeiger Sekundenzeiger Sekundenzeiger <ZEIT EINSTELLUNG> 1. Die Krone in die 2. Drücken Sie die 3.
  • Page 35 <<MANUEL D'UTILISATION -- SÉRIE VD7 MULTIEYE>> <AFFICHAGE DE L'HEURE> VD72 VD73 VD74 VD75 24 H date date jour date jour date cadran des cadran des cadran des secondes secondes secondes VD76 VD77 VD78 VD79 24 H jour date jour date cadran des cadran des cadran des...
  • Page 36 <<MANUEL D'UTILISATION -- SÉRIE VD8 RÉTROGRADE>> <AFFICHAGE DE L'HEURE> VD85 VD86 VD87 VD84 24 H Jour Jour Jour Jour date date date date (Rétrograde) (Rétrograde) (Rétrograde) (Rétrograde) cadran des cadran des cadran des cadran des cadran des secondes secondes secondes secondes secondes <RÉGLAGE DE L'HEURE>...
  • Page 37 <<MANUALE D'USO -- SERIE VD7 MULTIEYE>> <INDICAZIONE DELL'ORA> VD72 VD73 VD74 VD75 24 ore data Giorn data Giorn data mini-secondi mini-secondi mini-secondi VD76 VD77 VD78 VD79 24 ore Giorn data Giorn data mini-secondi mini-secondi mini-secondi <IMPOSTAZIONE DELL'ORA> VD72, 73, 74, 75, 76, 79 1.
  • Page 38 <<MANUALE D'USO -- SERIE VD8 RETROGRADE>> <INDICAZIONE DELL'ORA> VD84 VD85 VD86 VD87 24 ore Giorno Giorno Giorno Giorno data data data data (retrogrado) (retrogrado) (retrogrado) (retrogrado) mini-secondi mini-secondi mini-secondi mini-secondi <IMPOSTAZIONE DELL'ORA> 1. Sfilare la corona sul 2. Premere la corona 3.
  • Page 39 <<MANUAL DE UTILIZAÇÃO -- SÉRIE MULTIVISOR VD7>> <CONFIGURAÇÃO DA HORA> VD72 VD73 VD74 VD75 24 horas data data día data día data pequeno- pequeno- pequeno- segundos segundos segundos VD76 VD77 VD78 VD79 24 horas día data día data pequeno- pequeno- pequeno- segundos segundos...
  • Page 40 <<MANUAL DE UTILIZAÇÃO -- SÉRIE MOVIMENTO RETRÓGRADO VD8>> <INDICAÇÃO DA HORA> VD84 VD85 VD86 VD87 24 horas día día día día data data data data (retrógrado) (retrógrado) (retrógrado) (retrógrado) pequeno-segundos pequeno-segundos pequeno-segundos pequeno-segundos <CONFIGURAÇÃO DA HORA> 1. Puxar o botão de coroa 2.
  • Page 41 VD7 Multi-eye & VD8 Retrograde Series - Calibre List Date : 08.11.2016 Reference VD72A1 VD72A4 VD73A1 VD73A4 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 Product Line Retrograde Series Retrograde Series Retrograde Series Retrograde Series Function Multi-eye...
  • Page 42 VD7 Multi-eye & VD8 Retrograde Series - Calibre List Date : 08.11.2016 Reference VD74A1 VD74A1L VD74A4 VD75A1 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 Product Line Retrograde Series Retrograde Series Retrograde Series Retrograde Series Function Multi-eye...
  • Page 43 VD7 Multi-eye & VD8 Retrograde Series - Calibre List Date : 08.11.2016 Reference VD75A1L VD75A4 VD75A4L VD76A1 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 Product Line Retrograde Series Retrograde Series Retrograde Series Retrograde Series Function Multi-eye...
  • Page 44 VD7 Multi-eye & VD8 Retrograde Series - Calibre List Date : 08.11.2016 Reference VD76A1L VD76A4 VD77A1 VD77A4 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 Product Line Retrograde Series Retrograde Series Retrograde Series Retrograde Series Function Multi-eye...
  • Page 45 VD7 Multi-eye & VD8 Retrograde Series - Calibre List Date : 08.11.2016 Reference VD77A4L VD78A1 VD78A1L VD78A4 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 Product Line Retrograde Series Retrograde Series Retrograde Series Retrograde Series Function Multi-eye...
  • Page 46 VD7 Multi-eye & VD8 Retrograde Series - Calibre List Date : 08.11.2016 Reference VD78A4L VD79A1 VD79A1L VD79A4 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 Product Line Retrograde Series Retrograde Series Retrograde Series Retrograde Series Function Multi-eye...
  • Page 47 VD7 Multi-eye & VD8 Retrograde Series - Calibre List Date : 08.11.2016 Reference VD79A4L VD84A1 VD84A4 VD85A1 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 Product Line Retrograde Series Retrograde Series Retrograde Series Retrograde Series Function Multi-eye...
  • Page 48 VD7 Multi-eye & VD8 Retrograde Series - Calibre List Date : 08.11.2016 Reference VD85A4 VD86A1 VD86A1L VD86A4 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 Product Line Retrograde Series Retrograde Series Retrograde Series Retrograde Series Function Retrograde...
  • Page 49 VD7 Multi-eye & VD8 Retrograde Series - Calibre List Date : 08.11.2016 Reference VD87A1 VD87A4 VD7 Multi-eye & VD8 VD7 Multi-eye & VD8 Product Line Retrograde Series Retrograde Series Function Retrograde Retrograde Appearance Size 10 1/2''' 10 1/2''' *Category Spec Sheet Dial Drawing No. VD87 Dial - 1 VD87 Dial - 1 Postion...
