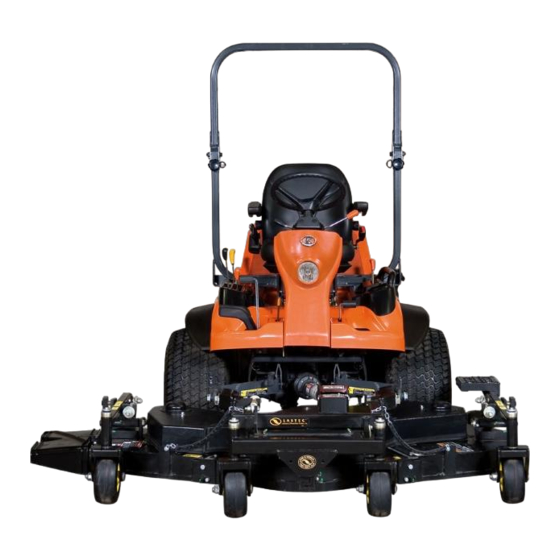

- Page 1 LasTec Articulator Model 325EFK Owner's Manual Manual Part Number: Man-EFK98 LasTec A Division of Wood-Mizer Products, Inc. 7865 N County Rd 100E Lizton, Indiana 46149 Phone (317) 892-4444 Fax (317) 892-4188 www.lastec.com...
-
Page 3: Table Of Contents
Every 25 Operating Hours................5-1 Every 50 Operating Hours................5-2 Every 500 Operating Hours................5-2 Annual ......................5-2 Model 325EFK Articulator Specifications ............. 5-3 Model 325EFK Articulator Maintenance Chart ..........5-5 Table of Contents 325EFK/Odoc100499 Go to www.lastec.com for latest changes in this manual. - Page 4 Go to www.lastec.com for latest changes in this manual.
-
Page 5: To The Owner
You should now fill out the warranty registration form (located in the back of this section) and mail or fax it to LasTec. This form must be completed and returned to the factory within thirty (30) days of purchase in order to validate the warranty. Please do not hesi-... -
Page 6: Lastec Product Warranty
90 days from the date of delivery of the new LasTec product to the original purchaser. Under no circumstances will it cover any merchandise or components thereof, which, in the opinion of the company has been subjected to negligent handling, misuse, alteration, accident, or repairs made with any parts other than those obtainable through LasTec. -
Page 7: Component Manufacturers' Warranties
Be sure to complete the following LasTec Warranty Registration Form and return to LasTec within 30 days of the purchase of your Articulator. This will aid you, LasTec, and your LasTec dealer in the warranting and servicing of your Articulator. - Page 8 Go to www.lastec.com for latest changes in this manual.
- Page 9 Who referred you to the Articulator? Who was the salesman that assisted you? Please check the box to your left if you would not allow Lastec to use your company's name for marketing purposes. Go to www.lastec.com for latest changes in this manual.
- Page 10 Go to www.lastec.com for latest changes in this manual.
-
Page 11: Safety Information
Be familiar with and follow all safety rules in this manual as well all safety rules for any related equipment. Safety Information 325EFK/Odoc100499 Go to www.lastec.com for latest changes in this manual. -
Page 12: Safety Guards And Covers
-- never operate the Articulator with any of the safety covers removed! Safety is a primary concern in the design and manufacture of all LasTec products. Unfor- tunately, our extensive efforts to provide safe equipment can be negated by a single care- less act of an operator. -
Page 13: Preparational Safety Rules
Always perform the pre-operation equipment inspection (Section 3) and the appro- priate maintenance schedule (Section 5) before operating the Articulator. Do not change the engine governor settings or over-speed the engine. Safety Information 325EFK/Odoc100499 Go to www.lastec.com for latest changes in this manual. -
Page 14: Operational Safety Rules
Reduce speed on slopes and in sharp turns to minimize potential tipping or loss of control. Use caution when changing directions on slopes. Be alert for holes in the terrain as well as any other hidden hazard. Always drive 325EFK/Odoc100499 Safety Information Go to www.lastec.com for latest changes in this manual. -
Page 15: Maintenance Safety Rules
Articulator. Always use personal protection equipment such as eye, hand, head, and ear pro- tection when performing any service or maintenance to the tractor or Articulator. Safety Information 325EFK/Odoc100499 Go to www.lastec.com for latest changes in this manual. -
Page 16: Storage Safety Rules
Sand chipped or scratched areas and re-paint them to prevent rust during storage. Lubricate all moving parts of the tractor and Articulator to prevent rust during stor- age. Safety Information 325EFK/Odoc100499 Go to www.lastec.com for latest changes in this manual. -
Page 17: Initial Set-Up
Inspect the entire area around and under the gearbox for any oil leakage. If a leak is dis- covered, repair it and refill the gearbox before operating the Articulator. Initial Set-Up 325EFK/Odoc061600 Go to www.lastec.com for latest changes in this manual. -
Page 18: Deck Drive Belts
Contact your LasTec dealer for the proper belt lengths for your Articulator. -
Page 19: Deck Belts
If the belt you are checking is new, and the idler arm pivots to its maximum stroke without adequately tightening the belt, it is likely you have installed the wrong size belt. Contact your LasTec dealer for the proper belt lengths for your Articulator. -
Page 20: Blades
Keep all personnel clear of all controls while inspecting, adjusting, changing, or performing maintenance to the blades! The Model 325EFK Articulator utilizes three individual 25” high-lift blades, located under each articulated mower deck. NEVER go near, or expose yourself or others in any way to the blades while the engine is... -
Page 21: Mower Deck Height
NEVER attempt to change the cutting deck height while the engine is running! The Model 325EFK Articulator has a standard mower deck height range of 1" to 4 1/2", in 1/4" increments. If you wish to change the mower deck height, do so before attempting to operate the Articulator. -
Page 22: General
Check that the discharge chute is clear of debris, properly mounted, and in good condi- tion. Inspect entire Articulator for loose or entangled parts, debris, obstructions, neglected tools, or any other possible safety hazards, equipment hazards or projectile hazards. Initial Set-Up 325EFK/Odoc061600 Go to www.lastec.com for latest changes in this manual. -
Page 23: Pre-Operation Equipment Inspection Checklist
Inspect entire Articulator for loose or entangled parts, debris, obstructions, or neglected tools. Perform all safety, set-up, and pre-operation procedures listed in your tractor manual. Complete the appropriate maintenance checklist (section 5). Initial Set-Up 325EFK/Odoc061600 Go to www.lastec.com for latest changes in this manual. - Page 24 Go to www.lastec.com for latest changes in this manual.
-
Page 25: Operating Procedures
NEVER raise the Articulator into transport position while the PTO is engaged! The Model 325EFK Articulator can easily be lifted and transported by the tractor. Once the deck lift locking chains are locked into position, simply lift the arms to their maximum height. - Page 26 If the Articulator appears to be operating correctly, slowly increase the tractor idle until the PTO shaft is operating at the tractor manufacturer’s recommended operat- ing RPM. DO NOT EXCEED THIS RPM DURING OPERATION OF THE ARTICU- LATOR. 325EFK/Odoc100499 Operating Procedures Go to www.lastec.com for latest changes in this manual.
-
Page 27: Ground Speed
25" push mower set at the same height as the Articu- lator. If the mower cuts without scalping, the Articulator should be able to handle the area. Operating Procedures 325EFK/Odoc100499 Go to www.lastec.com for latest changes in this manual. -
Page 28: Cutting Wet Grass
Cutting Wet Grass Operation of the Articulator is not adversely affected by wet cutting conditions. However, a slower ground speed is recommended for improved grass discharge and reduced turf tear. 325EFK/Odoc100499 Operating Procedures Go to www.lastec.com for latest changes in this manual. -
Page 29: Maintenance
Perform the appropriate maintenance procedures listed in your tractor manual. Every 25 Operating Hours Complete the 8 Hour Maintenance Checklist. Grease all wheel hubs. Lubricate the PTO quick-disconnect pin or twist sleeve. Maintenance 325EFK/Odoc100499 Go to www.lastec.com for latest changes in this manual. -
Page 30: Every 50 Operating Hours
Annual As an annual maintenance program, LasTec recommends the installation of a com- plete K609 Model 325EFK Articulator Rebuild Kit. Contact your LasTec dealer for more information about the K609 Kit. After installation of the complete K609 Model 325EFK Articulator Rebuild Kit, com- plete the 8, 25, 50, &... -
Page 31: Model 325Efk Articulator Specifications
Deck EFK3 Belt Goodyear Insta-Power 85870 Gearbox Curtis Model 215A, Rat 1:1, Type B Gearbox Oil 16 Ounces Amoco Permagear EP 220 or Equivalent PTO Shaft 24 1/2” - Neapco UTS06-DW25FS Maintenance 325EFK/Odoc100499 Go to www.lastec.com for latest changes in this manual. - Page 32 Go to www.lastec.com for latest changes in this manual.
