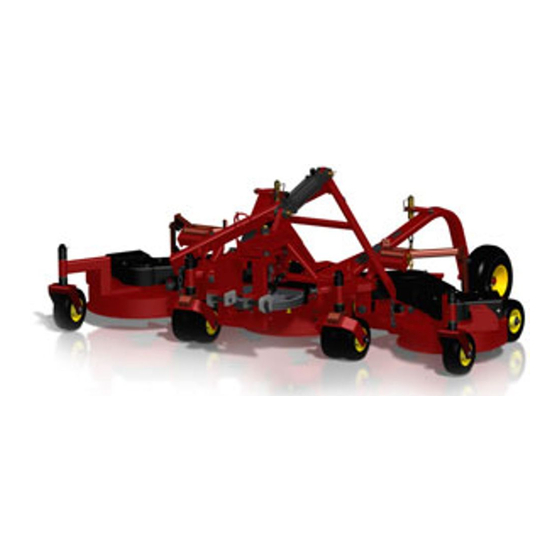

- Page 1 Lastec Articulator Model 721XR/521XR Owner’s Manual Manual Part #: Man-721XR ASTEC 7865 N County Road 100E Lizton, Indiana 46149 Phone (317) 892-4444 Fax (317) 892-4188 www.lastec.com...
- Page 2 © Lastec, 2007 Printed in the United States of America, all rights reserved. No part of this manual may be reproduced in any form by any photographic, electronic, mechanical or other means or used in any information storage and retrieval system without written permission from Lastec, Inc.
-
Page 3: Table Of Contents
Read This Manual BEFORE Operating The Articulator .......... 1-2 Product Registration ....................1-3 If You Need To Order Parts ..................1-3 Lastec Product Warranty ................... 1-4 Component Manufacturers’ Warranties ..............1-6 Servicing The Articulator ..................1-6 Warranty Registration ....................1-7... - Page 4 First 50 Hours ......................5-4 Every 50 Operating Hours..................5-4 Every 200 Operating Hours..................5-4 Every 500 Operating Hours..................5-4 Annual ........................5-5 Articulator Specifications, 521XR/721XR/721XRT..........5-6 5.10 Articulator Maintenance Chart, 721XR/721XRT ............. 5-7 5.11 Torque Values ......................5-8 Table of Contents Lastec//092215...
-
Page 5: To The Owner
SECTION 1 TO THE OWNER Lastec//092215... -
Page 6: Read This Manual Before Operating The Articulator
Keep this manual at hand at all times for ready reference. The designed and tested safety of the Articulator is dependent upon its operation within the guidelines and limitations out- lined in this manual. Always adhere to all the safety rules presented in this manual. Lastec//092215 To The Owner... -
Page 7: Product Registration
These numbers can be found on the serial number plate which is permanently affixed to the mower. You should now fill out the warranty registration form online at www.lastec.com or located in the back of this section. This form must be completed and returned to the fac- tory within fifteen (15) days of purchase in order to validate the warranty. -
Page 8: Lastec Product Warranty
Lastec Product Warranty LASTEC LIMITED GOLF & TURF WARRANTY Lastec (“warrantor”), with its place of business at 7865 N. County Road 100E, Lizton, IN 46149 warrants as stated herein to the original purchaser (“purchaser”) for two (2) years or 2000 hours* of equipment use, whichever comes first, on parts and one (1) year of labor for equipment use from the date of purchase from Lastec (“warrantor”), that the equipment manufactured by warran-... - Page 9 Warranty Parts Return Lastec reserves the right to have parts returned that have been submitted for warranty. The ser- vice department will issue an RMA number. The part must be returned within 30 days of the requested return date. Parts not returned within 30 days of the RMA issue date will result in rejec- tion of claim.
-
Page 10: Component Manufacturers' Warranties
Lastec parts, and has trained mechanics on hand. Be sure to complete the following Lastec Warranty Registration Form and return to Lastec within 15 days of the purchase of the Articulator. This will aid you, Lastec, and Lastec dis- tributor in warranting and servicing of your Articulator. -
Page 11: Warranty Registration
How did you hear about Lastec? Who referred you to Lastec? Who was the salesman that assisted you? Please check the box to your left if you would not allow Lastec to use your company's name for marketing purposes. To The Owner Lastec//092215... -
Page 13: Safety Information
Safety Information SECTION 2 SAFETY INFORMATION Safety Information Lastec//092215... -
Page 14: Warning Symbols
Safety Decals and Symbols The following safety symbols are used on the deck. Operators should become familiar with these symbols and heed the warnings where they appear on the deck. Attention! Pinching/Crushing Danger! Lastec//092215 Safety Information... - Page 15 Safety Information Safety Decals and Symbols Caution! Rotating Blades! Keep Hands and Feet Away from Blades! Keep Covers Locked Down Pinch Point! Read the Manual! Remove the Key! Rotating Parts! Rotating Shaft! Stay Away! Thrown Objects! Safety Information Lastec//092215...
-
Page 16: About This Manual
The illustrations and data used in this manual were current at the time of printing, but the deck may vary slightly due to ongoing engineering changes. Lastec reserves the right to implement engineering and design changes to the deck as may be necessary without prior notification. -
Page 17: Safety Guards And Covers
Safety is a primary concern in the design and manufacture of all Lastec products. Unfor- tunately, our extensive efforts to provide safe equipment can be negated by a single care- less act of an operator. -
Page 18: Preoperational Safety Rules
Verify that the deck is properly mounted, set up, adjusted, and in good operating condition. Always perform the pre-operation equipment inspection and the appropriate mainte- nance schedule (Section 5) before operating the deck. Do not change the engine governor settings or over-speed the engine. Lastec//092215 Safety Information... -
Page 19: Operational Safety Rules
Be sure that all auxiliary equipment switches (blades, lights, etc.) are in the OFF position before attempting to start the engine. Be sure your drive unit is equipped with a ROPS (Roll Over Protection System), and be sure to wear your seat belt. Safety Information Lastec//092215... - Page 20 Never adjust the mower deck height or lift the deck into transport position while the blades are engaged. Never engage the blades with the mower decks raised into transport position. Never place your hands or feet under the deck while the engine is running. Lastec//092215 Safety Information...
- Page 21 Do not allow extended running of drive unit engine indoors - exhaust fumes are deadly. Safety Information Lastec//092215...
-
Page 22: Maintenance Safety Rules
Verify that all warning labels and decals are properly installed, visible, and legible. Always remove debris from the top and bottom of the deck after each use. 2-10 Lastec//092215 Safety Information... -
Page 23: Storage Safety Rules
Remove all accumulated debris from the drive unit, and both the top and bottom of the deck before storing. Sand chipped or scratched areas and re-paint them to prevent rust during storage. Lubricate all moving parts of the drive unit and deck to prevent rust during storage. Safety Information Lastec//092215 2-11... -
Page 24: Hazard Identified Chart
Danger of projectile strike Ejected debris from cutting blades Warning decals. Clear warning in manual. Physical guards around blades. Finger pinch points Moving parts Warning decals stating hazardous locations. Physical guards around such points. Clear warning in manual. 2-12 Lastec//092215 Safety Information... -
Page 25: Initial Set-Up
SECTION 3 INITIAL SET-UP Lastec//092215... -
Page 26: Assembly Instructions
Split Lock Washer 2. Install the lift pins into the Articulator pull arms. The pins locate to the outside of the arms, with the 7/8” split lock washers and 7/8-14 hex nuts to the inside of the arms. Lastec//092215 Initial Set-Up... -
Page 27: Mounting The Articulator To The Tractor
7. Secure the PTO guard retaining chains located at each end of the PTO shaft to the Artic- ulator pull bar and the tractor. These prevent the outer guard from turning with the PTO shaft for safety purposes. Initial Set-Up Lastec//092215... -
Page 28: Hose Spring Installation
Attach one of the provided tie wraps to an elevated point on the traction unit. Assemble on end of the provided spring to the tie wrap located on the traction unit. Assemble the opposite end of the hose spring to the tie wrap locate around the hoses. Lastec//092215 Initial Set-Up... -
Page 29: Pto Shaft Range Verification
PTO. You will need to either install a longer PTO shaft, or avoid this area when cutting. 11. If installing a longer PTO shaft, re-check your maximum PTO shaft compression. Initial Set-Up Lastec//092215... -
Page 30: Gearbox
Add oil if low. If the oil appears excessively contaminated, change the oil. Use SAE 80W-90 grade gear oil. Inspect the entire area around and under the gearbox for any oil leakage. If a leak is dis- covered, repair it and refill the gearbox before operating the Articulator. Lastec//092215 Initial Set-Up... -
Page 31: Mower Deck Leveling Adjustment
Initial Set-Up Mower Deck Leveling Adjustment Mower Deck Leveling Adjustment The 721XR Articulator mowing decks come leveled from the Lastec factory. Should deck leveling be necessary due to shipping, usage, or maintenance, the following procedure can re-level the decks as needed. - Page 32 Spacers on the wheel yoke assembly may be rearranged to accommodate the new tire. See Section 5 Wheels of the 721XR Parts Manual for the correct spacer for the yoke of the new tire. Additional or replacement spacers may be obtained from your Lastec dealer.
-
Page 33: Mower Deck Height Adjustment
Simply set the spacers to the desired deck height, and measure from the bottom of the pan to the floor to verify the setting. Adjust the turnbuckle in or out to calibrate the measurement with the spacer setting. Initial Set-Up Lastec//092215... -
Page 34: Deck Drive Belts
Contact your Lastec distributor for the proper belt lengths for your Articulator. 3-10... -
Page 35: Deck Belts And Alignment
1/2' to 3/4" inward. 3. If you cannot deflect the belt at least 1/2" inward with 10lbs of pressure, loosen the belt slightly. If you can deflect the belt more than 3/4" inward, tighten the belt slightly. To adjust Initial Set-Up Lastec//092215 3-11... - Page 36 7. Clean each entire deck area (under the belt covers) of all excess grease, oil, fuel, grass, or debris before operating the Articulator. This will help prevent damage to the equip- ment, fire hazard, and projectile hazards. 8. Be sure to replace all belt covers and hardware. 3-12 Lastec//092215 Initial Set-Up...
-
Page 37: Blades
Articulator. The Rec- ommended torque value for the blade bolts is 75 ft/lbs. Lastec also offers optional low-lift blades and mulching blades for certain cutting applica- tions. Contact your Lastec distributor for further information about optional blades avail- able. -
Page 38: Gauge Wheels
Check that the discharge chute is clear of debris, properly mounted, and in good condi- tion. Inspect entire Articulator for loose or entangled parts, debris, obstructions, neglected tools, or any other possible safety hazards, equipment hazards or projectile hazards. 3-14 Lastec//092215 Initial Set-Up... -
Page 39: Pre-Operation Equipment Inspection Checklist
Inspect entire Articulator for loose or entangled parts, debris, obstructions, or neglected tools. Perform all safety, set-up, and pre-operation procedures listed in your tractor manual. Complete the appropriate maintenance checklist (section 5). Initial Set-Up Lastec//092215 3-15... -
Page 41: Operating Procedures
SECTION 4 OPERATING PROCEDURES Lastec//092215... -
Page 42: Transporting The Articulator
Danger The Model 721/521XR Articulator uses hydraulics to lower the rear wheels, lift the decks, and fold up the two outside decks(721XR only), allowing easy transportation. This feature has many other benefits, including remote operation, access across narrow bridges, through gates, or doorways, and reduction of required storage space. Complete the Ini- tial Set-Up section of this manual BEFORE attempting to operate the Articulator. - Page 43 8. Upon arriving at the work area, activate the hydraulics, lowering the Articulator. Lower the decks until the hydraulic cylinders are fully extended on the wing decks (721XR) and retracted on the main frame. The cylinders on the outside two decks should be com- pletely extended and centered in the slots on the front decks (decks 1 and 3) to allow for proper deck flotation(721XR only).
-
Page 44: Preparation For Cutting
Articulator. Release the deck lock cables to allow the Articulator to float properly. Secure the deck lock cables to the chains. After transporting to the work area, lower the Articulator into the cutting position. Lastec//092215 Operating Procedures... - Page 45 PTO shaft is operating at the tractor manufacturer's recom- mended operating RPM. IMPORTANT! For best results the Articulator should run as close to 540 RPM as possible without exceeding it. Release the parking brake and carefully begin cutting. Operating Procedures Lastec//092215...
-
Page 46: Recommended Blades
Gator Mulching Blade (Part No. P322) Mulching blades are designed for use with a mulching (discharge block-off) plate or with a complete mulching system. These blades feature a high lift, “double-cut” edge for quick, thorough shredding of grass clippings, leaves and debris. Lastec//092215 Operating Procedures... -
Page 47: Ground Speed
Articulator. When backing up with the articulator, with the blades on or off, you must carefully watch the area around the articulator for obstacles, people, pets and anything that the machine could come into contact with. Operating Procedures Lastec//092215... -
Page 48: Cutting Extreme Contours
If, when cutting excessively wet or tall grass at reduced ground speed, you still do not get adequate grass discharge, consider making two passes over the area. Lastec//092215 Operating Procedures... -
Page 49: Maintenance
SECTION 5 MAINTENANCE Lastec//092215... -
Page 50: Mower Deck Leveling Adjustment
Mower Deck Leveling Adjustment The mowing decks come leveled from the Lastec factory. Should the decks require reset- ting during the course of maintenance, an eccentric cam in the ball joint of the deck pivot assemblies can be adjusted to level the decks. -
Page 51: Every 8 Operating Hours
Clean off decks of any dirt, grease or oil. Clean and gauge wheels to reset the bearing pre-loads. (Reference Service Bulletin SB-0149) Perform the appropriate maintenance procedures listed in your tractor manual. Verify proper installation, operation and flow of grass chutes. Maintenance Lastec//092215... -
Page 52: First 8 Hours
Inspect all blade spindle bearings for wear or damage. Replace if needed. Inspect and re-pack all wheel bearings. Replace if needed. Inspect all component parts and wear points. Repair or replace any worn, damaged, or missing parts. Lastec//092215 Maintenance... -
Page 53: Annual
For your convenience, Lastec has developed a complete Rebuild Kit for your Articl- uator. The 721XR kit number is 040220. The 521XR kit number is 029600. Although this kit is optional, Lastec recommends the installation of this kit as an annual main- tenance program. -
Page 54: Articulator Specifications, 521Xr/721Xr/721Xrt
Mower Deck Cutting Width 11’ 0” 721XR Only 7’ 6” 521XR Only Mower Deck Configuration (7) 21” Articulating Mower Decks 721XR Only Mower Deck Configuration (5) 21” Articulating Mower Decks 521XR Only Blades 721XR Only (7) 21” High Lift P128 (7) 21”... -
Page 55: Articulator Maintenance Chart, 721Xr/721Xrt
Maintenance Articulator Maintenance Chart, 721XR/721XRT 5.10 Articulator Maintenance Chart, 721XR/721XRT Maintenance Lastec//092215... -
Page 56: Torque Values
195 (264.4) ft-lbs (Nm) 160 (217.0) 210 (284.8) ft-lbs (Nm) 170 (230.5) 220 (298.3) ft-lbs (Nm) 175 (237.3) 225 (305.1) ft-lbs (Nm) 302 (409.5) 473 (640.9) ft-lbs (Nm) 300 (406.8) 400 (542.4) ft-lbs (Nm) 466 (631.8) 714 (967.4) Lastec//092215 Maintenance...
