05 The Connection Panel

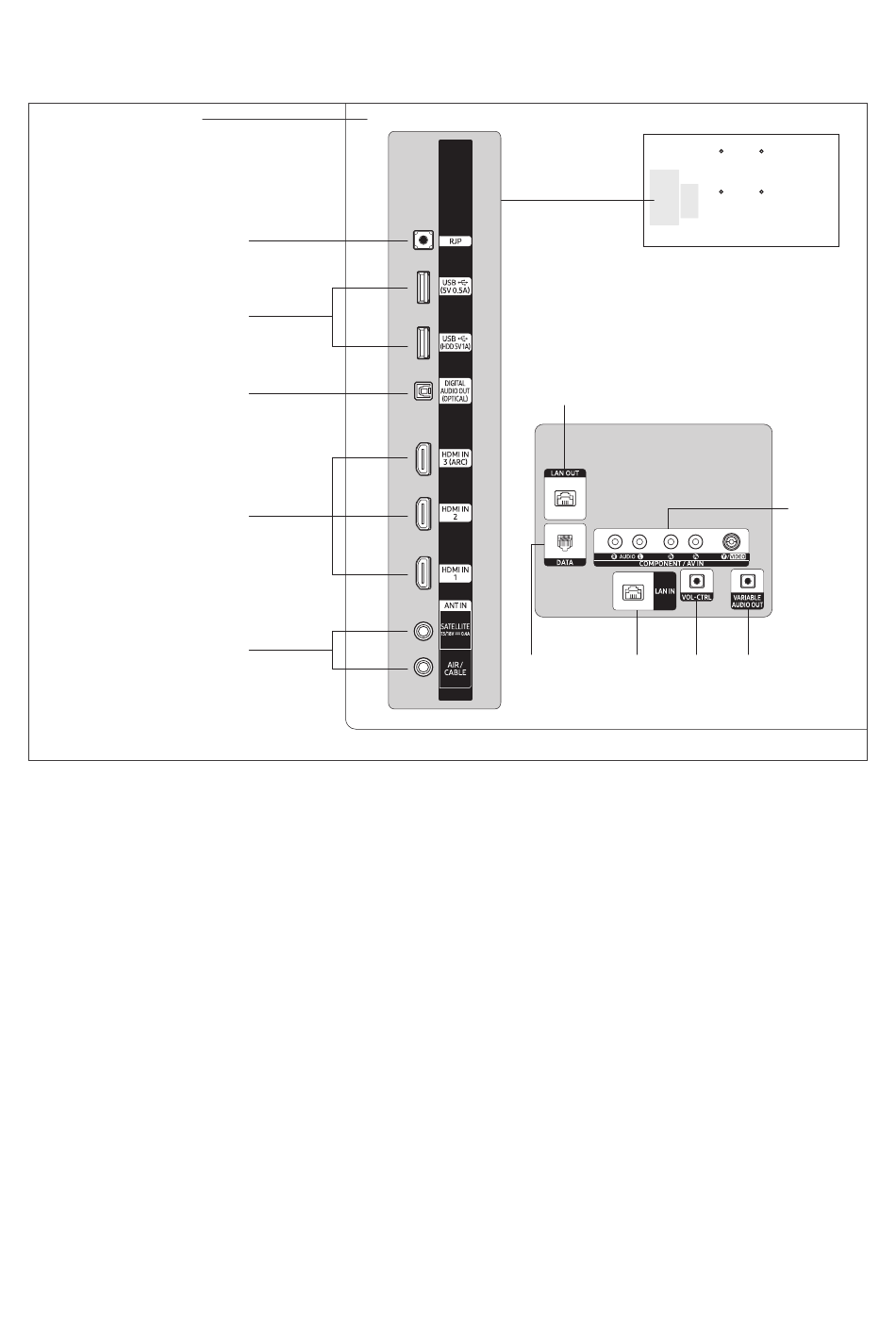

BACK OF TELEVISION
• Whenever you connect an external device to your TV, make sure that power on the TV and the device is turned off.
• When connecting an external device, match the colour of the connection terminal to the cable.
①
RJP
Connect this port to the port on the optional RJP (Remote Jack Pack). This will allow you to connect external
devices (Camcoder, PC, DVD players etc.) easily.
②
USB (5V 0.5A), USB (HDD 5V 1A)
– Connector for software upgrades and Media Play, etc.
– Service connection.
③
DIGITAL AUDIO OUT (OPTICAL)
Connects to a Digital Audio component.
①
②
③
④
⑤
⑥
⑦
English - 21
⑧
⑥ ⑨ ⑩
