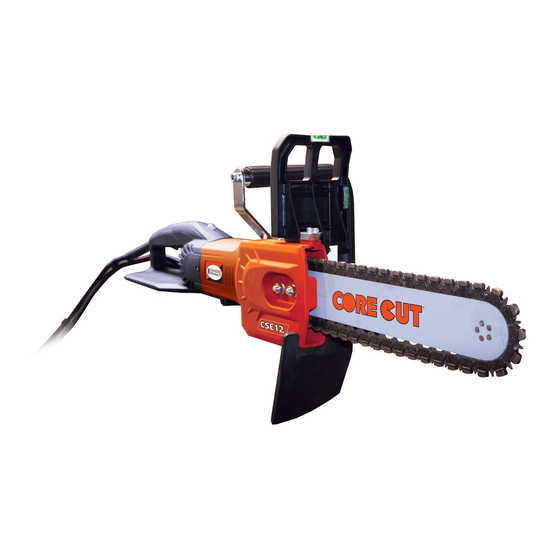

- Page 1 CHAIN SAW PARTS LIST OPPERATOR’S MANUAL CSE12 February 2020...
- Page 2 SPECIFICATIONS Power Input 220 V: 3200 W 110 V: 3000 W Voltage 220-240V~ 50/60Hz or 110-120V~ 50/60Hz (see machine nameplate) No Load Speed min 10000 Max. Linear speed 20.65 m/s Diamond Chain 25 link Sprocket Pitch 3/8" Guide Bar Nominal Size 330 mm (13") Guide Bar Overall Length 382 mm (15")
-
Page 3: General Safety Instructions
GENERAL SAFETY INSTRUCTIONS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool. WORK AREA SAFETY Keep work area clean and well lit. - Page 4 will reduce personal injuries. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. Remove any adjusting key or wrench before turning the power tool on.
-
Page 5: General Chain Saw Safety Warnings
Symbols used in this manual ..read these instructions V……..volts A……..amperes ..always wear a dust mask. Hz……..hertz W……..watt ..wear eye, ear and head protection. ~………..alternating current ………..no load speed ..Do not expose to rain. …..revolutions or reciprocation per minute ..Remove plug from the mains immediately if the ..warning of general danger cable is damaged or cut. -
Page 6: Causes And Operator Prevention Of Kickback
saw for operations different than intended could result in a hazardous situation. CAUSES AND OPERATOR PREVENTION OF KICKBACK Kickback may occur when the nose or tip of the guide bar touches an object, or when the workpiece closes in and pinches the saw chain in the cut. Tip contact in some cases may cause a sudden reverse reaction, kicking the guide bar up and back towards the operator. -
Page 7: Safety Devices
SAFETY DEVICES Hand Guard: Protects the hand from debris and helps to block a broken chain. Never operate without the hand guard in place. Replace if damaged. Splash Flap: Protects from thrown debris and slurry. Never operate without the splash flap in place. Replace if damaged. -
Page 8: Tensioning The Chain
TENSIONING THE CHAIN Note: Proper chain tension with a concrete chain saw is much looser than with a wood chain saw. It must be loose enough to run freely with only water as its lubrication. • An over tensioned chain will give unnecessary load to the motor and will lead to premature chain stretch, sprocket damage, and spindle bearing damage. -
Page 9: Water Supply
WATER SUPPLY This tool must always be used with a supply of clean water at a minimum pressure of at least 1.5bar (20 psi). The water serves as a coolant to avoid the working surface of the diamond segments from overheating and since it is not possible to use oil, the water also serves as the only lubricant available for the chain and guide bar. - Page 10 SHARPENING A NEW OR GLAZED CHAIN If the chain is new, or if the chain’s diamond segments become glazed, sharpen by making a few cuts into an appropriate alumina oxide or silicon carbide dressing stone. Simply make shallow plunge cuts into the stone as many times as necessary to restore its cutting performance.
-
Page 11: Operation
Overheat Thermal Protection If the temperature of the motor gets too high, the thermal protection will shut the motor down. The switch must be first shut off and then restarted. When this happens, do not immediately start cutting after restarting the motor. -
Page 12: Wearing Parts
NOTE: The cutting technique for concrete is very different from a wood cutting chain saw, where cutting with the nose of the guide bar must be avoided. With a wood cutting chain saw, the hook-shaped saw teeth can easily grab the wood fibers, leading to a kickback hazard. Diamond segments which are cutting concrete do not behave in the same way. -
Page 13: Maintenance
Drive Sprocket Running a good chain on a worn out sprocket will prematurely wear out its drive links. After about 3 chains, the drive sprocket will wear away and need replacement. CHANGING THE DRIVE SPROCKET To change the drive sprocket, first remove the side cover, chain, and guide bar. Using circlip pliers, remove the circlip, then the washer which retain the drive sprocket, then lift the sprocket off the splines. - Page 14 WIRING SWITCH Brown WHITE Blue WHITE...
-
Page 15: Exploded View
EXPLODED VIEW... - Page 16 DP # DESCRIPTION 6078724 POWER SUPPLY CABLE (UL-12AWGx3Cx3M-SJTW) 6078796 POWER SUPPLY CABLE(230v) (14AWG(16A)x3Cx3M-SJTW) 6078600 CORD ARMOR (Ø15.5) 6078619 CORD ARMOR (Ø10.3) 2709136 CABLE CLIP 6078728 PANHEAD TAPPING SCREW-B (M4x14) 6078729 SWITCH (HALL EFFECT) 6078730 PANHEAD TAPPING SCREW-B (M4x12) 6078731 SPRING (Ø0.8 x Ø6.4 x Ø8 x 9T x 26L) 6078732 PANHEAD TAPPING SCREW-B (M4x16) 6078733...
- Page 17 DP # DESCRIPTION 6078749 WIRE LEAD (1007-20#35CM) 6078434 CRIMP CAP CONNECTOR (C4) 6078607 CRIMP CAP CONNECTOR (C5) 6078497 O-RING (Ø35x1.5) 6078750 GEAR HOUSING (MATTE SILVER) 6078436 SPRING WASHER (M5) 6078751 PANHEAD TAPPING SCREW-B-W/WASHER (M5x45) 6078608 PANHEAD TAPPING SCREW-B-W/WASHER (M5x50) 6078438 SPINDLE LOCK BUTTON (BLACK) 6078752 HEAD LOCKING KNOB (Ø7xØ12x5.6)
- Page 18 DP # DESCRIPTION 6078777 SIDE COVER 6078778 FLANGE NUT (M8xP1.25) 6078779 HAND GUARD 6078780 TUBULAR SPIRIT LEVEL 6078451 SOCKET CAP SCREW (M5x25xP0.8) 6078487 WIRE HOSE CLAMP 6078781 WATER FEED CONNECTOR KIT 6078782 CABLE PROTECTOR (5/16"x110CM) 6078783 SPRING 6078784 WATER COUPLING 6078483 HOSE JOINER (BLACK-Ø9xØ12) 6078717...
- Page 19 Customer. The responsibility of Diamond Products under this Warranty is limited to replacement or repair of defective parts at Diamond Products’ Elyria, Ohio factory, or at a point designated by it, of such parts as shall appear to us upon inspection at such parts, to have been defective in material or workmanship, with expense for transportation and labor borne by Customer.
