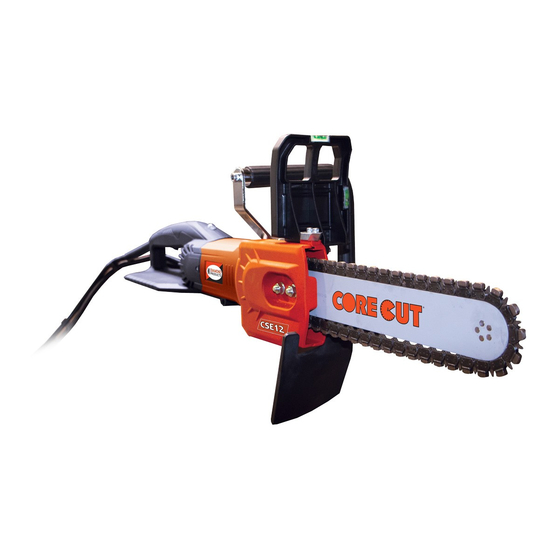

- Page 1 CORE CUT OPERATOR’S MANUAL CSE12 ELECTRIC CHAINSAW Rev.: 21-01...
-
Page 3: Table Of Contents
EQUIPMENT DESIGNATION OPERATOR’S MANUAL Table of Contents Introduction ............................4 Overview ............................5 Equipment Specifications ......................... 6 Safety Precautions ..........................7 Proposition 65 ..........................7 Spark Arrester Requirement ......................7 Respiratory Hazards ........................7 General Safety ..........................8 Chain Saw Safety ..........................9 Transporting Safety .......................... -
Page 4: Introduction
Welcome to the Diamond Products family and thank you for choosing Diamond Products equipment. At Diamond Products we are driven to ensure you are completely satisfied with your product and continually strive to improve our product line so that we can offer you the best possible equipment in the industry. -
Page 5: Overview
EQUIPMENT DESIGNATION OPERATOR’S MANUAL Overview... -
Page 6: Equipment Specifications
EQUIPMENT DESIGNATION OPERATOR’S MANUAL Equipment Specifications Power Input 220 V: 3200 W 110 V: 3000 W Voltage 220-240V~ 50/60Hz or 110-120V~ 50/60Hz (see machine nameplate) No Load Speed min 10000 Max. Linear speed 20.65 m/s Diamond Chain 25 links Sprocket Pitch 3/8"... -
Page 7: Safety Precautions
4443. Respiratory Hazards Refer to the Diamond Products Parts List for additional information and part diagrams. Refer WARNING to the engine manual and manufacturer as the... -
Page 8: General Safety
EQUIPMENT DESIGNATION OPERATOR’S MANUAL General Safety • Read and understand all safety, operations, and maintenance instructions provided in this manual prior to operating or • Operate or service the equipment with any servicing the saw. clothing, hair, or accessories that can snag •... -
Page 9: Chain Saw Safety
EQUIPMENT DESIGNATION OPERATOR’S MANUAL • Chain Saw Safety Cut concrete, masonry, and similar materials only. Do not use chain saw for • Operate the equipment without using the purposes not intended. For example: do appropriate safety equipment required for not use chain saw for cutting wood, metal, the work task. -
Page 10: Operation
EQUIPMENT DESIGNATION OPERATOR’S MANUAL Making a Cut Operation Checklist Starting and Stopping Saw • Proper chain tension and ensure guide bar Starting nuts are tight • This machine has a lock-off type switch. • Good condition of the chain, guide bar, and First press the trigger release, then drive sprocket squeeze the trigger switch to switch on. -
Page 11: Square Cut-Outs
EQUIPMENT DESIGNATION OPERATOR’S MANUAL motor audibly slows by about 20-30%. Water Supply This will keep the diamonds sharp. • This tool must always be used with a Use the bumper spike for leverage to supply of clean water at a minimum assist in keeping pressure on the pressure of at least 1.5bar (20 psi). -
Page 12: Maintenance
EQUIPMENT DESIGNATION OPERATOR’S MANUAL be more effective and economical. Maintenance Installing Guide Bar and Chain General Maintenance With the 2 side cover nuts removed and • This machine operates in a harsh the side cover removed, slacken the tension environment with water and slurry. At the adjustor by turning anticlockwise. - Page 13 EQUIPMENT DESIGNATION OPERATOR’S MANUAL without loosening the side cover nuts could result in damage to the adjustor mechanism. • While holding the guide bar upward from the nose end, turn the tension adjustor clockwise to tighten. • Rotate the chain by hand, grabbing the chain by its diamond segments, to ensure the chain rotates freely.
-
Page 14: Wearing Parts
EQUIPMENT DESIGNATION OPERATOR’S MANUAL Wearing Parts Replacing Carbon Brushes Diamond Chain The carbon brushes are a normal wearing part and must be replaced when they reach their The diamond segments will wear away with wear limit. This machine is equipped with auto- normal use. -
Page 15: Reference
EQUIPMENT DESIGNATION OPERATOR’S MANUAL Reference Appendix A Serial Number Record the CSE12’s serial number below for future reference and customer service purposes. Serial Number... - Page 16 NOTES ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________...
- Page 17 NOTES ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________...
- Page 18 NOTES ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________ ____________________________________________________...
- Page 20 (1) year from the date of shipment to Customer. The responsibility of Diamond Products under this Warranty is limited to replacement or repair of defective parts at Diamond Products’ Elyria, Ohio...
