NEVER remove or attach the battery pack/case when the trans-
ceiver is wet or soiled. This may result in water or dust getting into
the transceiver, battery pack/case, and may result in them being
damaged.
NOTE: Keep the battery terminals clean. It's a good idea to clean
the battery terminals once a week.

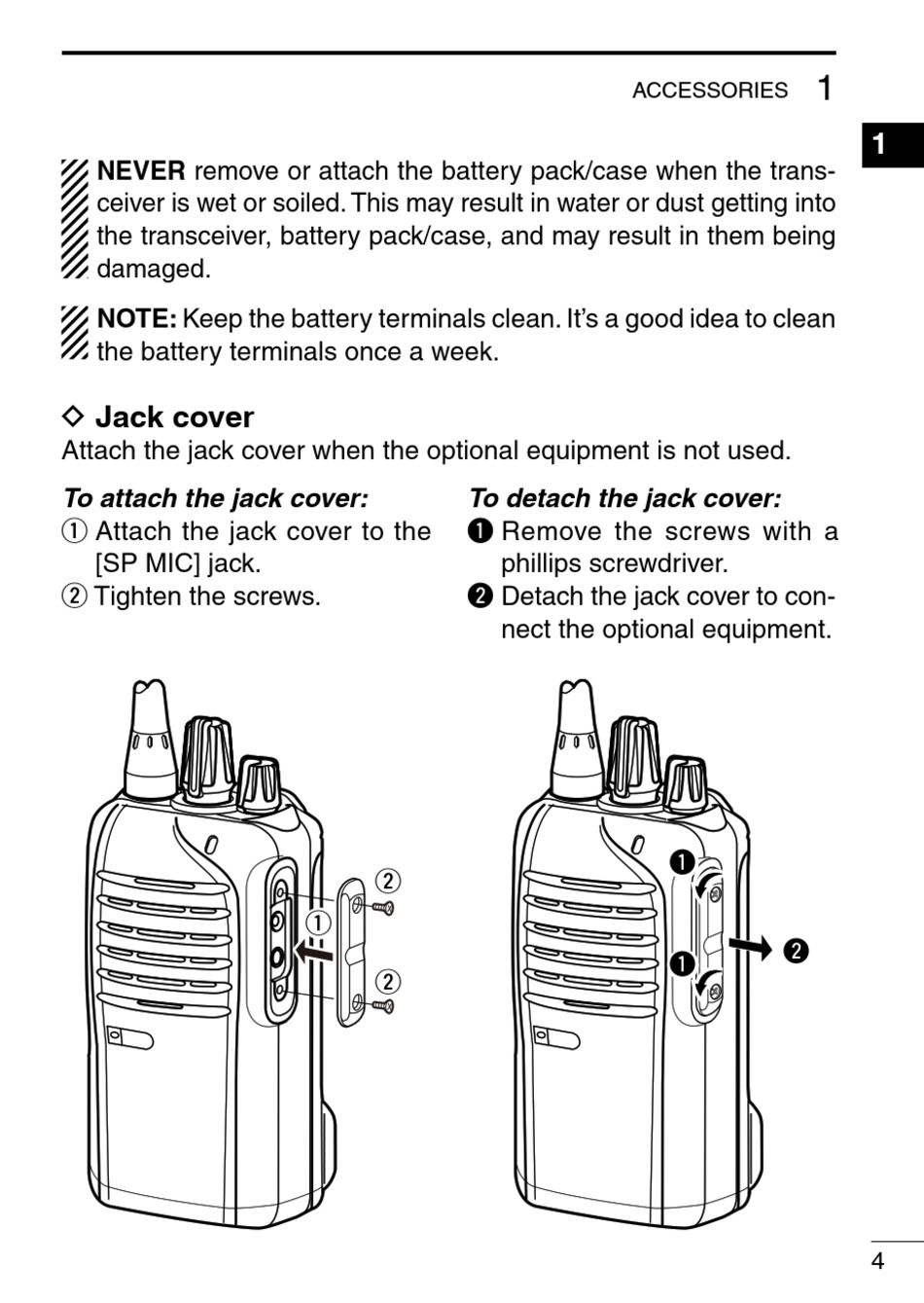

D Jack cover
Attach the jack cover when the optional equipment is not used.
To attach the jack cover:
q Attach the jack cover to the
[SP MIC] jack.
w Tighten the screws.
To detach the jack cover:
q Remove the screws with a
w Detach the jack cover to con-
w
q
w
ACCESSORIES
phillips screwdriver.
nect the optional equipment.
