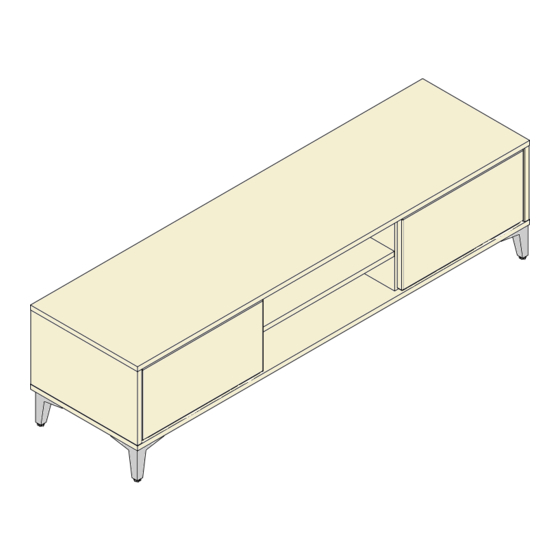

TRANQUIL Large TV unit
Dimensions
No. people Assembly Time
Width:
1470mm
Depth:
401mm
Heigth:
383mm
Important - Please read these instructions fully before starting assembly
If you need help damaged or missing parts, call the JDW Customer Helpline: 0871 231 2000
Assembly Instructions
Please keep for future reference
2 hr
CAT NO:
JS505
1
/ 15
Advertisement
Related Manuals for At Home Collection TRANQUIL JS505
Summary of Contents for At Home Collection TRANQUIL JS505
- Page 1 Assembly Instructions Please keep for future reference TRANQUIL Large TV unit CAT NO: JS505 Dimensions No. people Assembly Time Width: 1470mm 2 hr Depth: 401mm Heigth: 383mm Important - Please read these instructions fully before starting assembly If you need help damaged or missing parts, call the JDW Customer Helpline: 0871 231 2000 / 15...
- Page 2 As a raw material for making furniture, wood has no equal - from its vibrancy through its aesthetics to its many design possibilities. But the wood from which this furniture is made has even more to offer: The FSC label proves that the wood used comes from forests managed to strict ecological, social and economic standards with lasting effect.
-
Page 3: Parts List
PART LIST PARTS LIST DIMENSIONS TOP PANEL 1470x401x16 SIDE PANEL 400x241x16 BOTTOM PANEL 1470x401x16 DIVIDER PANEL 357x241x16 HORIZONTAL PANEL 500x316x16 DOOR 456x233x19 BACK PANEL 1446x251x3 / 15... -
Page 4: Hardware List
HARDWARE LIST D20mm 15x12mm 8x35mm CAM LOCK COVER CAM BOLT CAM LOCK DOWEL HINGE 4x16mm HINGE PLATE SCREW 3.5x13mm 4x16mm 3x20mm PUSH TO OPEN SYSTEM SCREW SCREW HOLDER SCREW / 15... - Page 5 HARDWARE LIST 5x8mm 70x50mm 4.5x45mm 3.5x16mm SLEEVE FELT PAD ANGLE BRACKET SCREW SCREW PLASTIC SUPPORT ADJUSTABLE FOOT M6 NUT M6 / 15...
- Page 6 TOP TIPS BEFORE YOU START! 1. Please check that all parts are present before you start the assembly of your furniture, as once assembled, the furniture is exempt from our home approval policy. 2. For ease and speed of assembly, we recommend that before you commence each step of the assembly, that you identify all the pats required for that step.
- Page 7 STEP 1 CAM BOLT STEP 2 70x50mm 4x16mm SCREW FELT PAD PLASTIC SUPPORT ADJUSTABLE FOOT M6 NUT M6 CAM BOLT I,O,Q,R,S I,O,Q,R,S I,O,Q,R,S I,O,Q,R,S I,O,Q,R,S / 15...
- Page 8 STEP 3 5x8mm 15x12mm 8x35mm 4x16mm SCREW SLEEVE CAM LOCK DOWEL HINGE PLATE Arrow to the edge of the part STEP 4 15x12mm 8x35mm CAM BOLT CAM LOCK DOWEL Arrow to the edge of the part / 15...
- Page 9 STEP 5 15x12mm CAM LOCK Arrow to the edge of the part STEP 6 4x16mm HINGE SCREW / 15...
- Page 10 STEP 7 1/2 turn STEP 8 1/2 turn / 15...
- Page 11 STEP 9 1/2 turn STEP 10 / 15...
- Page 12 STEP 11 1/2 turn STEP 12 3x20mm HOLDER SCREW / 15...
- Page 13 STEP 13 3.5x13mm SCREW PUSH TO OPEN SYSTEM STEP 14 D20mm CAM LOCK COVER / 15...
- Page 14 STEP 15 / 15...
- Page 15 STEP 16 3.5x16mm 4.5x45mm ANGLE BRACKET SCREW SCREW L,M,N Wall fixings are not supplied with this product as different wall materials require different types of fixing devices ( such as Rawl plugs used on brick work).You must use fixing devices suitable for the type of wall you intend to mount this product to.
