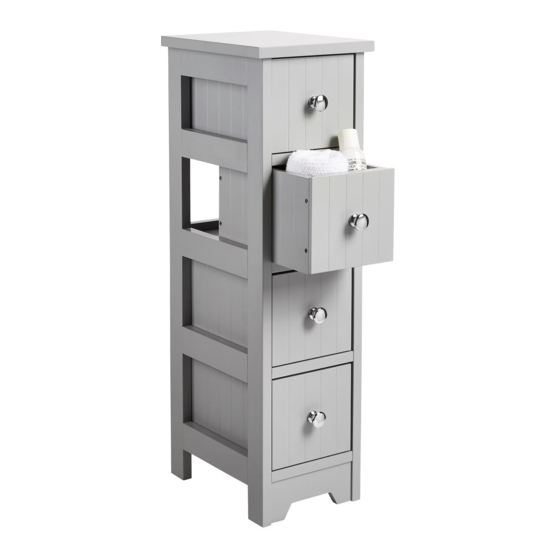

NEW ENGLAND 4 DRAWER UNIT
Dimensions
No. people
Width: 19cm
Depth: 25cm
Height: 65cm
Important - Please read these instructions fully before starting assembly
If you need help of have damaged or missing parts, calls the JDW Customer Helpline: 0871 231 2000
Assembly Instructions
Please keep for future reference
Assembly Time
30 Mins
(approx.)
CAT NO: QN856
CAT NO: US927
Advertisement
Related Manuals for At Home Collection NEW ENGLAND US927
Summary of Contents for At Home Collection NEW ENGLAND US927
- Page 1 Assembly Instructions Please keep for future reference NEW ENGLAND 4 DRAWER UNIT CAT NO: QN856 CAT NO: US927 Dimensions No. people Assembly Time Width: 19cm 30 Mins Depth: 25cm (approx.) Height: 65cm Important - Please read these instructions fully before starting assembly If you need help of have damaged or missing parts, calls the JDW Customer Helpline: 0871 231 2000...
-
Page 2: Care And Maintenance
Safety and Care Advice Important – Please read these instructions fully before starting assembly • Check you have all the • During assembly do not stand • We do not components and tools listed on or put weight on the product, recommend the use pages 2 and 3.. - Page 3 Components - Panels Please check you have all the panels listed below 19(w)cm x 25(d)cm 23.8(d)cm x 63.8(h)cm 23.8(d)cm x 63.8(h)cm 13.6(w)cm x 6(d)cm 13.6(w)cm x 23.7(d)cm 13.6(w)cm x 23.7(d)cm 13.2(w)cm x 12.5(h)cm 21.7(w)cm x 12.5(h)cm 20.6(w)cm x 12.2(d)cm 11.5(w)cm x 12.5(h)cm...
-
Page 4: Tools Required
Components - Fittings Note: may be supplied than are required. Male Camlock x Female Camlock x Handle x Tools required Phillips screwdriver (medium & large) Ruler - Use this ruler to help correctly identify the screws 95 100 110 115 120 125 130 135 140 145 150 155 160 165 170 The screws length is measured from the head to the point (30mm screw shown). - Page 5 Using Camlocks Connect the male Push the male camlock camlock as directed in into the entry hole. the assembly instructions using a screwdriver. Turn the female camlock lnsert the female clockwise with a camlock as shown in the screwdriver. instructions You should feel a click Note: ensure that the when the camlock is...
- Page 6 To assemble the drawers 1. Screw drawer front 10 to 2 x drawer sides 11 using 4 x screw K as shown using a Phillips Screwdriver. 2. Slide drawer bottom 12 along grooves in 2 x panels 11. 3. Connect drawer back 13 to 2 x drawer sides 11 with 4 x screws K using a Phillips Screwdriver...
- Page 7 1. Connect 2 x supports 4 to left side panel by locating them onto 2 x male camlocks. 2. Insert 4 x female camlocks into the under side of supports 4 as shown. Use a screwdriver to turn the female camlock clockwise to lock.
- Page 8 1. Locate top panel 1 onto left side panel 2 and right side panel 3 as shown. 2.Insert 4 x female camlocks into side panels Use a screwdriver to turn the female camlock clockwise to lock. Please refer to the “Using Camlocks”...
- Page 9 Washer x 2 1. To Top Panel 1 x Wall strap L as shown using 1 x Washer and Screw H The unit is floor standing, but it is recommended that the unit is secured to the wall. 1. Move the unit into desired position.
