TIF TIF900 User Manual

Insulation tester

Advertisement

Quick Links

TIF900
Insulation Tester
User's manual
 Copyright Advanced Test Products 2011
Release EN 11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TIF900 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TIF TIF900

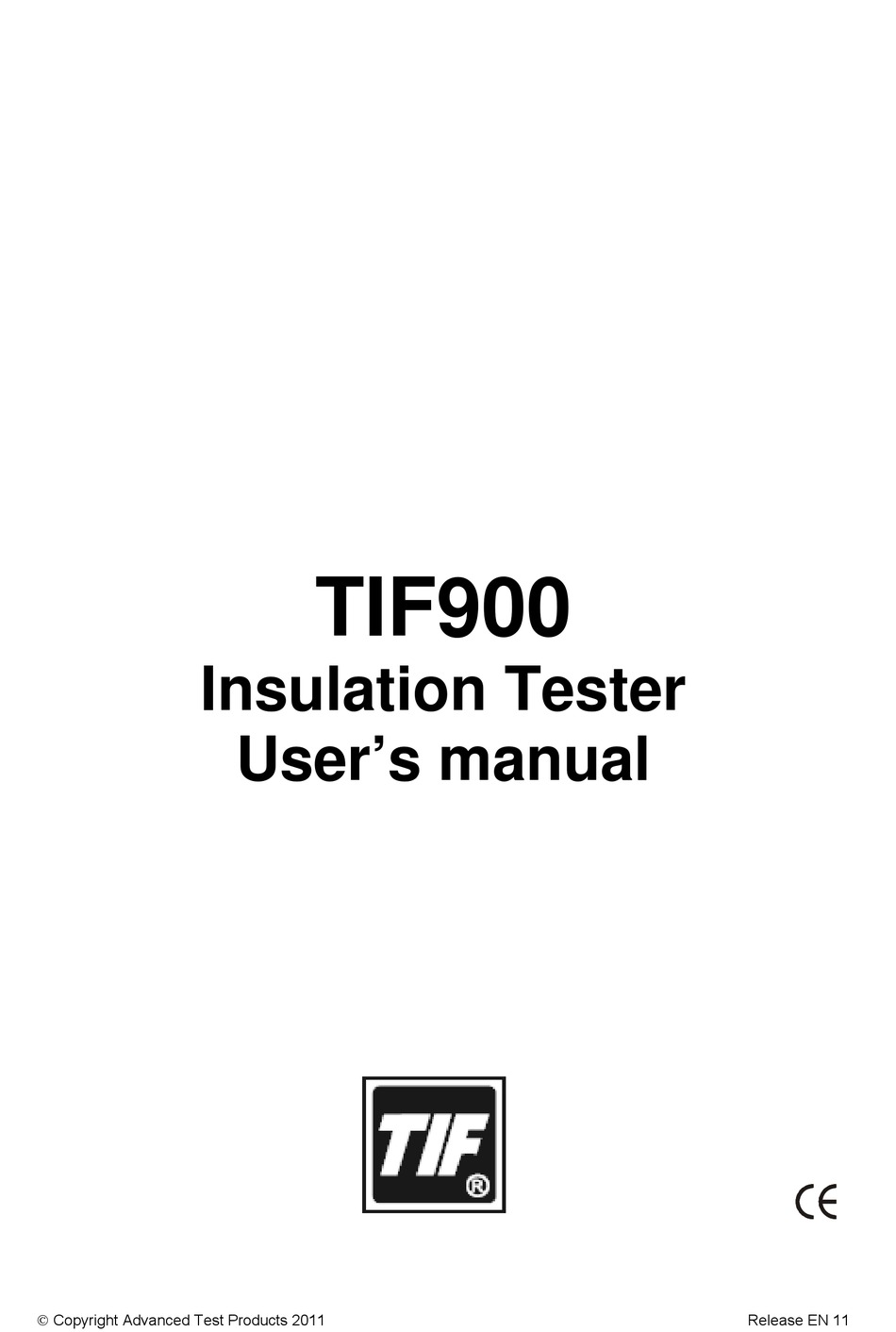

  • Page 1 TIF900 Insulation Tester User’s manual  Copyright Advanced Test Products 2011 Release EN 11...
  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS AND PROCEDURES ....................2 1.1. Preliminary instructions..........................2 1.2. During use ............................... 3 1.3. After use ..............................3 1.4. Overvoltage categories - definitions ......................3 GENERAL DESCRIPTION ..........................4 2.1. Working..............................4 PREPARATION FOR USE ..........................4 3.1.
  • Page 3: Safety Precautions And Procedures

    TIF900 1. SAFETY PRECAUTIONS AND PROCEDURES This instrument complies with safety Standards EN61557 and EN61010-1 related to electronic measuring instruments. CAUTION For your own safety and to avoid damaging the instrument follow the procedures described in this instruction manual and read carefully all notes...
  • Page 4: During Use

    TIF900 1.2. DURING USE CAUTION An improper use may damage the instrument and/or its components or injure the operator.  Before selecting any function, first disconnect the test leads from the circuit under test.  When the instrument is connected to circuits never touch any unused terminal.
  • Page 5: General Description

    TIF900 2. GENERAL DESCRIPTION Dear Customer, the instrument you have purchased, whether used according to the instructions given in this manual, will grant you accurate and reliable measurements. Thanks to a development of newest conception assuring double insulation and overvoltage category III you will enjoy the highest safety.
  • Page 6: Operating Instructions

    TIF900 4. OPERATING INSTRUCTIONS 4.1. INSTRUMENT - DESCRIPTION LEGEND: 1. Inputs 2. Inputs 3. Display 4. ON/OFF key 5. LOCK key 6. ZERO and backlight key 7. GO key 8. FUNC HOLD key Fig. 1: Instrument description key to switch on/off the instrument...
  • Page 7: Dc Voltage Measurement

    TIF900 4.2. DC VOLTAGE MEASUREMENT CAUTION The maximum input voltage is 550+10%V. Don’t try to measure higher voltages to avoid risks of electrical shocks or serious damages to the instrument. Fig. 2: Connection of the instrument’s terminals during test Turn on the instrument Press the arrow keys to select 3.
  • Page 8: Ac Voltage Measurement

    TIF900 4.3. AC VOLTAGE MEASUREMENT CAUTION The maximum input voltage is 550+10%V. Don’t try to measure higher voltages to avoid risks of electrical shocks or serious damages to the instrument. Fig. 3: Connection of the instrument’s terminals during test Turn on the instrument Press the arrow keys to select 3.
  • Page 9: Resistance Measurement And Continuity Test

    TIF900  : 4.4. RESISTANCE MEASUREMENT AND CONTINUITY TEST CAUTION Before taking resistance measurements make sure that the circuit under test is not powered and that eventual condensers are discharged. The measured value is out of accuracy if an input voltage is present.
  • Page 10: Anomalous Cases Which May Occur During  Measurement

    TIF900 Fig. 5: Connection of the instrument’s terminals during calibration procedure Press GO to perform the measurement Press and hold ZERO key for 2s. The instrument resets the resistance of the MODE cables, the symbol ZERO is displayed PEAK 5. The measured value is stored by the instrument and used as offset (which means it’s deducted from all continuity tests performed) until a new pressing of the ZERO key for 2s that voids the calibration.
  • Page 11: Lo: Continuity Test On Earth, Protective And Equalizing Potential Conductors

    TIF900 4.5. Lo: CONTINUITY TEST ON EARTH, PROTECTIVE AND EQUALIZING POTENTIAL CONDUCTORS The measurement is performed with a test current higher than 200 mA (R<5Ω) and open circuit voltage ranging from 4 to 24V DC according to EN 61557-2 and VDE 0413 part 4.
  • Page 12: Anomalous Cases Which May Occur During Lo Measurement

    TIF900 2. Short-circuit the cable ends with each other as shown in Fig. 7 making sure that the metallic parts of test probes and crocodiles are in good touch Fig. 7: Connection of the instrument’s terminals during calibration procedure Press GO to perform the measurement Press and hold ZERO key for 2s.
  • Page 13: M: Insulation Resistance Measurement Test Voltage 250V, 500V, 1000V Dc

    TIF900 4.6. M: INSULATION RESISTANCE MEASUREMENT TEST VOLTAGE 250V, 500V, 1000V DC The measurement is performed according to EN 61557-2 and VDE 0413 part 1. CAUTION  before performing the insulation test make sure that the circuit under test is not energized and all relative loads are disconnected ...
  • Page 14: Measurement Time Setting Mode

    TIF900 CAUTION The message on the display means that the instrument is discharging eventual capacitors. During this phase never disconnect nor touch test leads. 9. At the end of the test the instrument Nominal test voltage value automatically discharge eventual capacitors...
  • Page 15: Maintenance

    TIF900 5. MAINTENANCE 5.1. GENERAL This is a precision instrument. Strictly follow the instructions for use and storage reported in this manual to avoid any possible damage or danger during use. Do not use this tester under unfavorable conditions of high temperature or humidity. Do not expose to direct sunlight.
  • Page 16: Technical Specifications

    TIF900 6. TECHNICAL SPECIFICATIONS 6.1. CHARACTERISTICS Accuracy is indicated as [% of reading + digit number]. It is referred to the following reference conditions: 23°C ± 5°C with RH <70%. DC voltage measurement Range Resolution Accuracy Input impedance Overload protection 0.1 ...
  • Page 17: Electrical

    Directive 2006/95/CE (LVD) and EMC Directive 2004/108/CE 6.3. ACCESSORIES 6.3.1. Standard accessories  Instrument TIF900  Carrying bag  Set of 2 R/B cables, 1.5m + 2 R/B  Certificate of test alligator clips + 1 R test lead  Batteries ...
  • Page 18: Service

    TIF900 7. SERVICE 7.1. WARRANTY CONDITIONS This instrument is guaranteed against material or production defects, in accordance with our general sales conditions. During the warranty period the manufacturer reserves the right to decide either to repair or replace the product.
  • Page 19 TIF900 EN - 18...
