Product Name:
SKU #:
Thank you for purchasing this Luxen Home product. This product has been manufactured with the highest
standards of safety and quality.
PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY.
Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged
parts. If any parts are missing or damaged, do not attempt to assemble or use the product.

CARTON CONTENTS:

Description
Fountain
Pump
Compatible Pumps for this fountain:
Pump Model No.
JR350/LED
JB350/LED
YH400/LED
YH-LV90T
Tools required for assembly: No tools required for assembly.

Assembly Instructions:

1. Unpack the contents of the box and check to make sure that all items are accounted for and in good
condition.
2. Select a flat, level surface for the assembly and final location of your fountain.
3. From the opening at the back of the fountain, insert the water supply tube into the pump outlet. Insert the
LED connector into the pump connector, and twist to tighten. Place the pump in the basin and draw the
pump power cord out of the fountain back.
4. Add clean water to the fountain. The water level should be approximately 30mm lower than the edge of the
basin.
5. Connect the power cable to outlet. If installed properly, water flow in the fountain will begin shortly.
6. Please do not use the electrical plug in wet weather conditions. Please note: On first use, there may be air in
the pump. It may take several minutes until all the air escapes.
7. To eliminate the possibility of water damage around your fountain, check for leaks and excessive splashing
after the initial setup of your fountain. It is highly recommended that this fountain be placed in an area
where it cannot be damaged.
8. Do not leave your fountain running for extended periods of time when no one is present to observe the
performance.

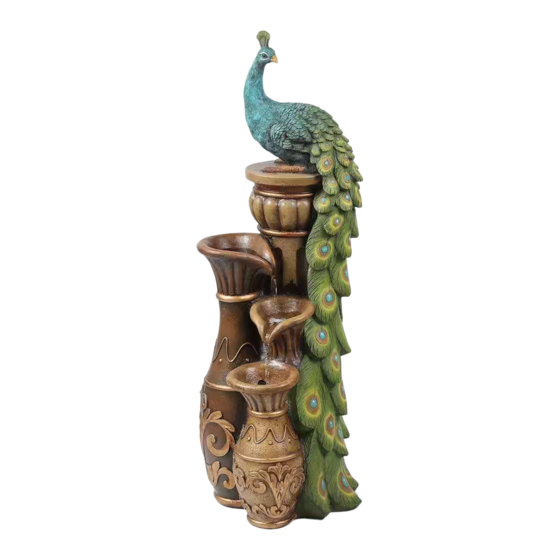

Resin Pedestal Peacock and Urns Outdoor Fountain
WHF904
Quantity
1
1
Contact: sales@winsomehouse.com
Instruction Manual
Please save this manual for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JR350/LED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Luxen Home JR350/LED

  • Page 1 Resin Pedestal Peacock and Urns Outdoor Fountain SKU #: WHF904 Thank you for purchasing this Luxen Home product. This product has been manufactured with the highest standards of safety and quality. PLEASE READ ALL INSTRUCTIONS BEFORE ASSEMBLY. Unpack all parts from Styrofoam and bubble wrap inside the carton to ensure there are no missing or damaged parts.
  • Page 2 Instruction Manual Please save this manual for future reference. Product Name: Resin Pedestal Peacock and Urns Outdoor Fountain SKU #: WHF904 9. Check the area around your fountain on a regular basis to ensure that there is no leakage. 10. Please refresh the fountain with water each week to ensure it in good condition. 11.
  • Page 3 Instruction Manual Please save this manual for future reference. Product Name: Resin Pedestal Peacock and Urns Outdoor Fountain SKU #: WHF904 Note: The above diagram is for illustrative purposes only. Pump Instructions: Special Warnings and Cautions: CAUTION: • The pump has been evaluated for use with water only. •...
  • Page 4 Instruction Manual Please save this manual for future reference. Product Name: Resin Pedestal Peacock and Urns Outdoor Fountain SKU #: WHF904 • Keep the plug dry. Do not expose the plug to water or steam. • Before connecting to the power source, make sure that the pump is assembled and completely submerged in water.
  • Page 5 Instruction Manual Please save this manual for future reference. Product Name: Resin Pedestal Peacock and Urns Outdoor Fountain SKU #: WHF904 PUMP ASSEMBLY INSTRUCTIONS: Remove the pump from the package and untie the power cord. 1. Place the pump in the desired location in your pond or fountain ensuring that it is completely submerged in the water.
