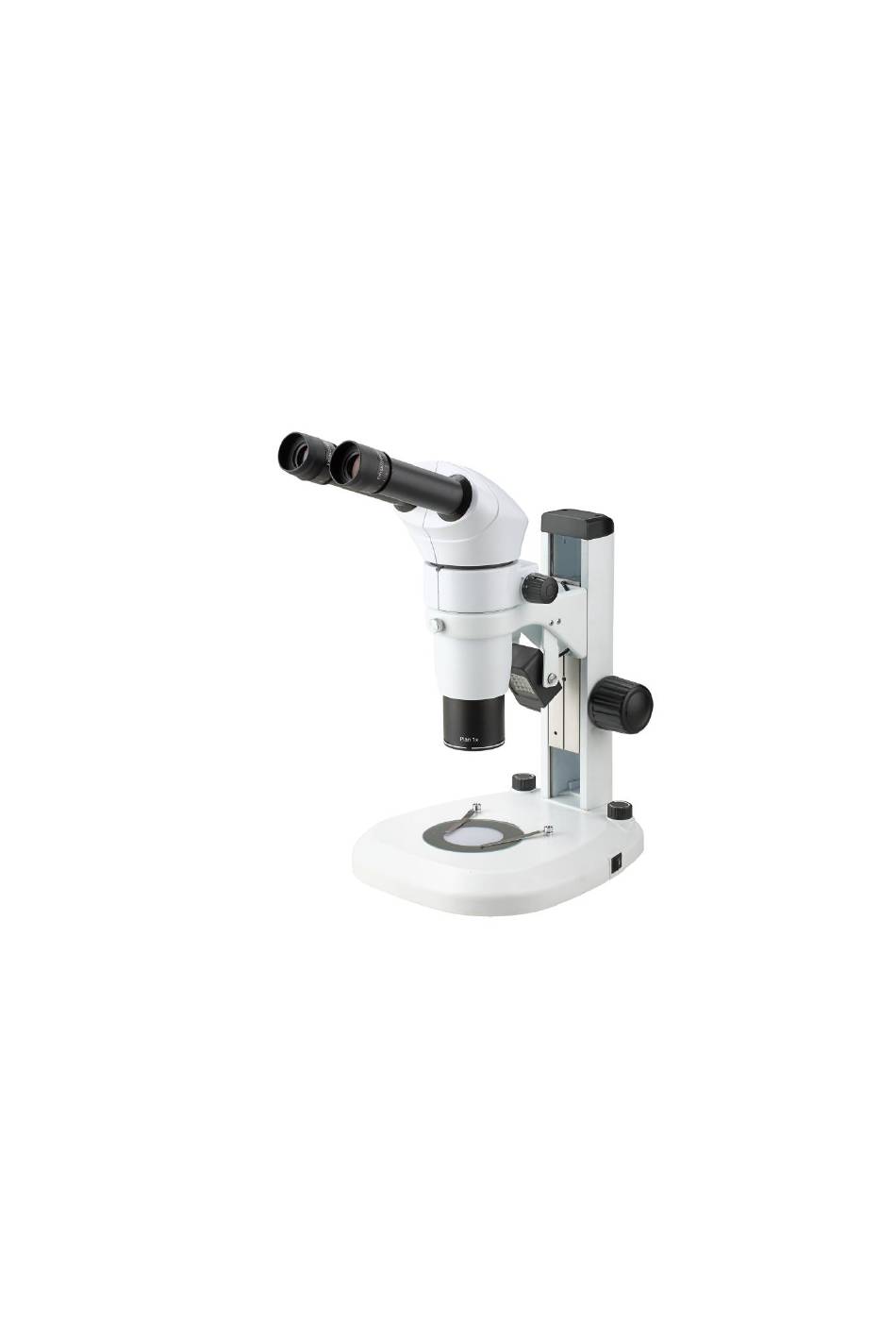

STEREO MICROSCOPE
Models
STM850, STM864, STM880
User Manual
.
This manual is written for stereomicroscope STM850, STM864, STM880
To ensure the
safety, obtain optimum performance and to familiarize yourself fully with the use of this
microscope, it is recommended strongly that you study this manual thoroughly before using
the microscope.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for M2 STM850
Summary of Contents for M2 STM850
- Page 1 Models STM850, STM864, STM880 User Manual This manual is written for stereomicroscope STM850, STM864, STM880 To ensure the safety, obtain optimum performance and to familiarize yourself fully with the use of this microscope, it is recommended strongly that you study this manual thoroughly before using...
-
Page 2: Table Of Contents
CONTENTS USER NOTICE ................2 1. Components ................4 2. Assembly ..................5 2.1 Assembly diagram .............. 5 2.2 Detailed Assembly Procedure ........... 6 3. Adjustment and Operation ............9 3.1 Adjusting binocular head ........... 9 3.2 Focus adjustment .............. 10 4．Specification ................ -
Page 3: User Notice
USER NOTICE 1. Safety Precaution 1. Carefully open the box, avoid the accessories, like lens, dropping to ground and being damaged. 2. Check the input voltage, be sure the input voltage which signed on the microscope is consistent with the power supply voltage, or it will bring a serious damage to the instrument. 3. - Page 4 Do not disassemble any parts of the microscope, which will affect the function or decline the performance of the microscope. Place the instrument in a cool, dry position. When not using the microscope, keep it covered with a dust cover.
-
Page 5: Components
1. Components Binocular viewing head Adjustable WF10×eyepieces Focusing Assembly Clamping Knob Zoom body Objectives Power cord Glass stage Brightness adjusting knob Standard base Main Switch Stereo Microscope STM-850、STM-864 Coarse focusing knob Fine focusing knob Stereo Microscope STM-880... -
Page 6: Assembly
2. Assembly 2.1 Assembly diagram The diagram below shows how to assemble the various modules. The numbers indicate the order of assembly. ★When assembling the microscope, make sure that all parts are free of dust and dirt, and avoid scratching any parts or touching glass surfaces. Binocular viewing head ⑤... -
Page 7: Detailed Assembly Procedure
2.2 Detailed Assembly Procedure 2.2.1 Mounting binocular viewing head (Fig.1、Fig.2) ② 1. Rotate the objective① into the objective mount thread on the lower end of the zoom body. ② , as ③ in fig.2. 2. Aligning the positioning pin of the zoom body③ to ①... - Page 8 2.2.2 Mounting binocular head (Fig.3) Loose the clamping bolt⑦ on the pillar⑥ and insert the binocular head and zoom body assembly⑧into the bracket of the pillar, then screw down the bolt⑦. 2.2.3 Mounting eyepieces (Fig.3、Fig.4、 ⑩ Fig.5) 1. Remove the eyepiece dust caps⑨ and gently insert two adjustable eyepieces ⑩...
- Page 9 ① 2.2.6 Mounting aperture iris diaphragm attachment (Fig.8、Fig.9) ② ○Aperture iris diaphragm attachment is optional. 1. Use the provided hexagonal driver to loose the clamping bolt and Fig.8 remove the binocular viewing head ①. Mounting aperture iris diaphragm attachment② to the top end of the zoom body.
-
Page 10: Adjustment And Operation
3. Adjustment and Operation 3.1 Adjusting binocular viewing head 3.1.1Adjusting interpupillary distance (Fig.10) Different users have different interpupillary distances. So when users change, do the interpupillary distance adjustment. While looking through the eyepieces, hold the left and right of the binocular assembly①and adjust the eyepieces by opening or closing them for binocular vision until the left and right fields of view coincide completely. -
Page 11: Focus Adjustment
3. 2 Focus adjustment 3.2.1 Adjusting the rotation tension of the focus (fig.13、fig.14) adjustment knob For these Microscopes (Model Number : STM-850 STM-864),the tension has been adjusted well before delivery. 1．Rotate the focus adjustment knob① to move ① ② the slider② to a lower place for fear that the ②... -
Page 12: 4．Specification
SAFETY PRECAUTION： 1. After the equipment has been used in an observation of a specimen that is accompanied with a potential of infection, clean the parts coming in contact with the specimen to prevent infection. 2. Moving this microscope is accompanied with the risk of dropping the specimen and causing infections. -
Page 13: Outfit
view Dirt on eyepiece Clean eyepiece 3 ． The visibility of the Dust on objective front Clean lens surface image is poor. lens. Diopter ring is not Adjust it correctly. 6. Specimen image blurs correctly adjusted. when zoom magnification is Focus specimen Not in complete focus on changed.
