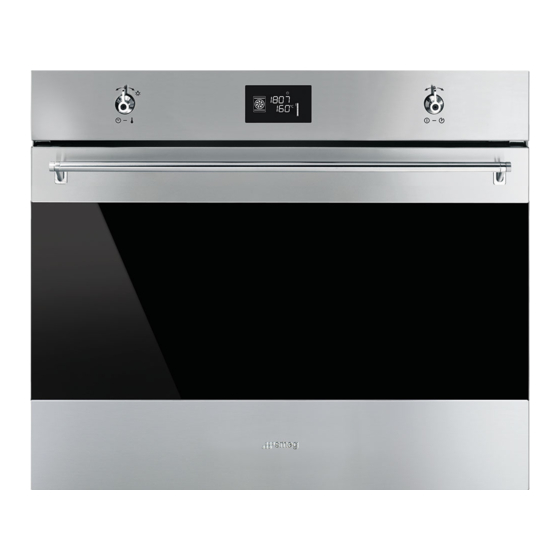

Smeg SF7390X Manual
  1. Manuals
  2. Brands
  3. Smeg Manuals
  4. Oven
  5. SF7390X
  6. Manual

Smeg SF7390X Manual

Hide thumbs Also See for SF7390X:
Table of Contents

Advertisement

Quick Links

Download this manual
We advise you to read this manual carefully, which contains all the instructions for
maintaining the appliance's aesthetic and functional qualities.
For further information on the product: www.smeg.com
Contents
38
38
39
39
39
40
40
40
41
41
42
42
43
44
44
44
45
46
53
54
58
61
61
61
61
61
61
62
62
63
64
66
68
68
68
69
37

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF7390X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Smeg SF7390X

Summary of Contents for Smeg SF7390X

  • Page 1: Table Of Contents

    4.10 Extraordinary maintenance 5 Installation 5.1 Electrical connection 5.2 Cable replacement 5.3 Positioning We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance’s aesthetic and functional qualities. For further information on the product: www.smeg.com...

  • Page 2: Instructions

    Instructions 1 Instructions • Do not modify this appliance. • Do not insert pointed metal objects 1.1 General safety instructions (cutlery or utensils) into the slots in the appliance. Risk of personal injury • Do not try to repair the appliance •...

  • Page 3: Manufacturer Liability

    Instructions 1.4 Disposal For this appliance This appliance must be disposed of • Ensure that the appliance is switched off separately from other waste before replacing the bulb. (Directives 2002/95/EC, 2002/ • Do not rest any weight or sit on the open 96/EC, 2003/108/EC).

  • Page 4: Identification Plate

    Instructions Our appliances are packed in non- 1.7 How to read the user manual polluting and recyclable materials. This user manual uses the following reading • Deliver the packing materials to the conventions: appropriate recycling centre. Instructions Plastic packaging General information on this user Danger of suffocation manual, on safety and final disposal.

  • Page 5: Description

    Description 2 Description 2.1 General Description 1 Control panel 5 Fan 2 Oven light 6 Rack/tray support frames 3 Seal Frame shelf 4 Door...

  • Page 6: Control Panel

    Description 2.2 Control panel 1 Temperature knob 2.3 Other parts This knob allows you to select the cooking Shelves time and temperature, set programmed The appliance features shelves for cooking operations and the current time as positioning trays and racks at different well as turn the light inside the oven on and heights.

  • Page 7: Available Accessories

    Description 2.4 Available accessories Oven tray Some models are not provided with all accessories. Rack Useful for collecting fat from foods placed on the rack above. Deep tray Useful for supporting containers with food during cooking. Tray rack Useful for collecting fat from foods placed on the rack.

  • Page 8: Use

    3 Use Improper use Risk of damage to enamelled 3.1 Instructions surfaces High temperature inside the oven • Do not cover the bottom of the oven during use cavity with aluminium or tin foil sheets. Danger of burns • If you wish to use greaseproof paper, place it so that it will not interfere with the •...

  • Page 9: Using The Accessories

    3.3 Using the accessories Tray rack The tray rack has to be inserted into the tray. Racks and trays In this way fat can be collected separately Racks and trays have to be inserted into the from the food which is being cooked. side guides until they come to a complete stop.

  • Page 10: Using The Oven

    3.4 Using the oven ON: When a function is activated, the display shows the parameters set such as Display temperature, duration and temperature reached. Clock indicator light Minute minder timer indicator light Each time the temperature knob is pressed during a function, the parameters will be Timed cooking with delayed start cycled through in the following order.
  • Page 11 Setting the time Cooking functions On the first use, or after a power failure, will be flashing on the appliance's display. To be able to start any cooking function, the current time must be set. 1. Turn the temperature knob to set the displayed time (keep the knob turned to 1.
  • Page 12 Functions list Fan assisted The operation of the fan, combined with traditional cooking, ensures The combination of the fan and the consistent cooking even with circulaire heating element, in ECO complex recipes. Perfect for biscuits mode, is particularly indicated for and cakes, even when cooking on a single shelf, with simultaneously cooked on several...
  • Page 13 Minute minder Circulaire The combination of the fan and the This function only activates the circulaire heating element buzzer, without stopping cooking. (incorporated in the rear of the oven) allows you to cook different The minute minder can be foods on several levels, as long as activated both during cooking and they need the same temperatures when the appliance is in standby.
  • Page 14 3. A few seconds after the required Timed cooking duration is set, the indicator light Timed cooking is the function stops flashing and timed cooking starts. which allows a cooking operation to be started and then ended after 4. At the end of the cooking time STOP a specific length of time set by the appears on the display and a buzzer user.
  • Page 15 Modifying the data set during timed 2. Turn the knob right or left to set the cooking cooking duration from 00:01 to 12:59. Keep the knob turned for a fast increase During operation, it is possible to modify or decrease. timed cooking duration: 1.
  • Page 16 5. At the end of the cooking time STOP Modifying the data set during programmed cooking appears on the display and a buzzer sounds that can be deactivated by After modifying the cooking pressing the temperature knob. duration, the end of cooking time must be re-set.

  • Page 17: Cooking Advice

    3.5 Cooking advice • To check whether the dessert is cooked right through: At the end of the cooking General advice time, put a toothpick into the highest point of the dessert. If the dough does not stick • Use a fan assisted function to achieve to the toothpick, the dessert is cooked.

  • Page 18: Special Functions And Automatic Programs

    3.6 Special functions and automatic Proving programs Timed defrosting It is not possible to modify the temperature of the proving function. 1. Place the food inside the oven. 2. Select the timed defrosting function, For successful proving, a container indicated by the symbol , using the of water should be placed in the bottom of the oven.
  • Page 19 Sabbath After activating the Sabbath function the settings cannot be altered. Any action on the knobs will produce no effect; only the function knob remains active to allow the appliance to be turned off. This function allows food to be 1.
  • Page 20 Defrost by weight Preset parameters: Type Weight (g) Time (min) Meat Fish Fruit This function defrosts foods on the Bread basis of the type and weight of the frozen product. 1. Place the food inside the oven. Automatic programs 2. Press the function knob to select the defrost by weight function, marked by “dE00”...
  • Page 21 Automatic programs table The times indicated in the tables do not include preheating times. MEAT (01 - 05) Weight Time Subcategory Level Function Temp. (°C) (minutes) Roast beef 1000 Circulaire Pork loin 1000 Turbo Lamb 1000 Turbo Veal 1000 Fan assisted Roast chicken 1000 Turbo...

  • Page 22: Secondary Menu

    BREAD - PIZZA - PASTA (14-20) Weight Time Subcategory Level Function Temp. (°C) (minutes) Leavened bread 1000 Circulaire Pan baked pizza 1000 Fan assisted Stone baked pizza Fan assisted Pasta bake Static Lasagne Static Paella Fan assisted Quiche 1000 Static 3.7 Secondary menu Child Lock mode: This mode allows the The appliance also has a drop-down...
  • Page 23 To release the lock temporarily during cooking, hold the temperature knob down for 5 seconds. One minute after the last If the mode is active, the setting the lock will become active again. indicator light lights up on the display. Touching or varying the position of the temperature and function knobs, the display will show “bloc”...
  • Page 24 Keep Warm Mode (on some models only): Eco-light mode This mode allows the appliance to keep For greater energy savings, the light is cooked food warm (at low temperatures) automatically deactivated one minute from for around an hour after cooking finishes the start of cooking.

  • Page 25: Cleaning And Maintenance

    Cleaning and maintenance 4 Cleaning and maintenance 4.4 Food stains or residues Do not use metallic sponges or sharp 4.1 Instructions scrapers as they will damage the surfaces. Use ordinary non-abrasive products with Improper use the aid of wooden or plastic utensils if Risk of damage to surfaces necessary.

  • Page 26: Cleaning The Door Glazing

    Cleaning and maintenance 2. Grasp the door on both sides with both 4.7 Removing the internal glass panes hands, lift it forming an angle of around For easier cleaning the door internal glass 30° and remove it. panes can be disassembled. 1.

  • Page 27: Cleaning The Inside Of The Oven

    Cleaning and maintenance 4.8 Cleaning the inside of the oven 4. Clean the external glass pane and the panes previously removed. Use For the best oven upkeep, clean it regularly absorbent kitchen roll. In case of after having allowed it to cool. stubborn dirt, wash with a damp sponge Take out all removable parts.

  • Page 28: Vapor Clean: Assisted Oven Cleaning

    Cleaning and maintenance Removing the racks/trays support frames 4.9 Vapor Clean: Assisted oven cleaning Removing the rack/tray support frames enables the sides to be cleaned more Vapor Clean is an assisted easily. cleaning procedure which To remove the rack/tray support frames: facilitates the removal of dirt.
  • Page 29 Cleaning and maintenance • Pour approx. 40 cc of water onto the Vapor Clean setting floor of the oven. Make sure it does not overflow out of the cavity. If the internal temperature is greater than that required for the Vapor clean function, the cycle will be stopped immediately and STOP will appear on the display.

  • Page 30: Extraordinary Maintenance

    Cleaning and maintenance End of the Vapor Clean cycle 4.10 Extraordinary maintenance 1. Open the door and wipe away the less Live parts stubborn dirt with a microfibre cloth. Danger of electrocution 2. Use an anti-scratch sponge with brass filaments on tougher encrustations. •...
  • Page 31 Cleaning and maintenance What to do if... If the door is opened during a fan assisted function, the fan stops: The display is completely off: • This is not a fault. It is a normal operation • Check the mains power supply. of the appliance, useful when cooking •...

  • Page 32: Installation

    Installation 5 Installation Fixed connection Fit the power line with an omnipolar circuit 5.1 Electrical connection breaker in compliance with installation regulations. Power voltage The circuit breaker should be located near Danger of electrocution the appliance and in an easily reachable position.

  • Page 33: Positioning

    Installation 5.3 Positioning Fixing To secure the appliance to the counter, Heavy appliance screw in 4 screws through the holes in the Danger of crush injuries frame. • Place the appliance into the piece of furniture with the aid of a second person. Pressure on the open door Risk of damages to the appliance •...
  • Page 34 Installation Mounting under worktops (mm) Mounting into a column (mm) Make sure that the piece of furniture rear/bottom part has an opening of approx. 60 mm. Make sure that the piece of furniture top/rear part has an opening approx. 35-40 mm deep.
