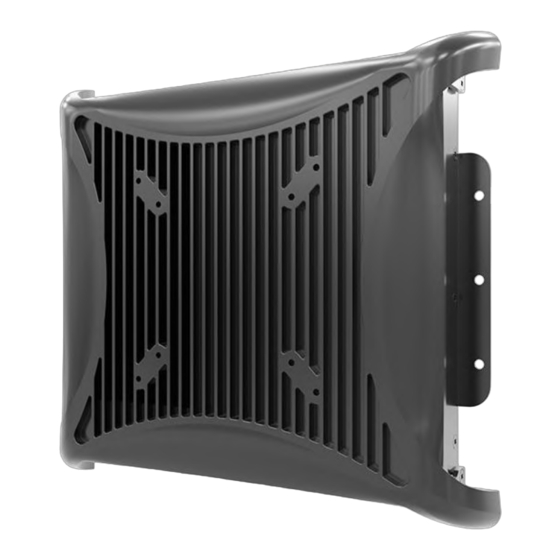

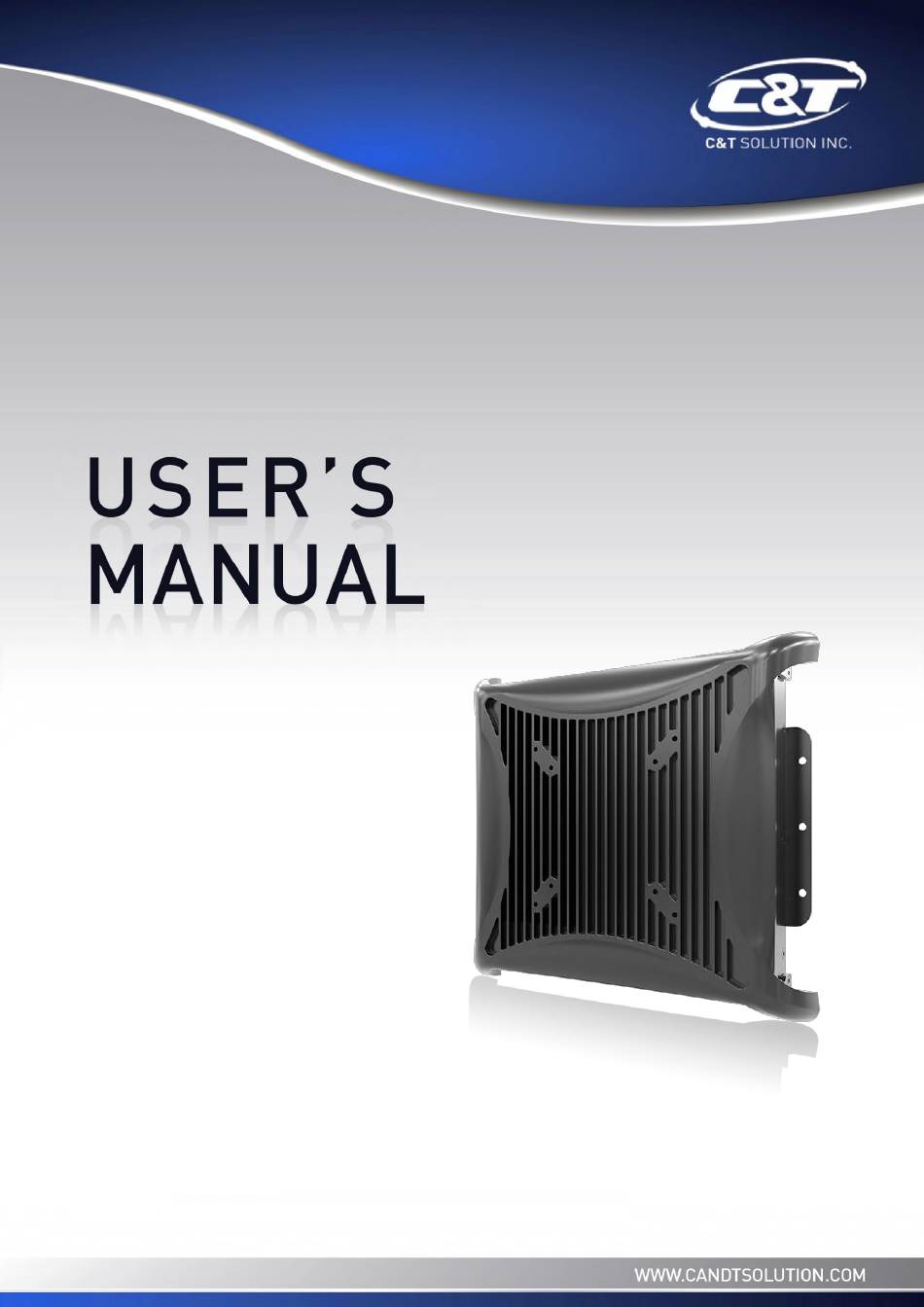

- Page 1 MX200 Series Monitor Module...
-
Page 2: Table Of Contents
MX200 l User’s Manual Table of Contents Prefaces …………………………………………………….……………………………………………. 03 Revision …………………………………………………………………………………………..……………….……….. 03 Disclaimer ………………………………………………………..…….…….………………………….……………….. 03 Copyright Notice …………………………………….…………………….…………………………………………… 03 Trademarks Acknowledgment …………..………………………………………………………....03 Environmental Protection Announcement …………………………….………………….……………….. 03 Safety Precautions ………………………………………….……………………………….…………….………….. 04 Technical Support and Assistance …………………………………….…………….…………….…………….05 Conventions Used in this Manual ………………………………………………………………….….………..05 Package Contents …………………………………………………………………………………………….…………... -
Page 3: Prefaces
Preface MX200 l User’s Manual Prefaces Revision Revision Description Date Manual Released 2021/06/30 Disclaimer All specifications and information in this User’s Manual are believed to be accurate and up to date. C&T Solution Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading. The information in this document is subject to change without notice and does not represent a commitment on the part of C&T Solution Inc. -
Page 4: Safety Precautions
Preface MX200 l User’s Manual Safety Precautions Before installing and using the equipment, please read the following precautions: Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage. The power outlet shall be installed near the equipment and shall be easily accessible. ... -
Page 5: Technical Support And Assistance
Preface MX200 l User’s Manual Technical Support and Assistance 1. Visit the C&T Solution Inc website at https://www.candtsolution.com where you can find the latest information about the product. 2. Contact your distributor, our technical support team or sales representative for technical support if you need additional assistance. -
Page 6: Package Contents
Preface MX200 l User’s Manual Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty MX200 Seris Monitor Module USB Cable VGA Cable Screw Pack Note: Notify your sales representative if any of the above items are missing or damaged. Ordering Information Model No. -
Page 7: Chapter 1 Product Introductions
Chapter 1 Product Introductions... -
Page 8: Overview
The MX200 series supports both digital and analog signal input via three types of display interface: VGA, HDMI and DisplayPort. Touch screen can be connected with USB or COM port. It also has multi- language OSD function for adjusting the view options of display. -
Page 9: Hardware Specification
MX200 l User’s Manual Chapter 1: Product Introductions 1.2 Hardware Specification • 1x VGA Input • 1x HDMI Input Environment • 1x DisplayPort Input • Operating Temperature: Ambient with Air Flow: • 1x Audio Input -10°C to 60°C (with Industrial Grade Peripherals) •... -
Page 10: System I/O
MX200 l User’s Manual Chapter 1: Product Introductions 1.3 System I/O 1.3.1 Rear DC IN COM Port for Touch Panel Connector (Resistive Used to plug a DC power input Touch Only) with terminal block. Use the rear panel female DB-9 touch panel connector to connect the monitor to the system HDMI interface. -
Page 11: Mechanical Dimension
MX200 l User’s Manual Chapter 1: Product Introductions 1.4 Mechanical Dimensions Unit: mm... -
Page 12: Chapter 2 Switches And Connectors
Chapter 2 Switches and Connectors... -
Page 13: Switch And Connector Locations
MX200 l User’s Manual Chapter 2: Switches and Connectors 2.1 Switch and Connector Locations 2.1.1 Top View AUDIO_IN1 DC_IN1 DP_IN1 HDMI1 VGA_IN1 COM_IN1 USB_IN1 2.1.2 Bottom View SIG_OUT1 2.1.3 Rear I/O... -
Page 14: Connector / Switch Definition
MX200 l User’s Manual Chapter 2: Switches and Connectors 2.2 Connector / Switch Definition List of Connector / Switch Connector Location Definition DC_IN1 3-pin DC 9~48V Power Input Connector DP_IN1 DisplayPort Input Connector HDMI HDMI signal connector VGA_IN1 VGA Input Connector COM_IN1 COM Port Input Connector USB_IN1... -
Page 15: I/O Interface Descriptions
MX200 l User’s Manual Chapter 2: Switches and Connectors Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions 2.3.1 Power Connector DC_IN1 Signal 9_48VSB_IN 9_32VSB_ACC GND_VIN 2.3.2 DisplayPort Input DP_IN1 Signal Signal DP_RX3N DP_RX0P DP_RX3P DP_RX2N DP_AUXP DP_RX2P DP_DET DP_RX1N DP_AUXN DP_HPD DP_RX1P... - Page 16 MX200 l User’s Manual Chapter 2: Switches and Connectors Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions 2.3.3 HDMI signal connector HDMI1 Signal Signal HDMI_RX32+ HDMI_DET HDMI_RX3C- HDMI_RX32- HDMI_RX31+ HDMI_SCL HDMI_RX31- HDMI_SDA HDMI_RX30+ HDMI_5V HDMI_RX3C+ HDMI_HPD HDMI_RX3C+...
- Page 17 MX200 l User’s Manual Chapter 2: Switches and Connectors Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions 2.3.4 VGA Input VGA_IN1 Signal Signal RED+ GREEN+ BLUE+ DDC_SDA_VGA HSYNC VGA_DET VSYNC RED- DDC_SCL_VGA GREEN- BLUE-...
- Page 18 MX200 l User’s Manual Chapter 2: Switches and Connectors Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions 2.3.5 COM Port Input COM_IN1 Signal RX_R_2 TX_R_2 2.3.6 USB 2.0 Input Connector USB_IN1 Signal USBN_2 USBP_2...
- Page 19 MX200 l User’s Manual Chapter 2: Switches and Connectors Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions 2.3.7 Audio Input AUDIO_IN1 Signal AGND2 AIN_R AGND2 AGND2 AIN_L...
- Page 20 MX200 l User’s Manual Chapter 2: Switches and Connectors Chapter 2: Switches and Connectors 2.3 I/O Interface Descriptions 2.3.8 VIO Display Module Connector SIG_OUT1 Signal Signal RXO0+ DDC_SDA_VGA RXO0- DDC_SCL_VGA RXO1+ EDID_0 RXO1- EDID_1 RXO2+ EDID_2 RXO2- EDID_3 RXO3+ HDMI_SDA RXO3- HDMI_SCL RXOC+...
- Page 21 MX200 l User’s Manual Chapter 2: Switches and Connectors Chapter 2: Switches and Connectors Signal Signal RXE1+ POWER_KEY_R RXE1- AUTO_KEY_R RXE2+ MENU_KEY_R RXE2- UP_KEY_R RXE3+ DOWN_KEY_R RXE3- RXEC+ BL_ADJ RXEC- BL_EN OUT-R+ OUT-R- LEDB LEDA OUT-L+ OUT-L- V5P0SB V5P0SB V5P0SB V5P0SB V5P0_LED V5P0_LED...
-
Page 22: Chapter 3 Front Panel Controls
Chapter 3 Front Panel Controls... -
Page 23: Users Controls
MX200 l User’s Manual Chapter 3: Front Panel Controls 3.1 Users Controls POWER MENU INCREASE DECREASE AUTO 3.1.1 Power button Turns the monitor on or off. 3.1.2 1. Blue indicates power on. 2. Yellow indicates standby mode. 3.1.3 MENU/ Enter button Press to view the OSD menu. -
Page 24: Osd Operation
MX200 l User’s Manual Chapter 3: Front Panel Controls 3.2 OSD Operation 3.2.1 Luminance ■ Brightness Adjust the luminance level of the screen. ■ Contrast Adjusts the contrast level of the screen. ■ Gamma This item allows you to on or off the Gamma function. ■... -
Page 25: Picture
MX200 l User’s Manual Chapter 3: Front Panel Controls 3.2.2 Picture (VGA input only) ■ Phase Adjust the monitor internal signal phase. ■ Clock Adjust the monitor internal sampling clock rate. ■ H. Position Adjusts the position of the screen image left and right. ■... -
Page 26: Setup
MX200 l User’s Manual Chapter 3: Front Panel Controls 3.2.5 Setup ■ Language Selects the language in which the OSD menu is displayed. The factory default is English. ■ Mute Allows the user to turn the Mute On or Off. ■... -
Page 27: Chapter 4 System Setup
Chapter 4 System Setup... -
Page 28: Connecting With Vio Series Display Module
MX200 l User’s Manual Chapter 4: System Setup 4.1 Connecting with VIO Series Display Module In order to prevent electric shock or system damage, before removing the chassis cover, must turn off power and disconnect the unit from power source. 1. - Page 29 Copyright © C&T Solution Inc. All Rights Reserved www.candtsolution.com...
