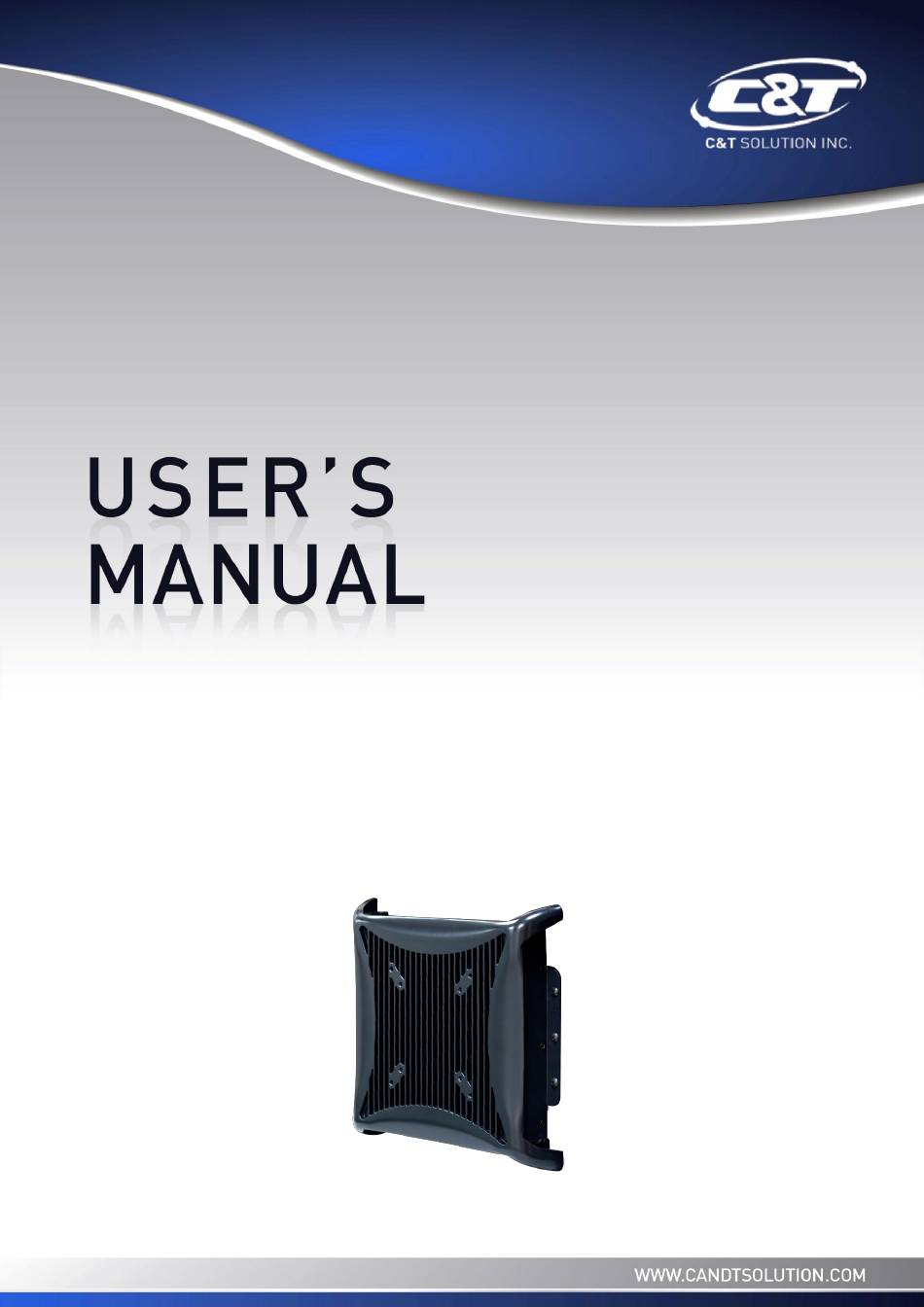

- Page 1 MX100 Series Monitor Module...
-
Page 2: Table Of Contents
MX100 l User’s Manual Table of Contents Prefaces …………………………………………………….……………………………………………. 03 Revision …………………………………………………………………………………………..……………….……….. 03 Disclaimer ………………………………………………………..…….…….………………………….……………….. 03 Copyright Notice …………………………………….…………………….…………………………………………… 03 Trademarks Acknowledgment …………..………………………………………………………....03 Environmental Protection Announcement …………………………….………………….……………….. 03 Safety Precautions ………………………………………….……………………………….…………….………….. 04 Technical Support and Assistance …………………………………….…………….…………….…………….05 Conventions Used in this Manual ………………………………………………………………….….………..05 Package Contents …………………………………………………………………………………………….…………... -
Page 3: Prefaces
Preface MX100 l User’s Manual Prefaces Revision Revision Description Date Manual Released 2016/09/30 Switches Definition Revised 2018/10/09 Disclaimer All specifications and information in this User’s Manual are believed to be accurate and up to date. C&T Solution Inc. does not guarantee that the contents herein are complete, true, accurate or non-misleading. The information in this document is subject to change without notice and does not represent a commitment on the part of C&T Solution Inc. -
Page 4: Safety Precautions
Preface MX100 l User’s Manual Safety Precautions Before installing and using the equipment, please read the following precautions: Put this equipment on a reliable surface during installation. Dropping it or letting it fall could cause damage. The power outlet shall be installed near the equipment and shall be easily accessible. ... -
Page 5: Technical Support And Assistance
Preface MX100 l User’s Manual Technical Support and Assistance 1. Visit the C&T Solution Inc website at www.candtsolution.com where you can find the latest information about the product. 2. Contact your distributor, our technical support team or sales representative for technical support if you need additional assistance. -
Page 6: Package Contents
Preface MX100 l User’s Manual Package Contents Before installation, please ensure all the items listed in the following table are included in the package. Item Description Q’ty MX100 Seris Monitor Module USB Cable VGA Cable Screw Pack Note: Notify your sales representative if any of the above items are missing or damaged. Ordering Information Model No. -
Page 7: Chapter 1 Product Introductions
Chapter 1 Product Introductions... -
Page 8: Overview
The MX100 series supports both digital and analog signal input via three types of display interface: VGA, DVI-D and DisplayPort. Touch screen can be connected with USB or COM port. It also has multi- language OSD function for adjusting the view options of display. -
Page 9: Hardware Specification
MX100 l User’s Manual Chapter 1: Product Introductions 1.2 Hardware Specification • 1x VGA Input Environment • 1x DVI-D Input • Operating Temperature: Ambient with Air Flow: • 1x DisplayPort Input -10°C to 60°C (with Industrial Grade Peripherals) • 1x Audio Input •... -
Page 10: System I/O
MX100 l User’s Manual Chapter 1: Product Introductions 1.3 System I/O 1.3.1 Rear DC IN COM Port for Touch Panel Connector (Resistive Used to plug a DC power input with terminal Touch Only) block. Use the rear panel female DB-9 touch panel connector to connect the monitor to the system DVI-D interface. -
Page 11: Top
MX100 l User’s Manual Chapter 1: Product Introductions 1.3.3 Top VESA Mounting Hole These are mounting holes for VESA mount (75x75mm and 100x100mm) 1.4 Mechanical Dimensions Unit: mm... -
Page 12: Chapter 2 Switches And Connectors
Chapter 2 Switches and Connectors... -
Page 13: Switch And Connector Locations
MX100 l User’s Manual Chapter 2: Switches and Connectors 2.1 Switch and Connector Locations 2.1.1 Top View 2.1.2 Bottom View... -
Page 14: Connector / Switch Definition
MX100 l User’s Manual Chapter 2: Switches and Connectors 2.2 Connector / Switch Definition List of Connector / Switch Connector Location Definition DC_IN1 3-pin DC 9~48V Power Input Connector DVI_IN1 DVI-D Input Connector VGA_IN1 VGA Input Connector DP_IN1 DisplayPort Input Connector COM_IN1 COM Port Input Connector USB_IN1... -
Page 15: Switch Definitions
MX100 l User’s Manual Chapter 2: Switches and Connectors Chapter 2: Switches and Connectors 2.3 Switches Definitions CAR_PWR1: General / CAR Power Mode Switch Switch Definition 1-2 (Left) PC Power Mode（Default） 2-3 (Right) CAR Power Mode 12-24V_SEL1 : Car Power input voltage Switch Switch Definition 1-2 (Left) - Page 16 MX100 l User’s Manual Chapter 2: Switches and Connectors Chapter 2: Switches and Connectors Step of Setting Power Ignition Step 1: To select power ignition by PC/CAR switch. Step 2: To select battery input voltage by 12V / 24V switch. Step 3: To configure the power off delay time, please check the Delay Time Setting Options in advance.
- Page 17 MX100 l User’s Manual Chapter 2: Switches and Connectors DC_IN1: DC Power Input Connector (+9~48V) Connector Type: Terminal Block 1X3 3-pin, 5.0mm pitch Definition +9~48VIN Power Ignition DVI_IN1: DVI-D Input Connector Definition Definition DVI_TX2- DVI_TX2+ DVI Hot Plug Detect DVI_TX0- DVI_DDC_CLOCK DVI_TX0+ DVI_DDC_DATA...
- Page 18 MX100 l User’s Manual Chapter 2: Switches and Connectors DP_IN1: DisplayPort Input Connector Definition Definition DP_LANE0_P DP_LANE3_N DP_LANE0_N DP_LANE1_P DP_AUX_P DP_LANE1_N DP_LANE2_P DP_AUX_N DP_HPD DP_LANE2_N DP_LANE3_P DP_PWR COM_IN1: COM Port Input Connector Connector Type: 9-pin D-Sub Definition RxD4 TxD4 USB_IN1: USB2.0 Input Connector, Type A Definition USB2_D0- USB2_D0+...
- Page 19 MX100 l User’s Manual Chapter 2: Switches and Connectors AUDIO_IN1 : Audio-in Jack (Green) Connector Type: 5-pin Phone Jack Definition OUT_R OUT_L PWR_LED1: Backlight Power LED Status Definition BACKLIGHT LED+ BACKLIGHT LED- SUS_LED1: Backlight Suspend LED Status Definition SUSPEND LED+ SUSPEND LED-...
-
Page 20: Chapter 3 Front Panel Controls
Chapter 3 Front Panel Controls... -
Page 21: Users Controls
MX100 l User’s Manual Chapter 3: Front Panel Controls 3.1 Users Controls POWER MENU INCREASE DECREASE POWER 3.1.1 Power button Turns the monitor on or off. 3.1.2 1. Blue indicates power on. 2. Yellow indicates standby mode. 3.1.3 MENU/ Enter button Press to view the OSD menu. -
Page 22: Osd Operation
MX100 l User’s Manual Chapter 3: Front Panel Controls 3.2 OSD Operation 3.2.1 Luminance ■ Brightness Adjust the luminance level of the screen. ■ Contrast Adjusts the contrast level of the screen. ■ Gamma This item allows you to on or off the Gamma function. ■... -
Page 23: Picture
MX100 l User’s Manual Chapter 3: Front Panel Controls 3.2.2 Picture ■ Phase Adjust the monitor internal signal phase. ■ Clock Adjust the monitor internal sampling clock rate. ■ H. Position Adjusts the position of the screen image left and right. ■... -
Page 24: Setup
MX100 l User’s Manual Chapter 2: Front Panel Controls 2.2.5 Setup ■ Language Selects the language in which the OSD menu is displayed. The factory default is English. ■ Mute Allows the user to turn the Mute On or Off. ■... -
Page 25: Chapter 4 System Setup
Chapter 4 System Setup... -
Page 26: Connecting With Vio Series Display Module
MX100 l User’s Manual Chapter 4: System Setup 4.1 Connecting with VIO Series Display Module In order to prevent electric shock or system damage, before removing the chassis cover, must turn off power and disconnect the unit from power source. 1. - Page 27 Copyright 2016 C&T Solution Inc. All Rights Reserved www.candtsolution.com...
