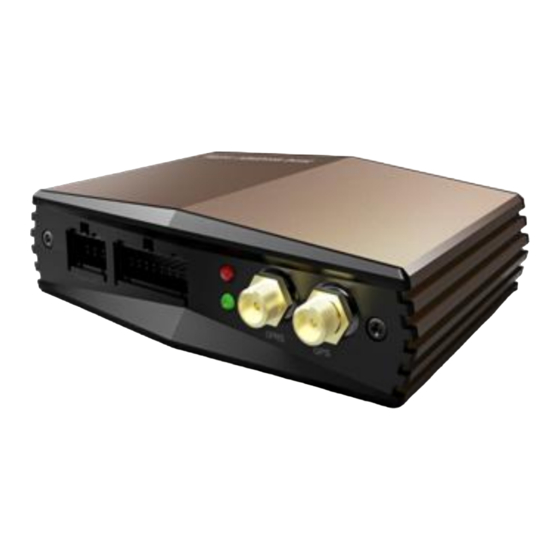

GPS Tracking Device
Notes:..................................................................................................................................................................... 2
1. Product Introduction.......................................................................................................................................3
2. Characteristics................................................................................................................................................. 4
2.1 LED Status...............................................................................................................................................4
2.2.Specifications.......................................................................................................................................... 5
2.3 Device wiring diagram............................................................................................................................ 6
3. Method of installation..................................................................................................................................... 7
3.1. Preparation before installation............................................................................................................... 7
3.2 Installation............................................................................................................................................... 7
4. Web based tracking online activation............................................................................................................7
5. SMS Configuration..........................................................................................................................................8
6. Trouble shooting.............................................................................................................................................11
7. Standard Accessories.....................................................................................................................................12
1
Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website:
ROPE INNOVATION CO., LTD.
Model NO.: M528G
User Manual
Version ：Rope-E17021301
CONFIDENTIAL NO.：ROPE-15121802
www.myrope.cn
Advertisement
Table of Contents
Related Manuals for Rope M528G
Summary of Contents for Rope M528G
-
Page 1: Table Of Contents
3. Method of installation............................. 7 3.1. Preparation before installation....................... 7 3.2 Installation............................... 7 4. Web based tracking online activation......................7 5. SMS Configuration............................8 6. Trouble shooting.............................11 7. Standard Accessories.............................12 Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn... -
Page 2: Notes
When the device work unusually or cannot resume to normal even operated according to the instruction; When the device cannot work as usual after falling, throwing or breaking; When there is obvious damage in the device. Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn... -
Page 3: Product Introduction
Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn... -
Page 4: Characteristics
Continuously in dark status Power off/Faulty Always keep on Working normally Yellow Continuously flash Cannot receive GPS signal Continuously in dark status Power off/Faulty Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn... -
Page 5: Specifications
Size 96mm × 55mm × 26mm Simcard Normal simcard Battery Rechargeable lithium polymer battery 380mAh Internal battery Standby >4h Input 3pcs (including ACC detection) Output 2pcs A/D input Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn... -
Page 6: Device Wiring Diagram
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802 2.3 Device wiring diagram Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn... -
Page 7: Method Of Installation
After you added device successfully on the VMS platform , you can send the SMS Commands to activate device 1. Set IP and PORT SMS command format ： ss,apn,user_name,user_code,ip,port,system number,password E.g.: ss,cmnet, , ,211.154.139.208,7000, 13862626201,123456 Notes: Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn... -
Page 8: Sms Configuration
Password will be recovered to default Password Eg: resetpwd password if set successfully. Check GPS tgoogle,password The device will reply with Google link after Location Eg: tgoogle,123456 receiving the command Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn... - Page 9 88,123456 Check Status status,password Replied SMS: Eg: status,123456 GSM=31 GPRS=1 GPS=10 ACC=N0 SPEED=120 ACCON=30S ACCOFF=120S VCC=12V IMEI=356823031234501 If the password is wrong, it will reply: Get status failed Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn...
- Page 10 It will limit the voice monitoring phone Voice monitoring, Eg: LisLimit,ON,123456 number within the preset SOS alert number Disable Limit for LisLimit,OFF,password Default setting Voice monitoring Eg: LisLimit,OFF,123456 Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn...
-
Page 11: Trouble Shooting
SIM card installed correctly or not. Check whether the connection of power-line is correction or not . (Details: If the users are testing the device in office or at home, M528G has to connect with 12V DC external power supply. If it is tested in the car, make sure the installer connect all the cable correctly.) -
Page 12: Standard Accessories
ROPE INNOVATION CO., LTD. CONFIDENTIAL NO.：ROPE-15121802 7. Standard Accessories Device 6 PIN power cable 4 PIN I/O cable GPS antenna 3G antena Microphone Relay SOS button Copyright © 2017 ROPE INNOVATION CO., LTD. All rights reserved. Website: www.myrope.cn...
