User Manual
VL120002

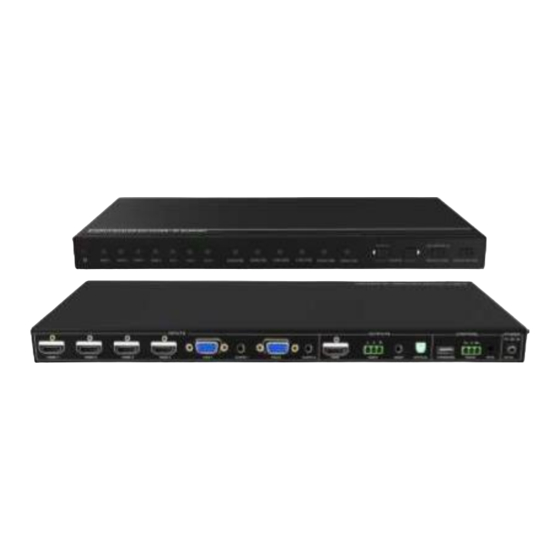

Compact Scaler Switcher 6x1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VL120002 and is the answer not in the manual?

Questions and answers

Related Manuals for VivoLink VL120002

Summary of Contents for VivoLink VL120002

  • Page 1 User Manual VL120002 Compact Scaler Switcher 6x1...
  • Page 2 This manual is only for operation instruction only, not for any maintenance usage. Trademarks Product model, VivoLink and its logo are trademarks of EET Europarts A/S. Any other trademarks mentioned in this manual are acknowledged as the properties of the trademark owner.
  • Page 3 Compact Scaler Switcher 6x1 SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference.  Unpack the equipment carefully and save the original box and packing material for possible future shipment ...

  • Page 4: Table Of Contents

    Compact Scaler Switcher 6x1 Contents 1. Introduction ......................... 1 1.1 Introduction to VL120002................... 1 1.2 Features ......................1 1.3 Package List ...................... 1 2. Panel Description ......................2 2.1 Front Panel ......................2 2.2 Rear Panel ......................3 3. System Connection ..................... 3 3.1 Usage Precautions ....................

  • Page 5: Introduction

    1. Introduction 1.1 Introduction to VL120002 VL120002 is a compact 6x1 mini scaler switcher with 6 video inputs (4 HDMI, 2 VGA), 2 auxiliary audio inputs (switched following VGA), 1 HDMI output and 3 audio outputs (1 dual-mono analog audio, 1 3.5mm stereo audio, 1 optical audio).

  • Page 6: Panel Description

    Compact Scaler Switcher 6x1  1 x User manual Notes： Confirm all the accessories are included, if not, please contact with the dealers. 2. Panel Description 2.1 Front Panel Name Description Indicator for power status  Off when no power. ①...

  • Page 7: Rear Panel

     FIRMWARE: Type-A USB port for updating firmware.  RS232: Serial port, 3-pin pluggable terminal block, connect ③ Control with control terminal (e.g. a PC) to control VL120002.  IR IN: connect to an IR Receiver, to receive IR signal send by corresponding IR remote. ④...

  • Page 8: System Diagram

    Step1. Connect HDMI/DVI sources (e.g. DVD) to HDMI input ports of the VL120002 with HDMI cables. Step2. Connect VGA sources (e.g. DV Camera) to VGA input ports of the VL120002 with VGA cables. Step3. Connect sources to the AUDIO input ports of the VL120002 with audio cables.
  • Page 9 If the last displayed signal is still available, VL120002 will output the signal. If not, the unit will detect all the inputs signals with priority from HDMI1 to VGA2. When detected the first signal, it will transfer to output.

  • Page 10: Rs232 Control

    Compact Scaler Switcher 6x1 when it detects that HDMI2 is available, it will choose HDMI2 to output.  Cut off the power of VL120002, then reboot. As VL120002 is in auto-switching mode, it will choose HDMI2 to output. 4.2 RS232 Control Here we take the software CommWatch.exe as example.

  • Page 11: Rs232 Communication Commands

    Compact Scaler Switcher 6x1 Monitoring area, indicates whether the command sent works. Command Sending area Please set the parameters of COM number, bound rate, data bit, stop bit and the parity bit correctly, only then will you be able to send command in Command Sending Area. 4.2.3 RS232 Communication Commands Baud rate: 9600 Data bit: 8...
  • Page 12 Compact Scaler Switcher 6x1 50619% Change the resolution to 1360X 768 Resolution: 1360x768 Change the resolution to1920X1200 50620% Resolution: 1920x1200 WUXGA Change the resolution to 1024X768 50626% Resolution: 1024x768 Change the resolution to 1280X720 50627% Resolution: 1280x720 720P Change the resolution to 1280X800 50628% Resolution: 1280x800 WXGA...
  • Page 13 Compact Scaler Switcher 6x1 Embedded Audio Output: 50649% Disable HDMI embedded audio output disable Auto-adjust the input parameter for 50606% VGA Input Auto (VGA only) Check the system version Version Vx.x.x 50699% 50697% Exit standby mode Wake up! 50797% Enter standby mode Go to standby! 50698% Software update...
  • Page 14 Compact Scaler Switcher 6x1 50631% Check the input source Input: xx 50632% Check the output resolution Resolution: xx 50633% Check the image mode Picture Mode: xx 50634% Check the audio mode Sound Mode: xx 50635% Check the image aspect ratio Aspect Ratio: xx 50636% Check the brightness...
  • Page 15 Step1. Copy the file ( the file must be named EDID.bin) to the root directory of a USB flash disk. Step2. Plug the USB flash disk to the VL120002 Firmware port on its rear panel. Step3. Send command 50769% to read EDID data from U flash disk, then, send...

  • Page 16: Ir Control

    Sure the file is copied to the root directory for normal use. The “MERGE.bin file Is provided/authorized. Step2. Plug the USB flash disk to the VL120002 FIRMWARE port on its rear panel. Step3. Press the button “RESOLUTION/FW UPDATE” for 7 seconds or more to update the firmware automatically.

  • Page 17: Specification

    W347 x H28 x D110 mm Weight 0.63Kg (W*H*D) Reference Temperature 0℃ ~ 50℃ 10% ~ 90% Humidity Transmit 4Kx2K≤15m Distance Note: VL120002 supports 4k&1080p 3D HDMI signal, please adopt quality HDMI cables compliant with HDMI1.4 for reliable transmission when connecting...
  • Page 18 Compact Scaler Switcher 6x1...

  • Page 19: Panel Drawing

    Compact Scaler Switcher 6x1 Supported Input Resolutions Format Resolution 800x600@60Hz, 800x600@72Hz, 800x600@75Hz, 1024x768@42Hz, 1024x768@60Hz, 1024x768@70Hz, 1024x768@75Hz, 1024x768@85Hz, 1152x864@75Hz, 1280x768@60Hz, 1280x768@75Hz, 1280x768@85Hz, 1280x960@60Hz, 1280x960@85Hz, 1280x1024@60Hz, 1280x1024@75Hz, 1280x1024@85Hz, 1365x1024@60Hz, 1365x1024@60Hz, HDMI/DVI 1600x1024@60Hz, 1600x1200@60Hz, 1600x1200@65Hz, 1600x1200@70Hz, 1600x1200@75Hz, 1600x1200@85Hz, 1680x1050@60Hz, 1792x1344@60Hz, 1856x1392@60Hz, 1856x1392@75Hz, 1920x1080@60Hz, 1920x1200@60Hz, 1920x1440@60Hz, 3840x2160@24Hz, 3840x2160@30Hz, 3840x2160@25Hz, 4096x2160@24Hz, 4096x2160@25Hz, 4096x2160@30Hz,...

  • Page 20: Troubleshooting & Maintenance

    Compact Scaler Switcher 6x1 7. Troubleshooting & Maintenance Problems Causes Solutions Fail connection of power Make sure the power cord Power LED dosen’t cord connection is normal work or no response to Power adapter dosen’t Please replace the power any operation suitable adapter with factory default No output image on...

  • Page 21: After-Sales Service

    Compact Scaler Switcher 6x1 8. After-sales Service If there appear some problems when running the device, please check and deal with the problems reference to this user manual. 1) Product Limited Warranty: EET warrants that its products will be free from defects in materials and workmanship for three years, which starts from the first day the product leaves warehouse (check the SN mark on the product).
