Using an External Diskette Drive

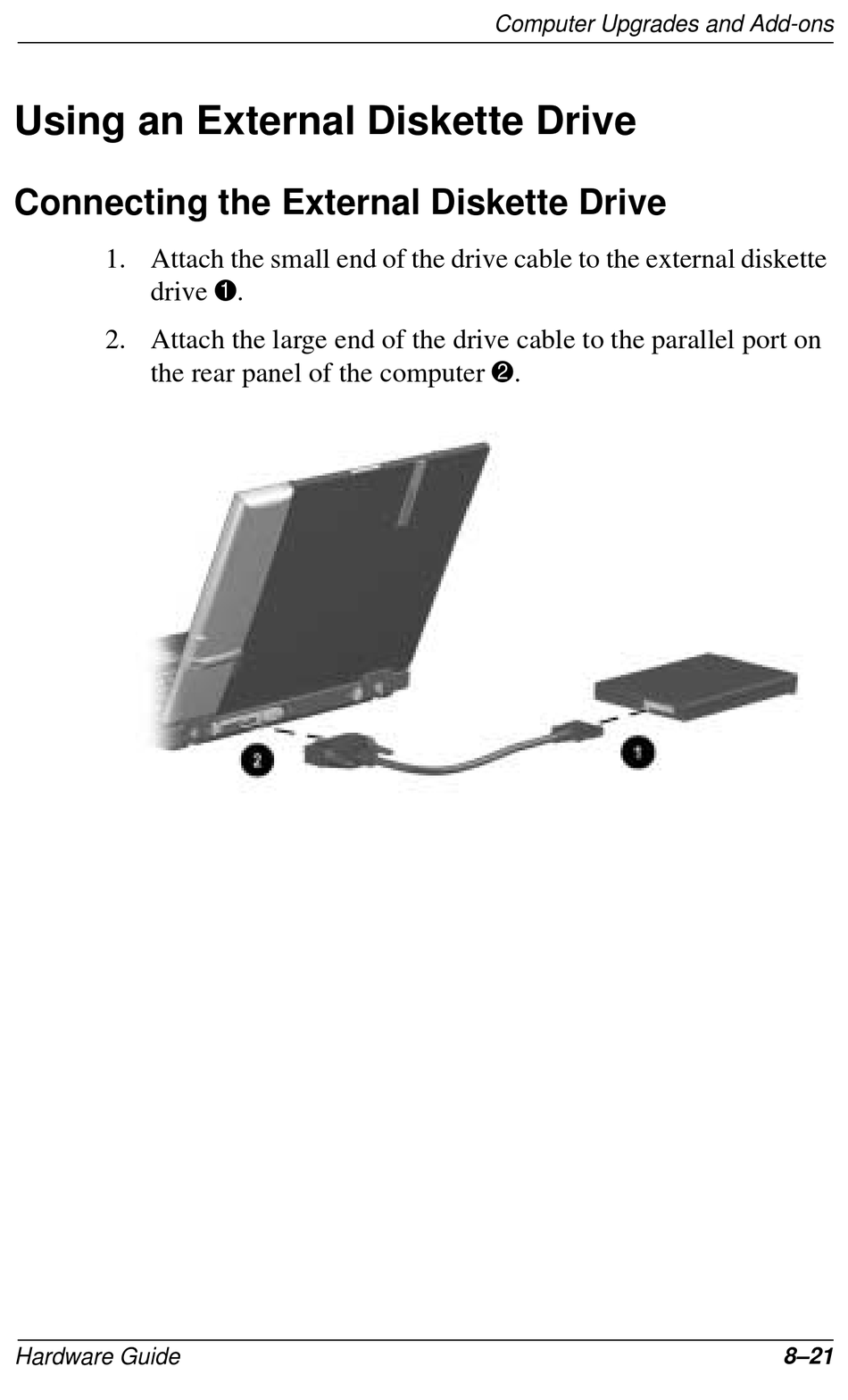

Connecting the External Diskette Drive

1. Attach the small end of the drive cable to the external diskette
drive 1.
2. Attach the large end of the drive cable to the parallel port on
the rear panel of the computer 2.
Hardware Guide
Computer Upgrades and Add-ons
8–21
