4. USB Host port: It is used to transfer data when external USB equipment
connects to the oscilloscope regarded as "host device". For example: Saving
the waveform to USB flash disk needs to use this port.
5. LAN port: the network port which can be used to connect with PC.
6. Connector for the DC power source via an AC-DC adapter
Top Panel
User Interface Introduction
32
31
30
29
28
27
26

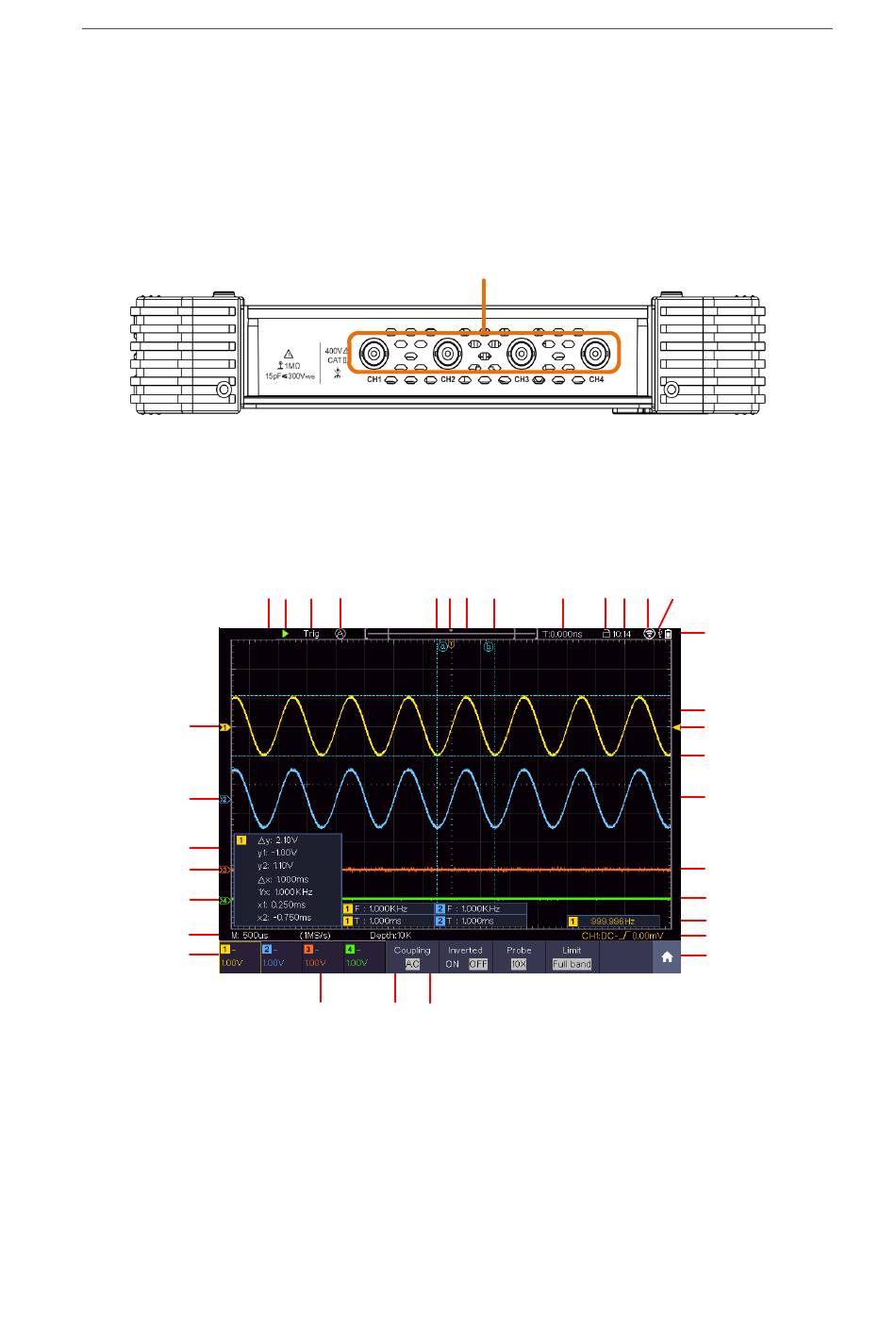

Figure 3-4 Illustrative Drawing of Display Interfaces
1. Waveform Display Area.
2. Run/Stop (touchable) (see "Use Executive Buttons" on P97)
3. The state of trigger, including:
Auto: Automatic mode and acquire waveform without triggering.
Trig: Trigger detected and acquire waveform.
Ready: Pre-triggered data captured and ready for a trigger. Click the
Multicomp-Pro
Input connectors of four channels
Figure 3-3 Top Panel
1
3
4
5
2
25
24
23
6
7
5
8
9
7
10
11
12
13
14
15
16
17
18
19
20
21
22
